Delta High Performance Preformed Units

Verified by manufacturer 4 months ago

Delta Membrane Systems Ltd

High performance polymeric material, high frequency welded to form any profile.

Jump to:
+44 (0)1992 523523 Website

Application

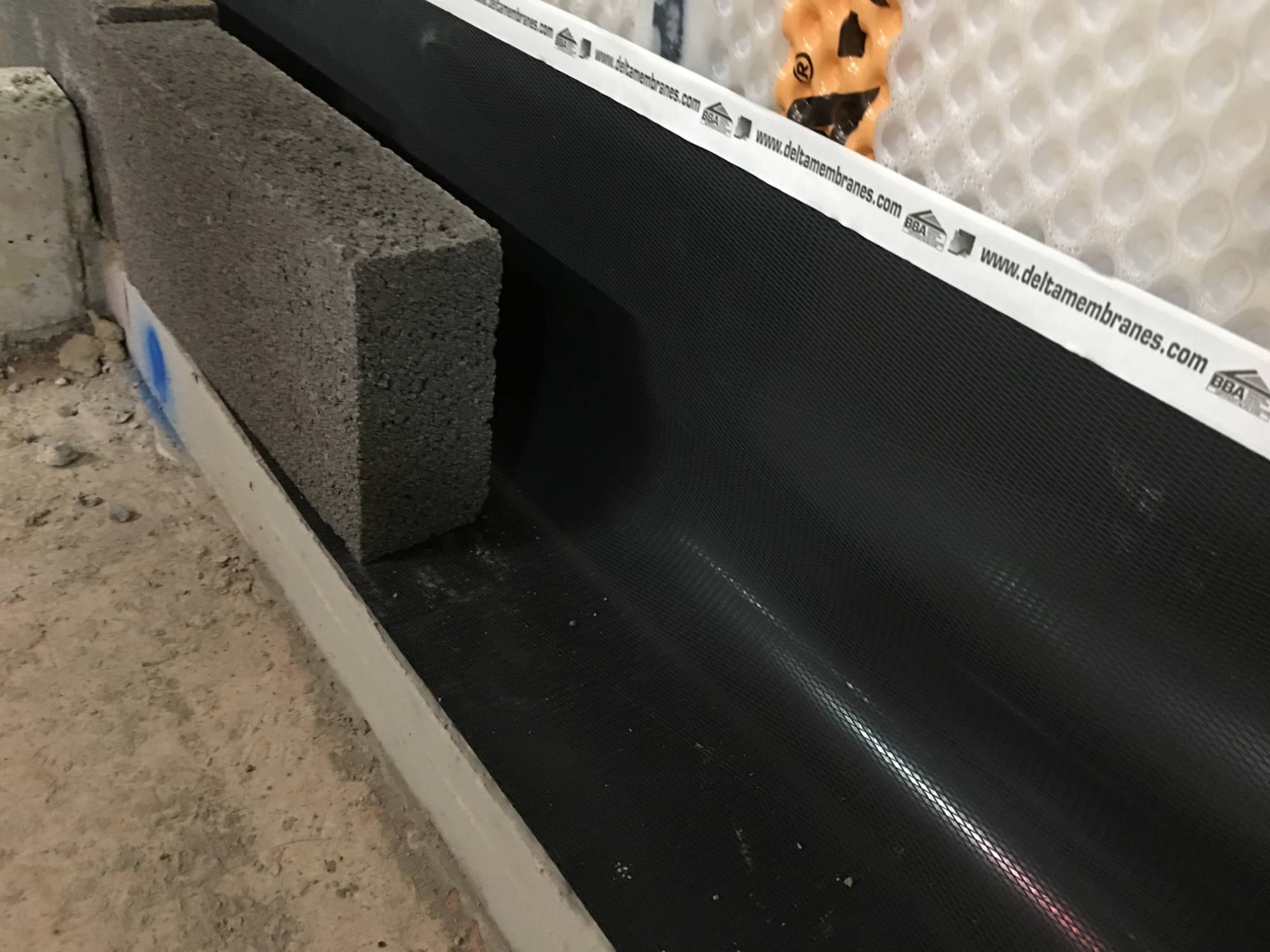

They provide a complete solution for cavity tray systems and can be used as transition units between membrane systems either above or below ground.

Description

Delta Preformed Units are manufactured from a high performance polymeric material and are high frequency welded to form any profile.


They include a range of standard profiles such a corners, stop ends, changes of level, top hats and special designs in any shape or profile that may be required. Preformed units are also available to include detailing at intersections between below ground tanking systems and pipe penetration details.


The units provide a simple solution to complex detailing and are fully compatible with all membrane systems satisfying the requirements to current British Standards.

General information

Color

Black

Material

Polymeric

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_25_57_21_66 Preformed cavity traysPrimary

CAWS

F30/380 Junction cloaks/ stop ends for preformed dpcs/ cavity trays

F30/385 Junction cloaks/ stop ends for preformed dpcs/ cavity trays

F30/56 Preformed cavity trays

Specification data - Preformed cavity trays

Material

Polymeric.

Profile

Corner.

Stepped.

Stop end.

Top hat.

As drawing ___.

Standard

-

Manufacturer guidance

Fully compatible with all membrane systems satisfying the requirements to current British Standards.

Sustainability data

Contains Red List materials

No

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %
