Delta Ultra Control VCL - Vapour Control Layer
Verified by manufacturer 4 months ago

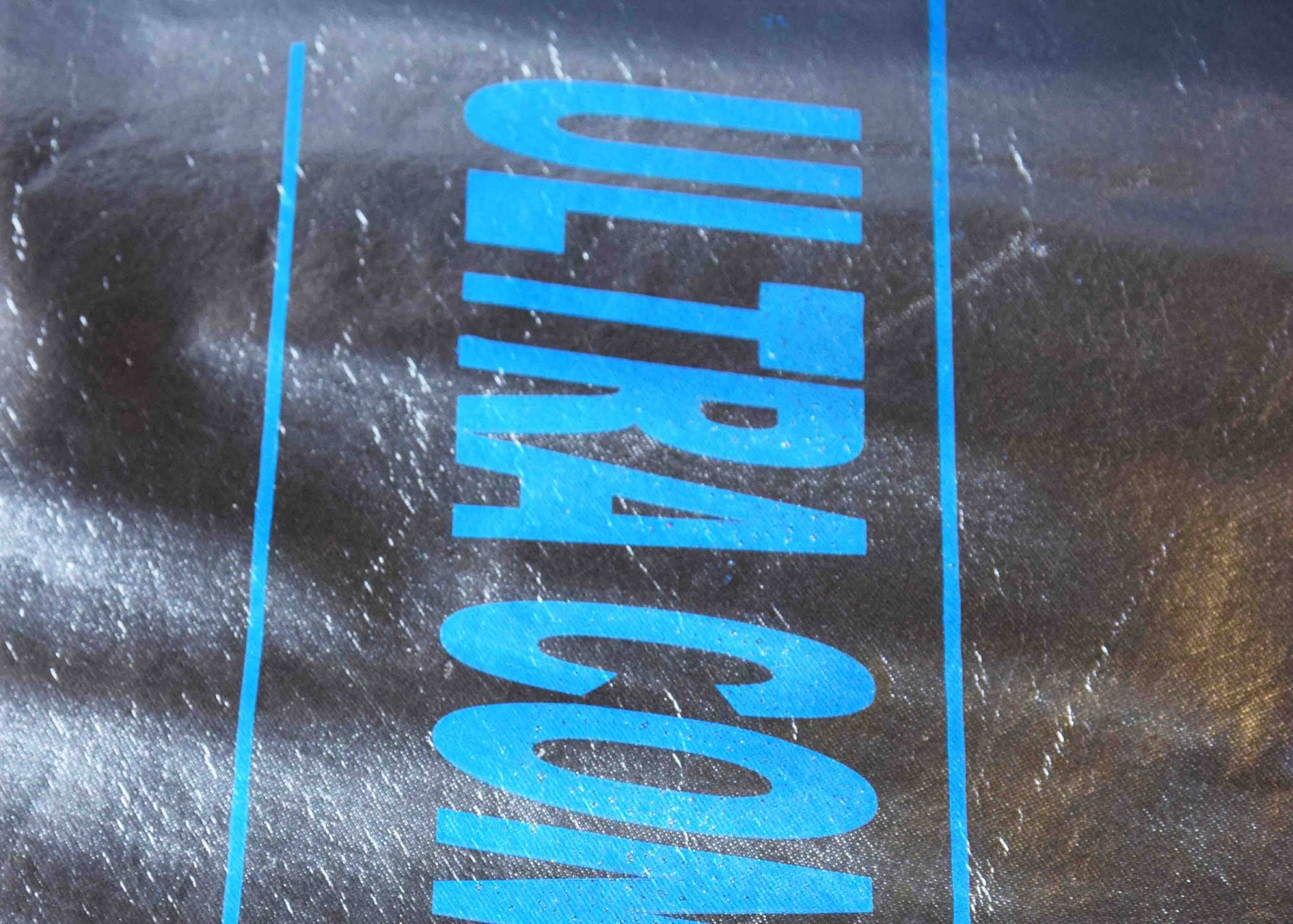

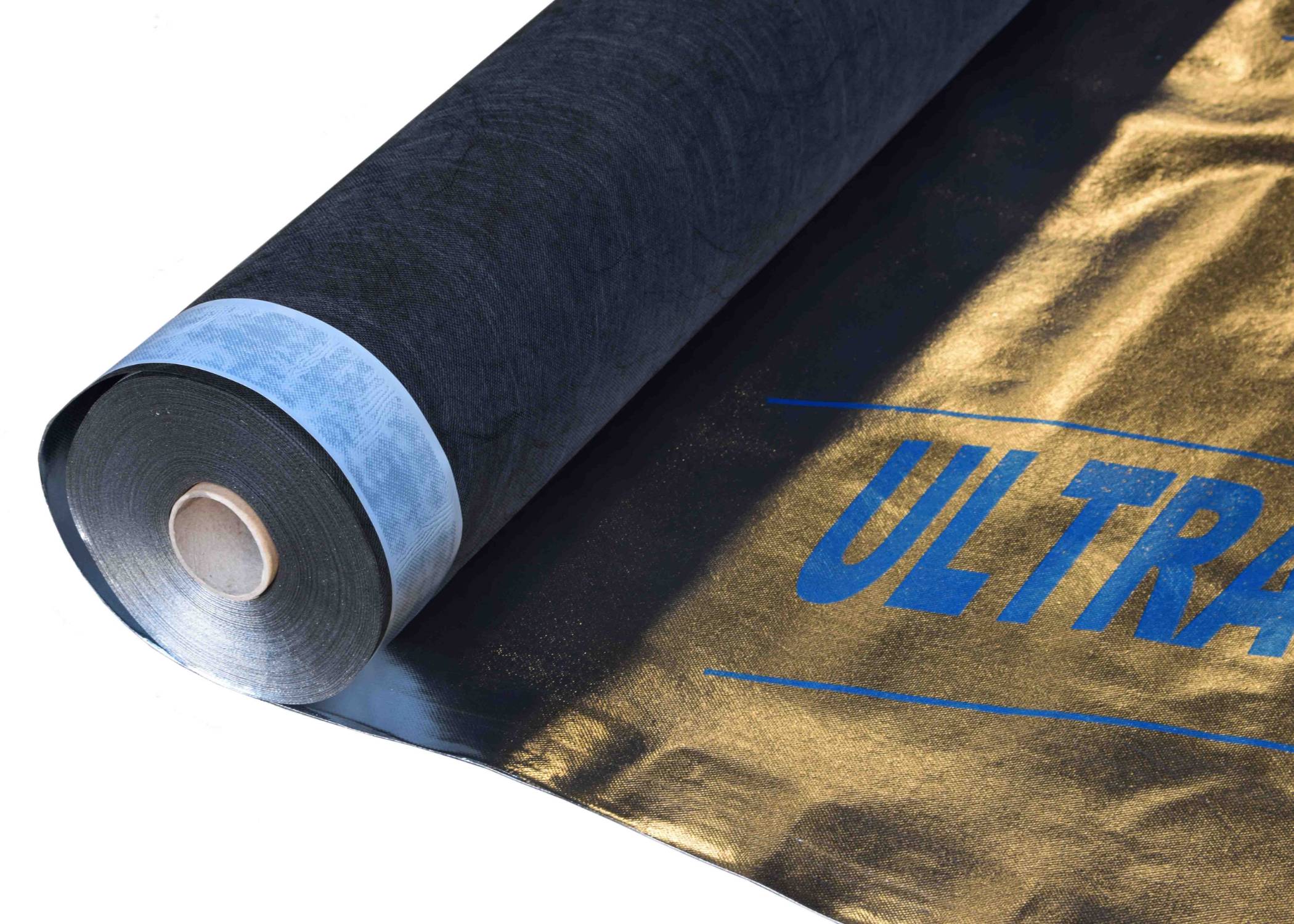

Highly reflective air and vapour control layer (AVCL)
Application
Suitable for timber, masonry or steel construction.
Description
A highly reflective air and vapour control layer (AVCL), offers low emissivity to enhance thermal performance of
walls, ceilings and floors.
Features and benefits:
- Strong insulating properties.
- Delivers an airtight system with sealed laps.
- Helps avoid condensation risk in accordance with BS 5250:2011+A:2016.
- Excellent nail tear resistance.
- High tensile strength, tough and durable.
- low emissivity reflective surface.
- Enhances thermal performance of the structure when used in a still air cavity.
- Easy to cut and lightweight to handle.
- Available with integrated tape to seal overlaps to ensure radiant heat is reflected back into the structure, minimising absorption and energy transfer.
- Class 1 surface spread of flame to BS 476-7: 1997 fire test on building materials and structures. Method of test to determine the classification of the surface spread of flame of products.
- Thermal resistance: 0.78m²K/W heat flow horizontal to EN ISO 8990.
- Emissivity of the surface (0.02³) unaged to BS EN 15976.
- Emissivity of the surface (0.03³) aged to BS EN 15976.
- Resistance to water penetration to BS EN 1928 with mods Class W1.
General information
Length | 50000 mm |
Width | 1500 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | J31/30 Laying air and vapour control layer J31/330 Air and vapour control layer |
Specification data - Plastics sheets
Performance characteristics | |
Tensile strength (minimum) | N/50 mm to EN 12311-1. |
Tear resistance | to EN 12310-1 with mods 160N (MD along roll) 160N (CD across roll). |
Water vapour resistance (minimum) | 589 MN·s/g to EN 1931. |
Fire performance | Class 1 surface spread of flame to BS 476-7: 1997. |
Physical properties | |
Weight (minimum) | 150 g/m². |
Dimensions | |
Width (minimum) | 1.5 m. |
Roll length (minimum) | 50 m. |
HeatingAirFlowRate | Horizontal. Guidance for specification option: >20mm Airspace - 0.78m²K/W. Upwards. Guidance for specification option: >13mm Airspace - 0.53m²K/W. Downwards. Guidance for specification option: 50mm Airspace - 1.53m²K/W. |
Sustainability data
Contains Red List materials | No |
Recyclability | No |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
