Door Closer - 200.300.024.7201.FC.SQ.SSS.CE - Overhead Door Closer

Verified by manufacturer 7 months ago

TS72V

3v Architectural Hardware Ltd Variant:
Third party certifications:
  • Warringtonfire

    Warringtonfire

    Certificate type

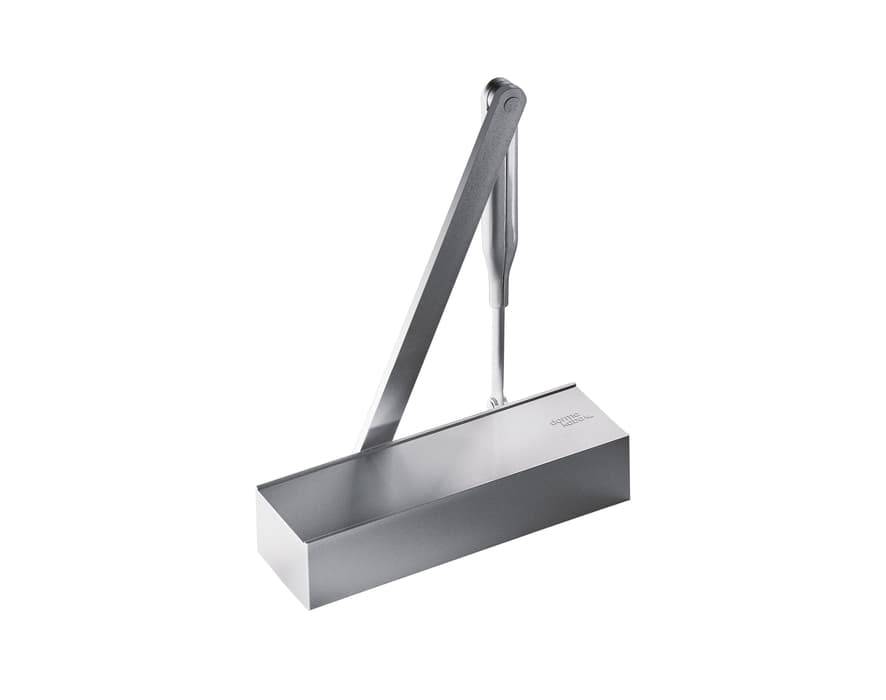

Multi-purpose scissor arm door closer.

Jump to:
+44 (0)1344 623600 Website

Application

Suitable for standard, internal doors up to 1100 mm wide, including fire doors.

Description

Multi-purpose door closer for all standard door designs and constructions.


Without a backplate, it is particularly easy and quick to fix. The spring strength can be individually adapted to the door size by means of an allen key ensuring optimum performance.


Features and benefits:

  • Universal fitting.
  • Reliable closing with adjustable latching action (by arm). Closing speed adjustable in the ranges 180–15° and 15–0°.
  • For door widths up to 1100 mm.
  • For single and double-leaf doors.
  • Adjustable closing force EN 2–4.
  • Optimum closing speed adjustment with two regulating valves.
  • Simple and quick to fix.

General information

Color

Silver

Gold

Other

Finish

Polished

Stainless steel

Brass

Satin

Coated

Material

Aluminium

Stainless steel

Shape

Rectangle

Length

232 mm

Width

45 mm

Height

68 mm

Warranty description

Ten year

Uniclass

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/12 Controlled door closers

P21/410 Controlled door closers

Specification data - Controlled door closers

Standard

To BS EN 1154.

Classification grades (minimum)

-

Door closer power size

2.

3.

4.

Manufacturer guidance

A variable option depending on door width.

Form

Overhead, face-fixed.

Closer functions

Latching.

Mechanical hold-open.

Materials and finishes

-

Casings

Silver.

Gold.

Polished stainless steel.

Satin stainless steel.

Polished brass.

Colour

Self-finished.

Colour-coated.

Guidance for specification option:

Insert colour. Consult manufacturer for details.

Mounting

Door leaf fixing, pull-side.

Transom fixing, push-side.

Parallel-arm fixing, push-side.

Accessories

Not required.

Hold-open arm.

Guidance for specification option:

Not suitable for fire doors.

Allows door to be held open at precisely the correct angle (up to approximately 150°).

Mounting backplate.

Guidance for specification option:

For fixing to doors on which the closer cannot be directly installed.

Upstand hinge plate.

Guidance for specification option:

For fixing the arm to particularly narrow door frames.

Fire classification

Certifire Approved, CF 268.

Third-party certification

To ISO 9001.

Weight

1.2 kg.

Force

EN 2 for doors up to 850 mm wide.

EN 3 for doors up to 950 mm wide.

EN 4 for doors up to 1100 mm wide.

Manufacturer guidance

With parallel-arm fixing, the max closing force is approximately 20 nm (for doors up to 950 mm).

Integral accessories

Standard arm and fixing bracket for parallel-arm assembly.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.01 kg CO₂ eq/unit

Self declared

Recyclability

Can be recycled

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

Warringtonfire

Warringtonfire

Certificate of Approval CF 268
