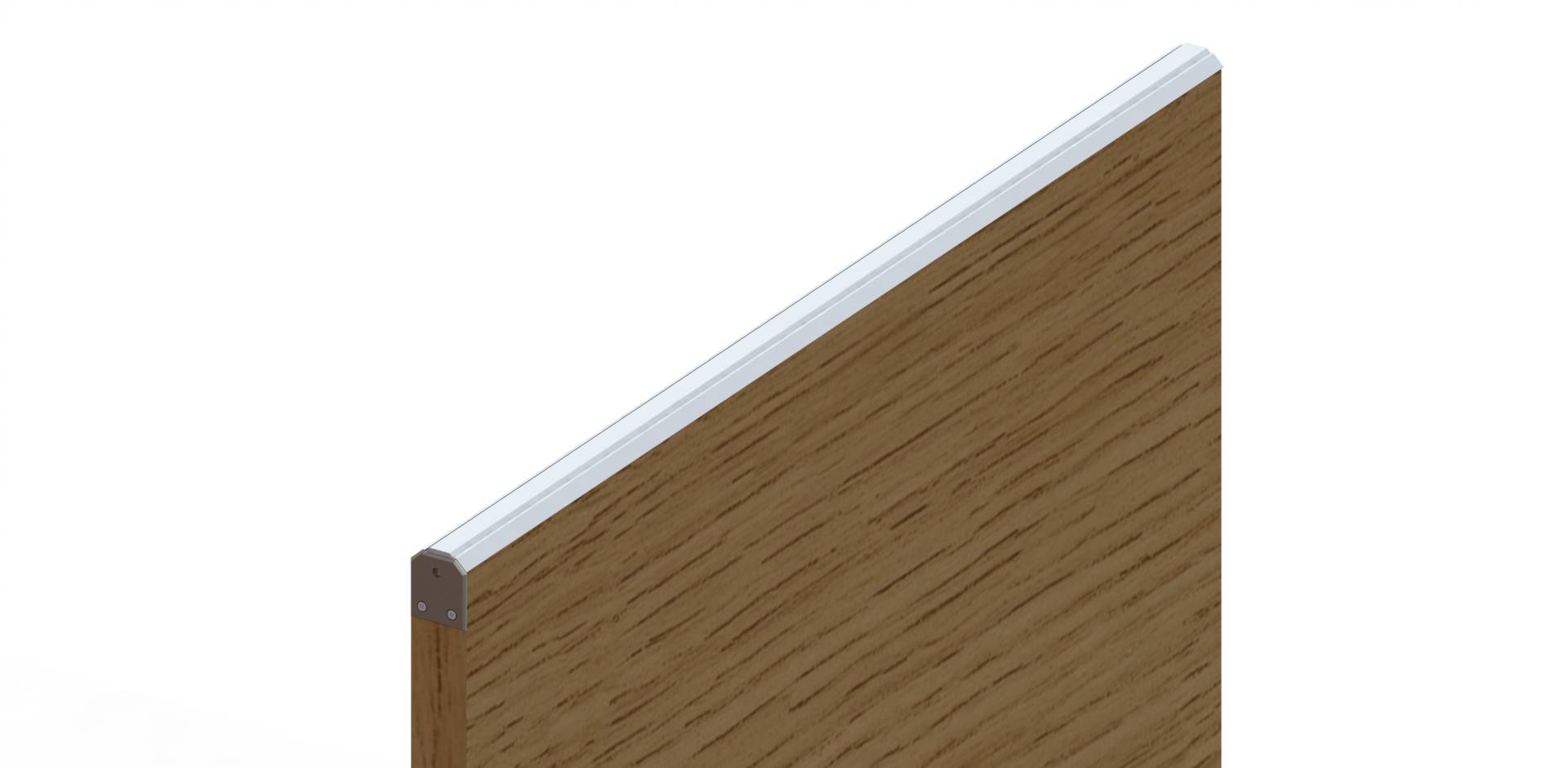

Door Top Alarm

Verified by manufacturer 1 month ago

DTA-01-AA-44

Intastop Ltd Variant:

Door top alarm which helps prevent suicide at the tops of doors.

Jump to:
+44 (0) 1302 364 666 Website

Application

Door top alarm which helps prevent suicide at the tops of doors.

Description

Tamper proof system detects when weight is applied to the top of the door and has a variable alarmed delay setting between 5 and 30 seconds. The Door Top Alarm connects via mains power and is compatible with most staff attack systems. It can alert staff via audible alarm, visible light, staff indicator panel and via the pager or main computer.

If the top of the alarm is pressed nothing will happen until the programmed delay setting in the electronic box is activated. It has a three-tiered LED system on the door top alarm which is mirrored on the electronic body and optionally on nurse stations. LED lighting shows it working without setting the alarm off, helping with risk assessment period checks. LED is not visible to patients. An inspection magnet is used to aid installation and carry out risk assessments. The electronic box is housed in ceilings/ lofts and connects to the mains power and staff attack system. Power transfer to the door goes via Intastop’s Electrical Transfer Hinge which ensures all cabling and electronics are concealed.

Performance tested to 1.25 million cycles; it has a removable option, where the hinge is designed to be installed in two sections. This allows the current carrying cable to be serviced or replaced without removing the door from the frame.


Features:

  • Fire tested to BS 476-20 and -22 for 30 minutes.
  • Programmed electronics box with delay setting options.
  • Connects to existing staff attack system.
  • Suitable for both single and double acting hinges.
  • Suitable for refurbishment and new build.
  • Suitable for 44 and 54 mm door thicknesses.


Benefits:

  • Helps prevent suicide at the top of doors.
  • Can be used across a multiple of applications including bedroom and bathroom doors.
  • Enables staff to respond immediately to attempted suicides and emergency situations.
  • Tamper proof preventing false alarms.


Disclaimer: Please note that Intastop offers a range of measures designed to reduce the risk of self-harm or suicide, and does not offer any guarantee that it will not take place. The solutions have been designed as a deterrent only.


All products must be installed and maintained as per Intastop’s fitting instructions and/ or the operation and maintenance manual. Operation and Maintenance Manual is available upon request.

General information

Finish

Satin

Material

Aluminium

Guidance for specification option:

Plastic alarm box.

Length

Bespoke

Warranty description

Guidance for specification option:

Annual maintenance contract available at extra cost.

Uniclass

Ss_75_40_75_40 Intrusion and hold-up alarm systemsPrimary

CAWS

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/480 Doorsets

L20/55 Doorsets

Product range

Alarms

Specification data - Intrusion and hold-up alarm systems

Length

Guidance for specification option:

Up to 950 mm; insert requirements.

Colour

Guidance for specification option:

Insert requirements. Colour coating to any RAL number and wood effect options also available; consult manufacturer for details.

Components

Door Top Alarm Electrical Control Box.

Guidance for specification option:

DTA-ECB.

Door Top Alarm Inspection Magnet.

Guidance for specification option:

DTA-MAGNET.

Anti-Ligature Aluminium Domed Cap.

Guidance for specification option:

HAL-DC-SAA.

Full Mortice Electrical Transfer Hinge with smoke seal - four wire.

Guidance for specification option:

HFM-EM.

Double Swing Electrical Transfer Hinge with smoke seal - four wire.

Guidance for specification option:

HDS-01-EM.

Width

-

Manufacturer guidance

To suit 44 mm width door.

Finishes

Satin anodized aluminium (SAA).
