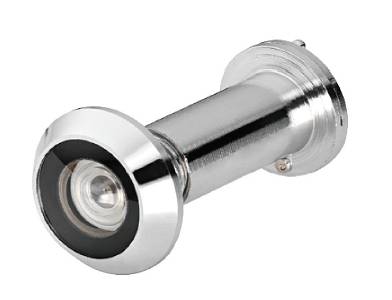

Door Viewer FD60 (HUKP-0105-05) - Door accessories

Verified by manufacturer 1 month ago

Hafele UK Ltd

Door Viewer with glass lens and cover.

Jump to:
+44 (0)800 171 2907 Website

Application

Fire-rated door viewer.

Description

Door viewer with glass lens and cover.


Features and benefits:

  • Viewing angle: 200°.
  • Suitable for door thickness 50–70 mm (54 mm-thick for FD60 applications).
  • Push fit.
  • Manufactured from glass and solid brass as standard.
  • Tested to BS EN 1634-1 for use on timber door sets.
  • Warrington Fire WF Test report 331560/H Issue 2.

General information

Color

Black

Bronze

Silver

Gold

Finish

Matt

Satin

Polished

Material

Brass

Glass

Warranty description

Ten year

Uniclass

Pr_30_36_33_76 Security viewersPrimary

CAWS

P21/890 Door viewers

P21/64 Door viewers

L20/430 Wood doorsets

L20/420 Wood doorsets

L20/410 Wood doorsets

L20/280 Doors

L20/270 Wood doors

L20/250 Wood panelled doors

L20/230 Wood flush doors

L20/55 Doorsets

L20/30 Wood doors

L20/25 Wood panelled doors

L20/20 Wood flush doors

Specification data - Security viewers

Angle of vision

200°.

Fire resistance (minimum)

60 minutes.

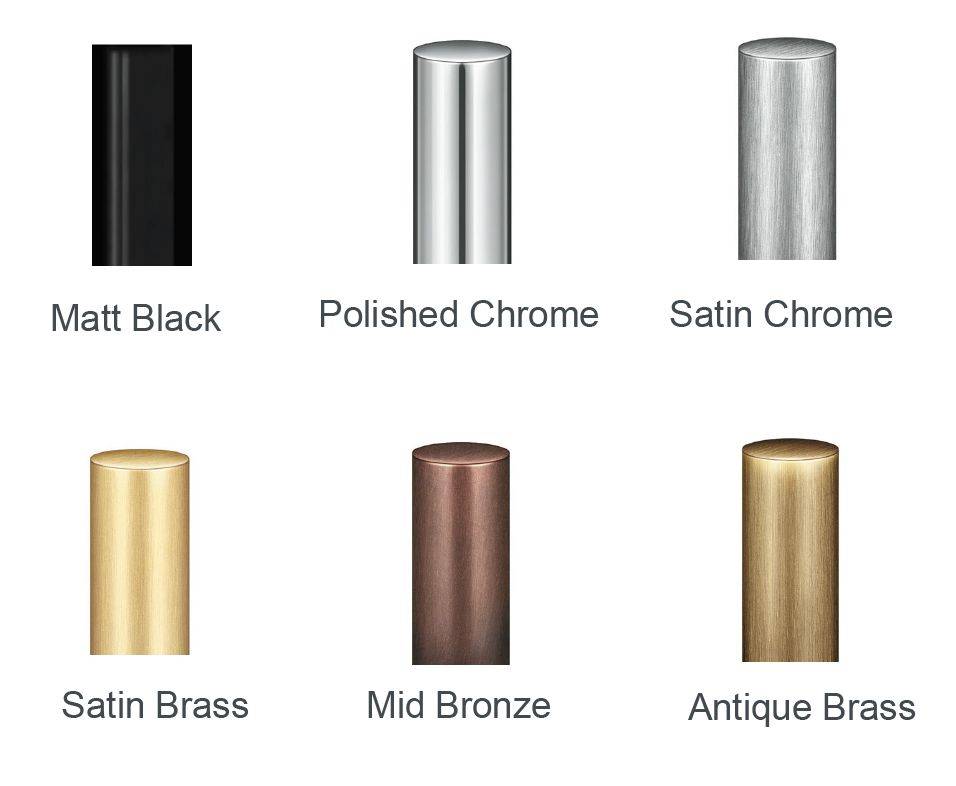

Material and finish

Solid brass, matt black finish.

Solid brass, polished chrome finish.

Solid brass, satin chrome finish.

Solid brass, satin brass finish.

Solid brass, mid bronze finish.

Solid brass, antique brass finish.

Viewer body diameter

14 mm.

Door thickness

50–70 mm.

Guidance for specification option:

54 mm for FD60 rated doors.

Execution

Push fit.
