Double Action Pivot Sets - Door accessories

Verified by manufacturer 6 days ago

Hafele UK Ltd

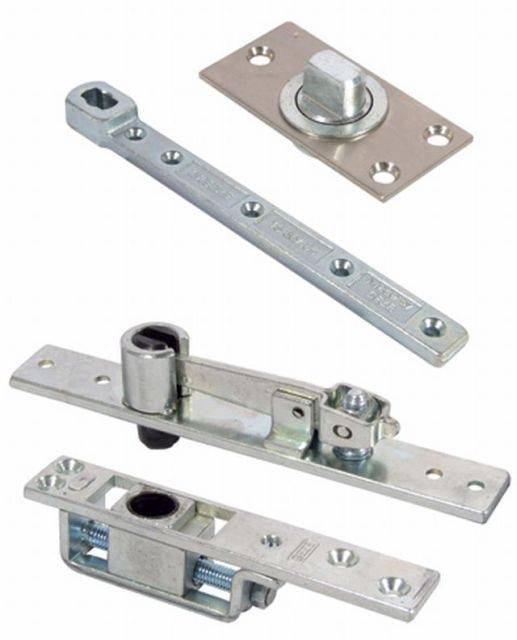

Floor and frame mounted pivot sets.

Jump to:
+44 (0)800 171 2907 Website

Application

Door hinges suitable for double pivot doors in domestic and commercial buildings.

Description

Floor and frame mounted pivot sets that allow doors to swing in either direction.

General information

Color

Silver

Finish

Galvanized

Material

Steel

Shape

Rectangle

Uniclass

Pr_30_36_36_17 Cranked hingesPrimary

CAWS

P21/320 Door hinges

P21/8 Door hinges

Specification data - Cranked hinges

Product Reference

Double Action Pivot Sets

Type

932.10.760.

Guidance for specification option:

Floor mounted.

  • Door weight (maximum): 150 kg.
  • Pivot plate: 90 x 44 mm.
  • Cover plate: Stainless steel.

932.10.761.

Guidance for specification option:

Floor mounted.

  • Door weight (maximum): 250 kg.
  • Pivot plate: 75 x 70 mm.
  • Cover plate: Stainless steel.

932.87.030.

Guidance for specification option:

Frame or floor mounted.

  • Door thickness (minimum): 44 mm.
  • Door width when jamb mounted (maximum): 1100 mm.
  • Door weight when floor mounted (maximum): 80 kg.
  • Material: Satin stainless steel.

932.87.057.

Guidance for specification option:

Frame or floor mounted.
