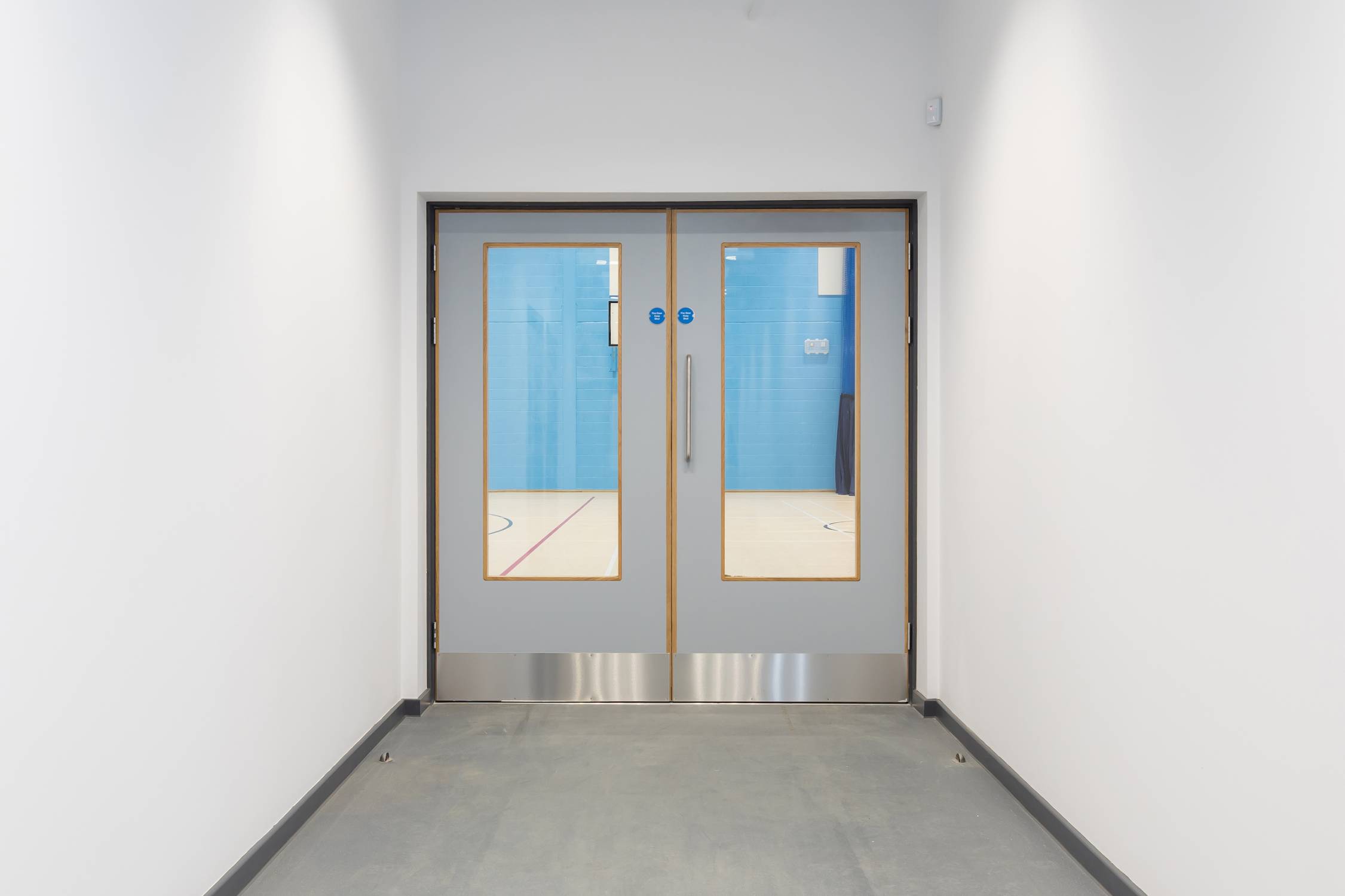

Double Door, FD30, With Vision Panel

Verified by manufacturer 2 months ago

Dorplan Third party certifications:
  • Certificate of Approval

    Certificate of Approval

    Certificate type

  • FSC

    FSC

    Certificate type

  • UKAS

    UKAS

    Certificate type

Internal wooden, FD30 double doorset available with a veneer, laminate, primed finish or factory-finished. With Vision Panel.

Jump to:
BOS
 +44 (0)1366 386800 Website

Application

FD30 double doorset suitable for a wide variety of projects from residential through to commercial and education.

Description

Internal wooden, FD30 double doorset which is manufactured to exceptional accuracy and produced to both standard and bespoke sizes to fit the intended aperture. Single PuraDor doorsets come pre-hung in the frames as standard which greatly reduces installation time on site, saving time and money.


Features and benefits:

  • Fire rated for 30 minutes.

General information

Color

Beige

Black

Bronze

Blue

Brown

Show more

Finish

Veneered

Laminated

Primed

Painted

Material

Medium density fibreboard (MDF)

Wood

Shape

Rectangle

Width

1926 mm

Guidance for specification option:

Door leaf: 926 mm

Height

2083 mm

Guidance for specification option:

Door leaf: 2040 mm

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/55 Doorsets

L20/420 Wood doorsets

Specification data - Wood doorsets

Configuration

Double-leaf, single-action.

Doorset size

1926 x 2083 mm.

Manufacturer guidance

Bespoke sizes also available, consult manufacturer for details and insert requirements.

Performance

-

Fire resistance

-

Integrity

FD30.

Frame

-

Material

Paintgrade Softwood (Square Loose Stop).

Guidance for specification option:

  • Frame - Door Head 32 x 120 mm.
  • Frame - Door Legs L/R 32 x 120 / 32 x 120 mm.
  • Frame - Screen/Panel 32 x 120 mm.


Finish

Primed ready for site finish.

Door leaf

-

Thickness

44 mm.

Facings

Wood veneer.

Laminate.

Species

-

Manufacturer guidance

A wide range of veneers (including pre-dyed veneers and stained finishes) are available to suit design requirements. However, alternatives can be sourced upon request.


Veneers can be matched in different ways to achieve a variety of effects as shown below.

  • Book match: Veneers are mirrored to give a symmetrical effect.
  • Quarter: Veneers are mirrored and turned to give an effect radiating from a central point.
  • Slip: Leaves are laid side by side to give a gradually-varying repeat pattern.


Consult manufacturer for details and insert requirements.

Cut

Quarter cut veneer.

Crown cut veneer.

Lippings

Lipped four edges concealed, hardwood.

Finish

Pre primed facing.

Glazing

-

Type

7 mm Pyrobelite (FD30) - 3(B).

Beading

-

Type

Flush Beading Detail.

Bolection Beading Detail.

Manufacturer guidance

There are two main types of beading for vision panels: bolection and flush. Beading is supplied in hardwood species, with a finish to complement the door. For a fire door, intumescent are installed between the glass and the door.

Hardware

Hardware Set LL.

Guidance for specification option:

  • Stainless steel ball bearing hinge 102 x 76 mm grade 13 with radius corners.
  • Lever handle 19 mm diameter on sprung rose.
  • Euro profile escutcheon.
  • Euro profile cylinder mortice sashlock case 72 mm centres with radiused forends.
  • Euro profile cylinder and thumb turn 70 mm length with 2 keys keyed to differ.

Hardware Set LL.D.

Guidance for specification option:

  • Stainless steel ball bearing hinge 102 x 76 mm grade 13 with radius corners.
  • Lever handle 19 mm diameter on sprung rose.
  • Euro profile escutcheon.
  • Euro profile cylinder mortice sashlock case 72 mm centres with radiused forends.
  • Euro profile cylinder and thumb turn 70 mm length with 2 keys keyed to differ.
  • Flush bolt 203 x 20 mm with radiused forends.
  • Easy clean socket.

Hardware Set PP.

Guidance for specification option:

  • Stainless steel ball bearing hinge 102 x 76 mm grade 13 with radius corners.
  •  Architectural overhead door closer - power size 2–5 with back check and delayed action (compliant with DDA recommendations).
  • Finger plate 350 x 85 mm with radiused corners drilled and countersunk with screw.
  • Pull handle 300 x 19 mm with bolt through fixings.

Hardware Set PP.D.

Guidance for specification option:

  • Stainless steel ball bearing hinge 102 x 76 mm grade 13 with radius corners.
  •  Architectural overhead door closer - power size 2–5 with back check and delayed action (compliant with DDA recommendations).
  • Finger plate 350 x 85 mm with radiused corners drilled and countersunk with screw.
  • Pull handle 300 x 19 mm with bolt through fixings.

Hardware Set RIS.

Guidance for specification option:

  • Stainless steel ball bearing hinge 102 x 76 mm grade 13 with radius corners.
  • Euro profile cylinder pull.
  • Euro profile cylinder mortice deadlock case with radiused forends.
  • Euro profile single cylinder 45 mm length with2 keys keyed to differ.

Hardware Set RIS.D.

Guidance for specification option:

  • Stainless steel ball bearing hinge 102 x 76 mm grade 13 with radius corners.
  • Euro profile cylinder pull.
  • Euro profile cylinder mortice deadlock case with radiused forends.
  • Euro profile single cylinder 45 mm length with2 keys keyed to differ.
  •  Flush bolt 203 x 20 mm with radiused forends.
  •  Easy clean socket.

Hardware Set WC.

Guidance for specification option:

  • Stainless steel ball bearing hinge 102 x 76 mm grade 13 with radius corners.
  •  Lever handle 19 mm diameter on sprung rose.
  •  WC thumb turn with indicator and emergency release.
  • Mortice bathroom lock case 78 mm centres with radiused forends.
  • WC symbol 76 mm diameter.
  •  Hat and coat hook.

Manufacturer guidance

Ironmongery sets are available in the following finishes, please consult the manufacturer for details and insert requirement:


Satin SS, bronze, matt black, polish SS, satin brass.

Architraves

-

Material

Medium density fibreboard, square, 44 x 18 mm.

Finish

Primed ready for site finish.

Vision panel

DVP1a.

DVP1b.

DVP2.

DVP3a.

DVP3b.

Show more

Manufacturer guidance

Vision panels can help to increase visibility, distribute light and enhance design. In certain locations, such as entrances, they are a legal requirement with defined minimum sizes.


Vision panels in entrance doors:

These are governed by the Government’s Building Regulations Approved Doucment M (Access to buildings) and K (Protection from falling, collision and impact). Consult the manufacturer and their literature for details on minimum requirements.


The manufacturer's most popular vision panel styles are shown here but they can make panels to any size and shape. For fire and sound-rated doors there may be some restrictions but we will guide you through the requirements to make sure these are maintained.

Screen panel

-

Manufacturer guidance

Bespoke panels over or to the side of a door can be seamlessly integrated. They may be filled with glass or designer panels to complement styling of the door or room.


The manufacturer will advise on how to incorporate these to maintain fire and acoustic ratings.


Consult the manufacturer for further details and insert requirements.

Sustainability data

Material

Medium density fibreboard (MDF)

Wood

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
 -

2

IFC
 -

2

Third party certifications

Certificate of Approval

Certificate of Approval

Certifier - CAF 5051

FSC

FSC

FSC - CERTIFICATE OF REGISTRATION

UKAS

UKAS

Q-Mark Fire Door Manufacture
