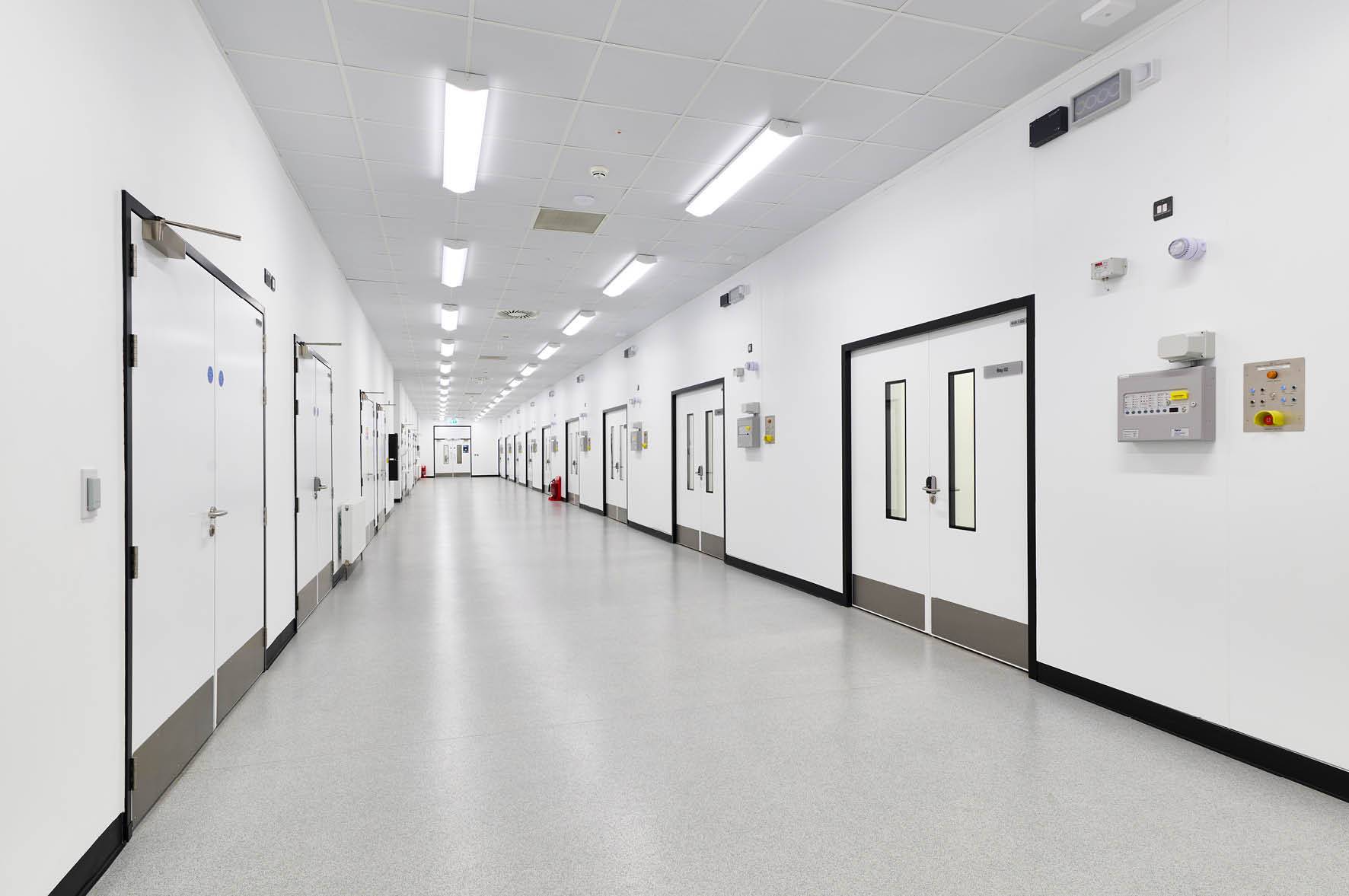

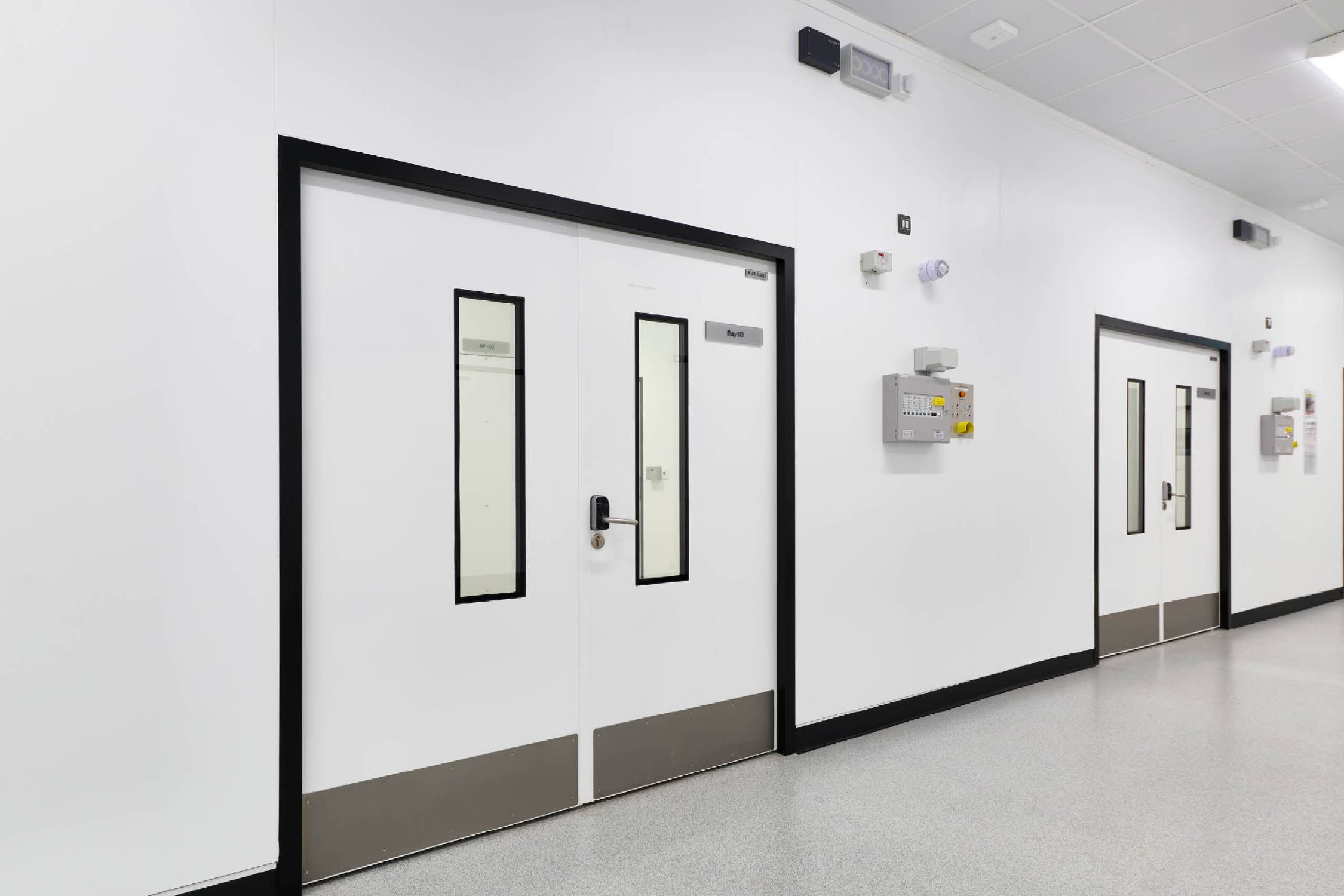

Double Door - Steel Doorset System
Verified by manufacturer 8 months ago
Bespoke steel double door set system, with a non-ferrous option available.
Application
Suitable for use with various types of walling. Fully flush, they are suitable for a wide range of cleanrooms, laboratories and other controlled environments, meeting the stringent industry standards, including cGMP, MHRA and FDA requirements.
Description
Norwood’s double door set has been designed for various applications, including fire doors, security doors, personnel, and acoustic door set options. Fully flush, they are suitable for a wide range of cleanrooms, laboratories and other controlled environments, meeting the stringent industry standards, including cGMP, MHRA and FDA requirements.
Norwood doors utilize a 1.2 mm gauge mild steel for the leaf and 1.5 mm gauge mild steel for the frame, on completion, both are factory finished in a high quality RAL/ BS exterior grade polyester coating, applied at 18-20 µm dry film thickness over 4-6 µm of epoxy anti-corrosive prime. The gloss level will be 35% ±5% depending on substrate interaction.
Features and benefits:
- The door width, height and frame thickness are bespoke to each project and the customers’ requirements.
- Ironmongery is applied prior to delivery to site to reduce installation and programme, there are various ironmongery packages available, but Norwood can manufacture to meet the customers specification.
- Non Fire Rated and 60 min Fire Rated option available.
- Vision Panels Fully flush double glazed units with either 6.4mm laminated glass or 6mm toughened glass.
- Door Set Options: Norwood doors as standard are mild steel powder coated; however, we can provide Stainless Steel, GRP, Glass and Timber doors.
- Non-ferrous door sets available, utilising aluminium and stainless steel fixings.
- Our products are delivered to site prefabricated, minimising site disruption, improving construction programmes and diminishing health and safety risks.
General information
Color | White Guidance for specification option: Standard colour is RAL9003. Other Guidance for specification option: Various colours available, contact manufacturer for more details. Clear Beige Black |
Finish | Powder-coated Guidance for specification option: Polyester. |
Material | Steel |
Shape | Rectangle Square |
Length | Bespoke |
Width | 2000 mm Guidance for specification option: Standard. Bespoke Guidance for specification option: The product can be manufactured in various sizes to suit user requirements. |
Height | 2100 mm Guidance for specification option: Standard. Bespoke Guidance for specification option: The product can be manufactured in various sizes to suit user requirements. |
Warranty description | One year |
Uniclass | |
CAWS | B12/350 Internal doors H11/135 Doors B12/25 Internal doors L20/45 Doors L20/60 Doors H13/760 Doors L20/280 Doors |
Specification data - Carbon steel doorsets
Third-party certification | Accredited to ADSA.Guidance for specification option: Automatic Door Suppliers Association (ADSA) and has in-house certified installers. |
Configuration | Double leaf, single action.Other.Guidance for specification option: Can be manufactured to suit user requirements. |
Doorset size | 2000 x 2100 mm.Guidance for specification option: Standard size. Other.Guidance for specification option: Various sizes available, manufactured to suit user requirements. |
Performance | |
Fire resistance | |
Integrity | 60 minutes. |
Insulation | None. |
Radiation | Not required.Lead lined option.Guidance for specification option: Available on request. |
Smoke leakage | Smoke seals. |
Reaction to fire | Manufacturer's standard.Manufacturer guidanceSpread of Flame. |
Acoustic performance | Rw 28 dB.Guidance for specification option: Integrated drop down seals can be installed to improve acoustic ratings. |
Strength and durability | Manufacturer guidanceHeavy duty. |
Thermal | Guidance for specification option: TBC. |
Frame | |
Material | Steel.Guidance for specification option: Manufactured from 1.2mm or 1.5mm gauge steel depending on size of door. |
Threshold | Not required.Drop down seals.Guidance for specification option: Available on request. |
Perimeter seals or inserts | Smoke seals. |
Finish | |
Coating | Polyester powder coated. |
Colour | White, RAL9003.Guidance for specification option: Standard. Other.Guidance for specification option: Various colours available, contact manufacturer for more details. |
Frame accessories | Not required.Integrated maglocks.Integrated door closers. |
Door leaf | |
Thickness | 45 mm. |
Core | Cardboard.Aluminium honeycomb. |
Panel details | 1.2 mm Gauge steel. Cardboard core. Fully silicone sealed and welded.1.2 mm Gauge steel. Aluminium honeycomb core. Fully silicone sealed and welded. |
Material | Steel. |
Lippings | Not required.Astragals.Guidance for specification option: Available on request. |
Glazing | |
Type | Flush vision panels.Guidance for specification option: To various sizes to suit user requirements.
|
Manifestation | Not required.Required.Guidance for specification option: Options available, consult manufacturer and insert requirements. |
Finish | |
Coating | Polyester powder coated. |
External colour | White, RAL 9003.Guidance for specification option: Standard. Other.Guidance for specification option: Various colours available, contact manufacturer for more details. |
Internal colour | White, RAL 9003.Guidance for specification option: Standard. Other.Guidance for specification option: Various colours available, contact manufacturer for more details. |
Film thickness (minimum) | 18—20 micron dry film thickness over 4-6 microns of epoxy anti-corrosive prime. |
Door accessories | Not required.Automation. |
Hardware | Guidance for specification option: All options available - Manufactured to suit user requirements. |
Architraves | |
Material | Steel. |
Finish | Polyester powder coated. |
Colour | Manufacturer guidanceRAL or BS colour available, contact manufacturer for more details. |
Execution | Installing hardware. |
Fire resistance | To BS476-22. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Manufacturer guidanceMetals widely recycled. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 2 |
 Revit | - | 2 |
Case studies
cGMP Advanced Manufacturing Area for Orthoplastics
Compound Semiconductor Innovation Centre for CSA Catapult
Ray Dolby Centre for Cambridge University's Physics Department
The Compound Semiconductor Facility for IQE

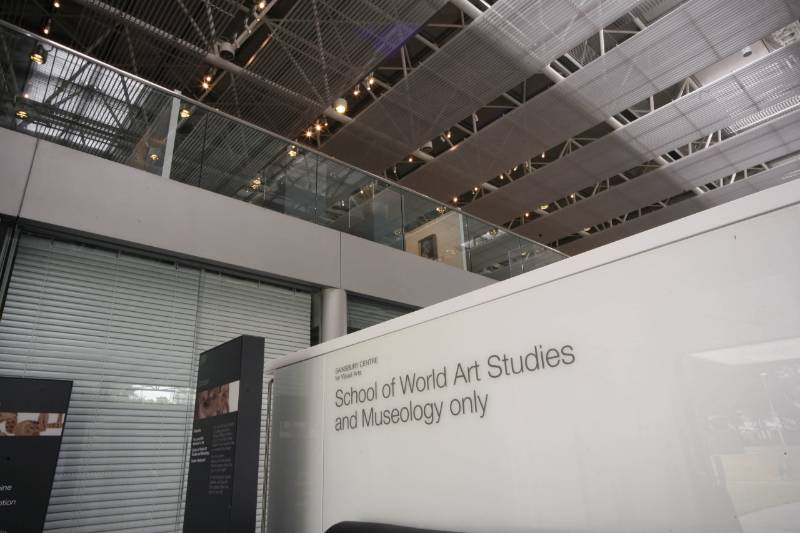

The Sainsbury Centre for Visual Arts
Glasgow Royal Infirmary University Tower for NHS
