DP680300 Dolphin Prestige Corner Shower Curtain Rail

Verified by manufacturer 4 months ago

DP680100 - 900 x 900 mm

Dolphin Solutions Variant:

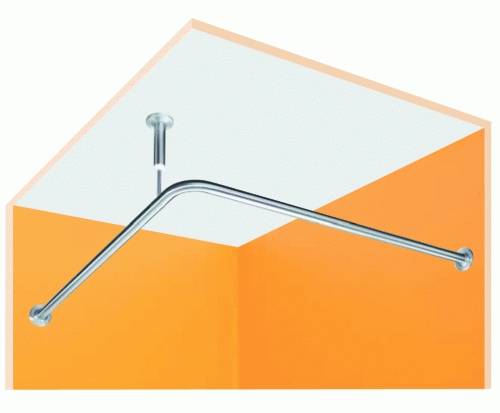

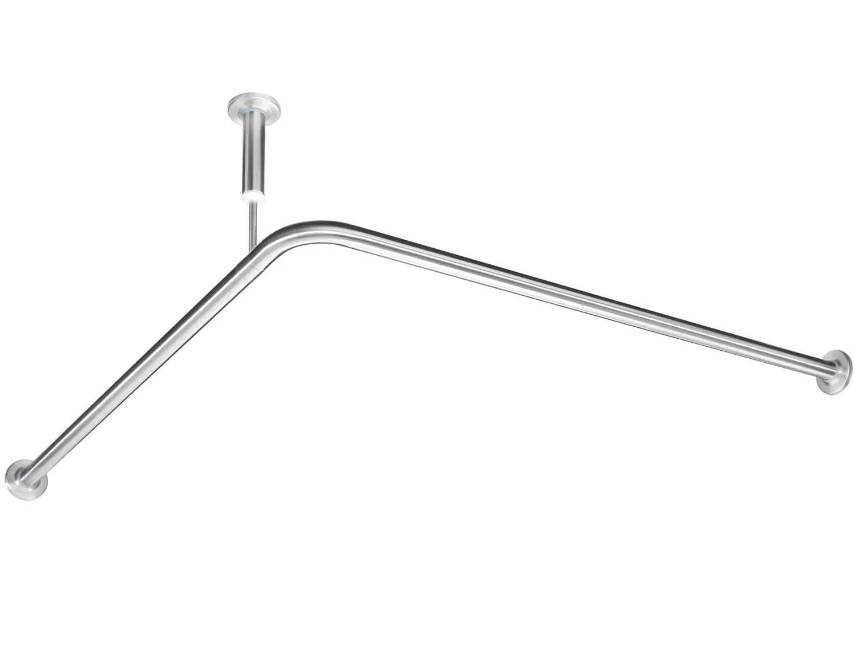

Stainless steel corner shower curtain rail with a satin or textured finish.

Jump to:
+44 (0)1424 202224 Website

Application

Suitable in shower areas to hold a shower curtain.

Description

Stainless steel corner shower curtain rail.


Features and benefits:

  • orner Shower Curtain Rail
  • Tubes are manufactured in a robust, easy to clean stainless steel, satin or textured finish
  • Ceiling stay included
  • DP680300 1200 x 1200 mm Satin stainless steel
  • LRV % of 50.48
  • All rails TUV certified in accordance with DIN EN 12182, and CE marked in accordance with 93/42 EEC
  • All rails capable of supporting up to 125kg
  • Bend radius of 75mm
  • Clearance from wall - 106mm
  • Wall mounting - Grab rails with 4-point mounting plate - Support rails with 6-point mounting plate; all mounting plates 4mm thick
  • Concealed fixings 75mm in diameter, anti-theft, with silicone sealing ring at tube join
  • Outer diameter of tubes 32mm for an ergonomic grip


General information

Color

Silver

Finish

Brushed

Textured

Material

Stainless steel

Shape

Other

Length

1200 mm

Width

1200 mm

Warranty description

One year

Uniclass

Pr_40_30_20_77 Shower curtain railsPrimary

CAWS

N10/60 Curtain supports

N10/230 Curtain supports

N13/40 Shower units

N13/375 Shower units

Specification data - Shower curtain rails

Form

Corner pole, ceiling and wall supported.

Materials

-

Body

Stainless steel.

Finish and colour

Satin.

Textured.

Size

900 x 900 mm.

MaximumSupportedWeight

125 kg.

Tube diameter

32 mm.

Guidance for specification option:

For an ergonomic grip.

Manufacturer guidance

Outer tube diameter.

BendRadius

75 mm.

Clearance

106 mm.

Manufacturer guidance

Clearance from wall.

Mounting

4 mm thick mounting plate.

Fixings

Concealed, 75 mm diameter.

Guidance for specification option:

Anti-theft, with silicone sealing ring at tube joint.

LRV

50.48%.

BIM objects

Platform Compatible Version
IFC
-

1

Revit
-

1
