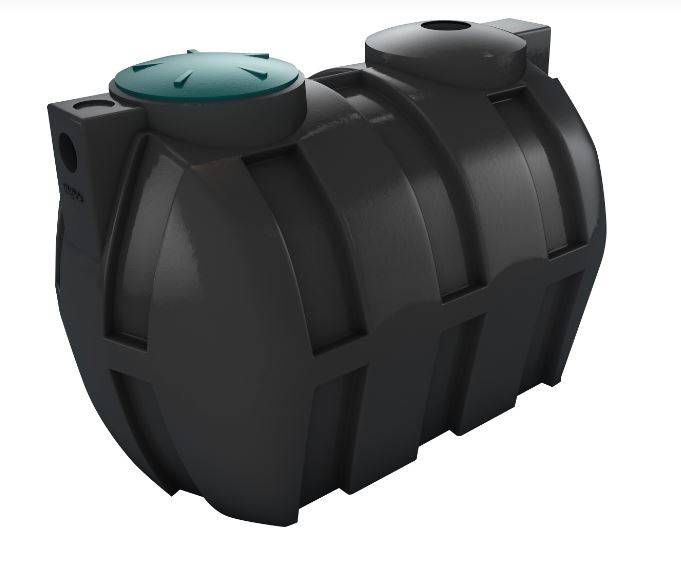

Drainage Premium Septic Tank

Verified by manufacturer 4 months ago

Andel Ltd

Septic tank and drainage system.

Jump to:
+44 (0)1484 845000 Website

Application

Wastewater treatment plants.

Description

Septic tank and drainage system that discharges the sewage into the soil depending on the number of inhabitants, water-ground conditions and the topography of the area.


It is the first stage of the preliminary (anaerobic) treatment inside the tank which consists of the separation of the light substances (oil, fat) from heavy ones which fall to the bottom of the tank, creating sediment.


Features and benefits:

  • Monolithic polyethylene tank without joints or welds.
  • 60% reduction in contaminants after first stage.
  • High durability and resistance to fluctuation of soil stress.
  • Low weight - no heavy assembly tools needed.
  • Extension shafts and covers with screw cap “twist” type.
  • Sold with cover PKO 600.
  • Tank equipped with basket which uses replaceable filtration cartridges.
  • Does not require an electrical power supply.
  • Technical approvals: AT/2012-08-0031/A3, AT/2012-08-0032/A4.


Recommended maintenance:

  • Flushing of filtration basket every 12 months.
  • Extracting sediment from the septic tank every 12 months.
  • Rinsing the drain with pressurized water to increase patency and extend the lifespan.
  • Regular use of biopreparations is recommended.

General information

Color

Black

Material

Polyethylene

Shape

Other

Warranty description

One year

Uniclass

Pr_70_55_76_64 Packaged septic tank unitsPrimary

CAWS

R17/320 Septic tank units

Specification data - Packaged septic tank units

Standard

To BS EN 12566-1.

Tank material

Polyethylene.

Capacity (minimum)

2000 L.

Guidance for specification option:

4 P.E.

3000 L.

Guidance for specification option:

6 P.E.

4000 L.

Guidance for specification option:

8 P.E.

5000 L.

Guidance for specification option:

10 P.E.

Connections

-

Inlet diameter

DN 160.

Outlet diameter

DN 110.

Vent pipes

-

Diameter (nominal)

DN 110.

Integral accessories

Extension shaft NSO 600.
Cover PKO 600.

Sustainability data

Material

Polyethylene

Literature

Premium Septic Tank Data Sheet

Premium Septic Tank Data Sheet
