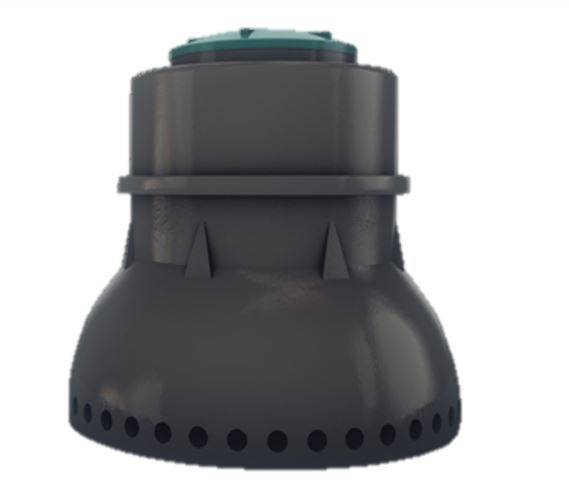

Drainage Soakaway Tank

Verified by manufacturer 4 months ago

Andel Ltd

Soakaway tank providing drainage of treated water or stormwater into the ground

Jump to:
+44 (0)1484 845000 Website

Application

Water drainage applications.

Description

Soakaway tank providing drainage of treated water or stormwater into the ground.


Soakaway tanks are valuable in stormwater and wastewater management, offering benefits such as controlling rainwater runoff to prevent flooding and soil erosion and easy disposal for treated wastewater.


The tank aids in groundwater recharge, replenishing vital water sources, and act as natural filters. As a key component of Sustainable Drainage Systems (SuDS), soakaway pits contribute to environmentally friendly water management.


Features and benefits:

  • Lightweight and strong.
  • Easy to transport.
  • Cheaper, easier and quicker to install compared to traditional glass reinforced plastic (GRP) constructions.
  • Environmentally beneficial.
  • Mitigates flooding and soil erosion.
  • Constructed from high-density polyethylene (HDPE).
  • Resistant to corrosion and frost.
  • The grating built into the lid, makes it suitable to assist with hard ground run off water dispersal into the ground to prevent yard flooding (concrete, tarmac or similar).


The application site requires a BRE-365 percolation test to ensure the ground stability. Various quantities of the soakaway tanks could be employed to disperse roof water, ground run off and any other stormwater issues as well as treated effluent being disposed of into the ground.

General information

Color

Black

Material

Polypropylene

Shape

Other

Height

1000 mm

Uniclass

Pr_60_50_96_65 Polypropylene (PP) tanksPrimary

CAWS

R12/460 Storage tanks

Specification data - Polypropylene (PP) tanks

Arrangement

Underground.

Accessories

356 mm grate (d4).

Guidance for specification option:

Top grate cover (365 x 365 mm).

InnerDiameter

1000 mm.

Guidance for specification option:

Inner diameter lower well.

OuterDiameter

1200 mm.

Guidance for specification option:

Outer diameter lower well.

Diameter

820 mm.

Guidance for specification option:

Upper well diameter.

Weight

28 kg.

Sustainability data

Material

Polypropylene

Literature

Drainage Soakaway Tank Data Sheet

Drainage Soakaway Tank Data Sheet
