Dreen®Nxt - Rooftop Paving and pedestal system

Verified by manufacturer 3 months ago

300 x 300 x 35 mm.

Zoontjens Variant:
Third party certifications:
  • Environmental Product Declaration

    Certificate type

Complete paving and pedestal system for any flat roof.

Jump to:
07435 963770 Website

Application

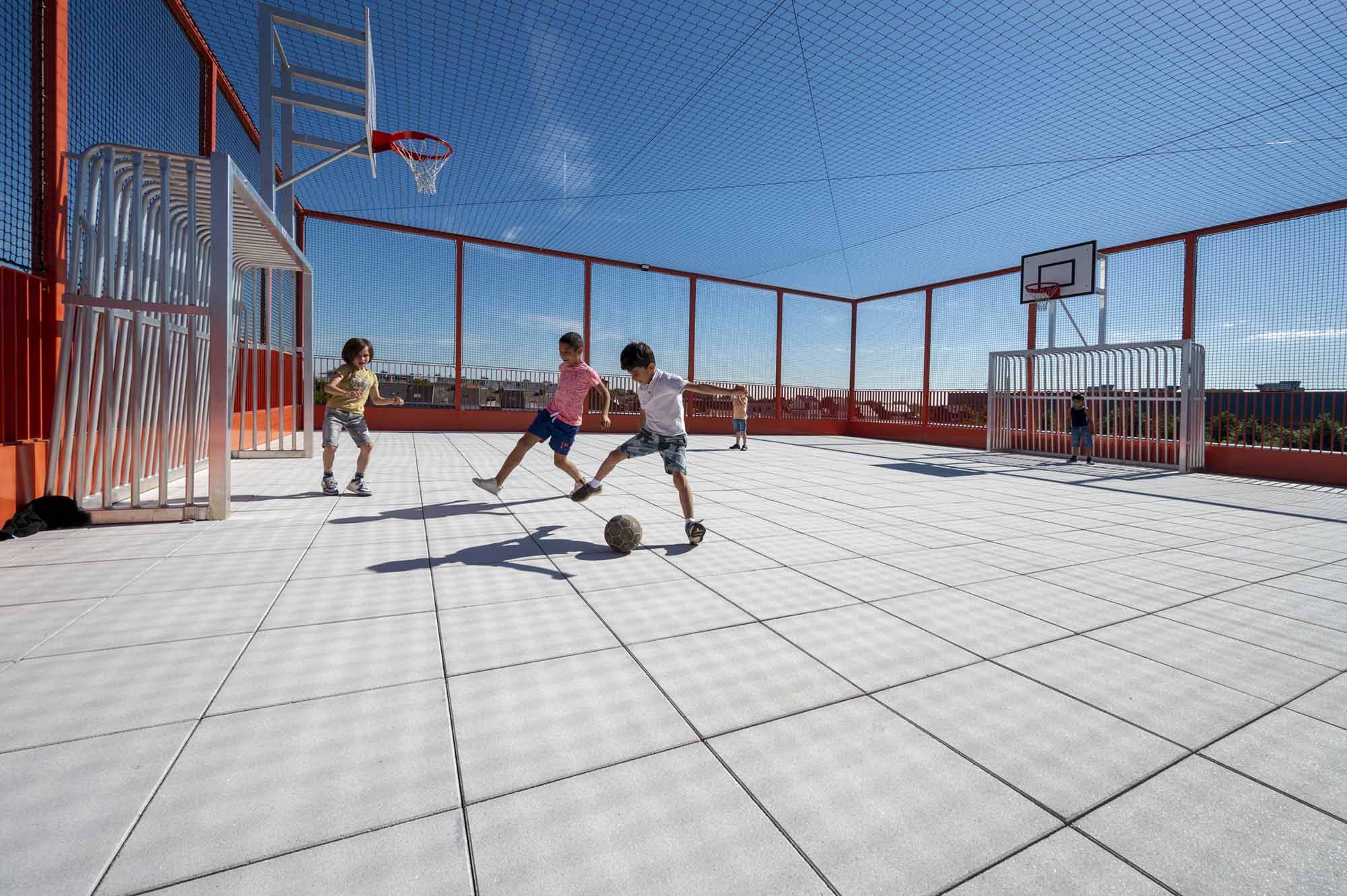

Suitable for rooftop and higher ground flat roof paving. From large to small and from light to heavy use. Including rooftop:

  • Terraces.
  • Pathways.
  • Gardens.
  • Courtyards.
  • Pitches.
  • Parks.
  • Podiums and Balconies.

Description

Dreen®Nxt is a rooftop paving system for flat roofs, made up from clean-lined concrete slabs and support system to guarantee a stable and durable rooftop terrace. It enables rooftop paving to be installed to any desired height, achieved using the adjustable pedestal system, both ensuring a level rooftop terrace.


The slab is available in a variety of formats and thicknesses, making it suitable for a wide range of applications. The Dreen®Nxt system offers a stable, high quality and safe flat level walking surface that matches seamlessly with its surroundings. A void is created below the slabs that can be used for concealing roof-mounted system, and through which water can drain. Overall, the support system combines aesthetic form and function.


Features and benefits:

  • Complete system.
  • Stable solution.
  • Easily maintained.
  • Adjustable heights.
  • Sustainable materials.
  • Lockable to resist lateral movement.
  • Adjustable system from 15 mm to 500 mm and above in 24 and 48 mm increments.
  • Adjustable slope capability.
  • Metal and plastic pedestal solutions.
  • Clear drainage path.
  • Can be used as a SUDs solution.
  • High recycled content.
  • High quality natural aggregate top layer.
  • 16 standard colourways and two surface textures.
  • Small bevelled edge creating a clean-lined look.

General information

Color

Black

Green

Grey

Orange

White

Show more

Finish

Anti-slip

Anti-skid

Textured

Other

Guidance for specification option:

Comfort.

Manufacturer guidance

NPD textured surface.

Material

Concrete

Metal

Plastic

Shape

Square

Rectangle

Length

300 mm

500 mm

600 mm

Width

300 mm

500 mm

400 mm

Height

35 mm

45 mm

60 mm

Uniclass

Ss_30_14_90_34 Flag and slab pedestal-supported paving systemsPrimary

CAWS

Q25/127 Pedestal supported paving slab/ flag system

Q25/480 Support pedestals

J42/467 Support system for precast concrete paving slabs

J21/85 Precast concrete paving slabs

J41/90 Precast concrete paving slabs

J21/465 Precast concrete paving slabs

J21/467 Support system for precast concrete paving slabs

J41/467 Support system for precast concrete paving slabs

Specification data - Flag and slab pedestal-supported paving systems

System performance

To BS EN 1339, ISO 09001 and ISO 14001.

Pedestals

Adjustable pedestals, A1 metal.

Guidance for specification option:

  • Adjustable base (50–74 mm), height (35–50 mm), height ring (48 mm), height ring (24 mm) and lockplate.
  • Heights between 15 mm and 500 mm+, insert requirements.

Adjustable pedestals, plastic.

Guidance for specification option:

  • Adjustable base (50–74 mm), height (35–50 mm), height ring (48 mm), height ring (24 mm) and lockplate.
  • Heights between 15 mm and 500 mm+, insert requirements.

Non-Adjustable pedestals, A1 metal.

Guidance for specification option:

(Suitable for BroofT4 situations).

Non-Adjustable pedestals, plastic.

Guidance for specification option:

Suitable for BroofT4 after the adjustable plastic.

Paving units

Concrete paving slabs.

Applied surface features

Slip/ skid-resistance, NPD.

Samples required

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Unit dimensions

300 x 300 x 35 mm.

Manufacturer guidance

Dimensions per unit.

Weight

7.1 kg (per slab); 78 kg/m².

Unit

11 /m².

Guidance for specification option:

92 per UK pack.

Manufacturer guidance

Number per m².

Reaction to fire

A1.

Breaking strength

>3.6 mpa.

Colour

Ginger.

Light Grey.

Mirabelle Yellow.

Apricot Orange.

Ocean Light.

Show more

Sustainability data

Country of material origin

Netherlands

Country of product manufacture

Netherlands

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

CO2 content:

  • 8 kg/m2.
  • <70% CO2 over normal cement products.

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

30 %

Manufacturer guidance

High recycled content.

Third party certifications

Third party certifications

Environmental Product Declaration

Environmental Product Declaration

EPD Dreen Nxt Comfort
