Drop Core Bollard - Demountable Heavy Duty Bollard

Verified by manufacturer 2 months ago

Brandsafe

Enhance safety with demountable steel bollard cores for easy removal, various cover kit colours, and reflective bands. Choose from various heavy duty options for diverse warehouse safety applications.

Jump to:
BOS
+44 (0)1525 850222 Website

Application

Suitable Drop Core Bollard applications:

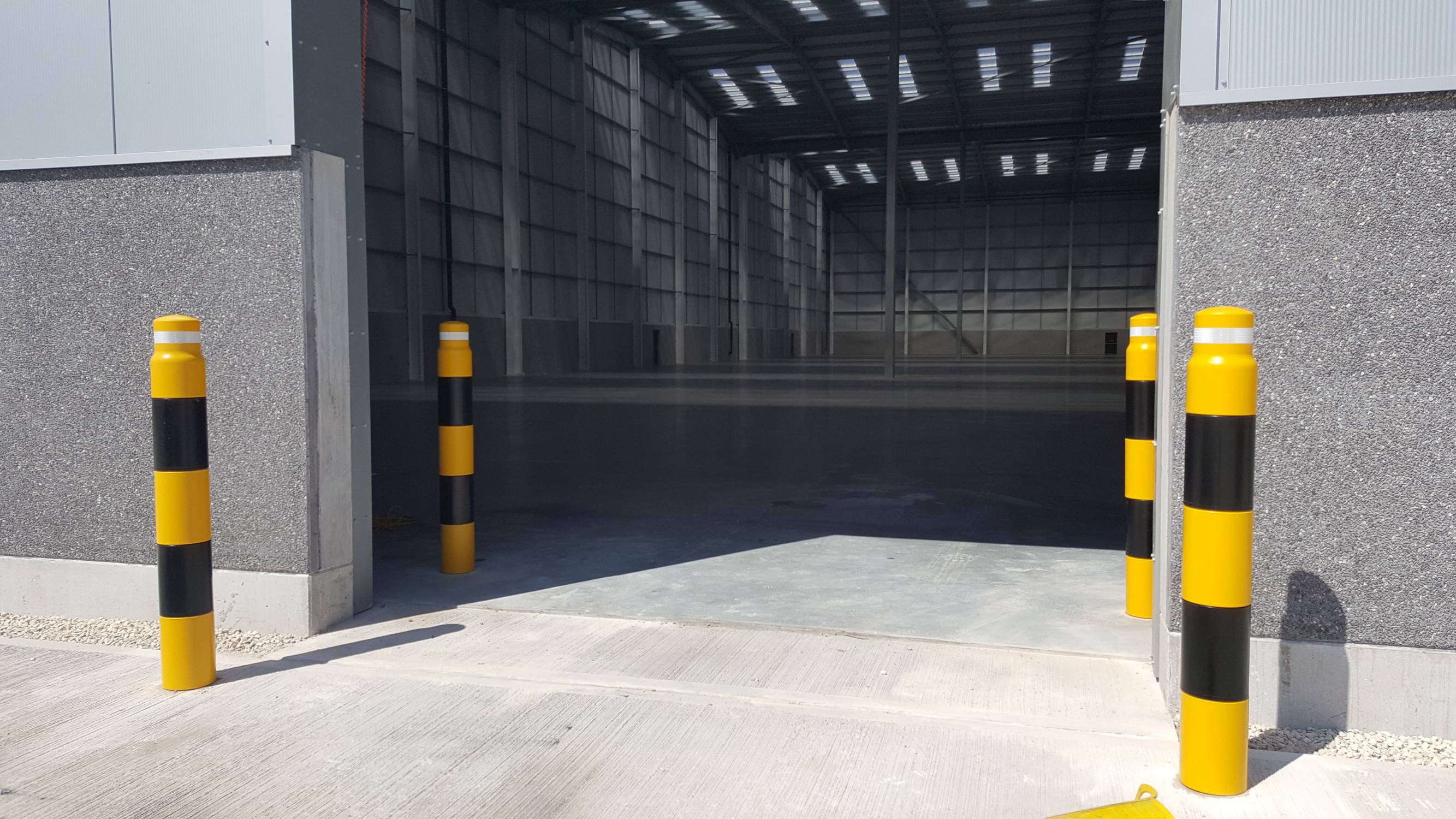

  1. Enhance safety near external loading docks with reflective bollards for optimal visibility.
  2. Secure pedestrian walkways in high traffic warehouses, promoting employee safety.
  3. Safeguard building corners and columns, preserving their integrity from potential collisions.
  4. Mark fire escape routes using the Green/White bollard option for heightened commercial building safety.
  5. Ensure caution areas are unmistakable with the Black/Yellow or Yellow/Black bollard options, enhancing risk warning effectiveness.

Description

Drop Core Bollard - Enhance safety with demountable steel bollard cores for easy removal, various cover kit colours, and reflective bands. Choose from various heavy duty options for diverse warehouse safety applications.


Features and Benefits:

  • Incorporates cast-in steel floor socket for superior bollard strength.
  • Demountable steel bollard cores for simple removal and reinstallation.
  • Eliminates the costly excavation and casting process of a potted bollard system.
  • Various bollard cover kit colours, including a 50 mm reflective band for night visibility.
  • Finished with Polymer Bollard Cover Kits, no ongoing paint maintenance required.
  • Heavy Duty Bollard: 168 mm diameter steel bollard core, 210 mm overall, 1260 mm height.
  • Super Duty Bollard: 219 mm diameter steel bollard core, 260 mm overall, 1560 mm height.
  • Required Socket Depth 200mm x Diameter 200mm


Drop Core Bollards are available in a range of standard colours:

  • Green/White (Fire Escape Rooms)
  • Red/White (High Warning Areas)
  • Black/Yellow (Caution Areas)
  • Yellow/Black (Caution Areas)
  • Yellow (Caution Areas)

General information

Color

Green

White

Red

Yellow

Black

Finish

Reflective

Material

Polymer

Steel

Shape

Other

Length

210 mm

Width

210 mm

Height

1260 mm

Uniclass

Pr_20_76_08_10 Carbon steel bollardsPrimary

CAWS

Q50/31 Bollards

Q50/190 Bollards

Specification data - Carbon steel bollards

Duty

Heavy.

Dimensions

-

Size and profile

210 x 1260 mm.

Guidance for specification option:

Heavy Duty

260 x 1560 mm.

Guidance for specification option:

Super Duty

Height

-

Manufacturer guidance

≥1260 mm. Insert requirements.

Length below ground

200 mm.

Post top

Rounded.

Post base

Flat.

Finishes

-

Colour

Red and white.

Yellow and black.

Green and white.

Accessories

Retro-reflective tape.

Installation

200 mm diameter diamond core.

Guidance for specification option:

Heavy Duty

250 mm diamond core (200 mm deep).

Guidance for specification option:

Super Duty

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Polymer

Steel

Recyclability

100%

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Literature

Demountable Drop Core Heavy Duty Bollard - Brandsafe Spec Sheet

Demountable Drop Core Heavy Duty Bollard - Brandsafe Spec Sheet
