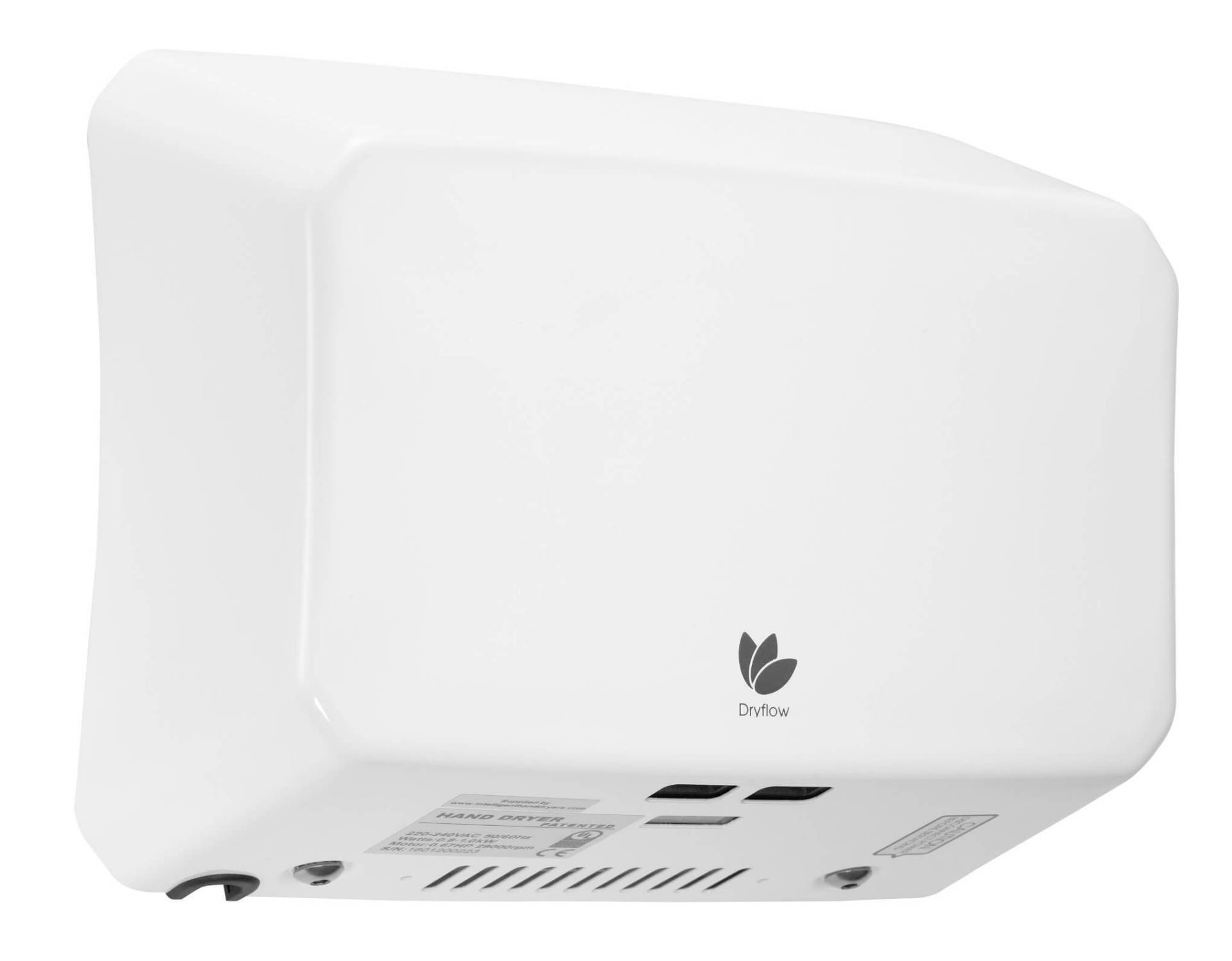

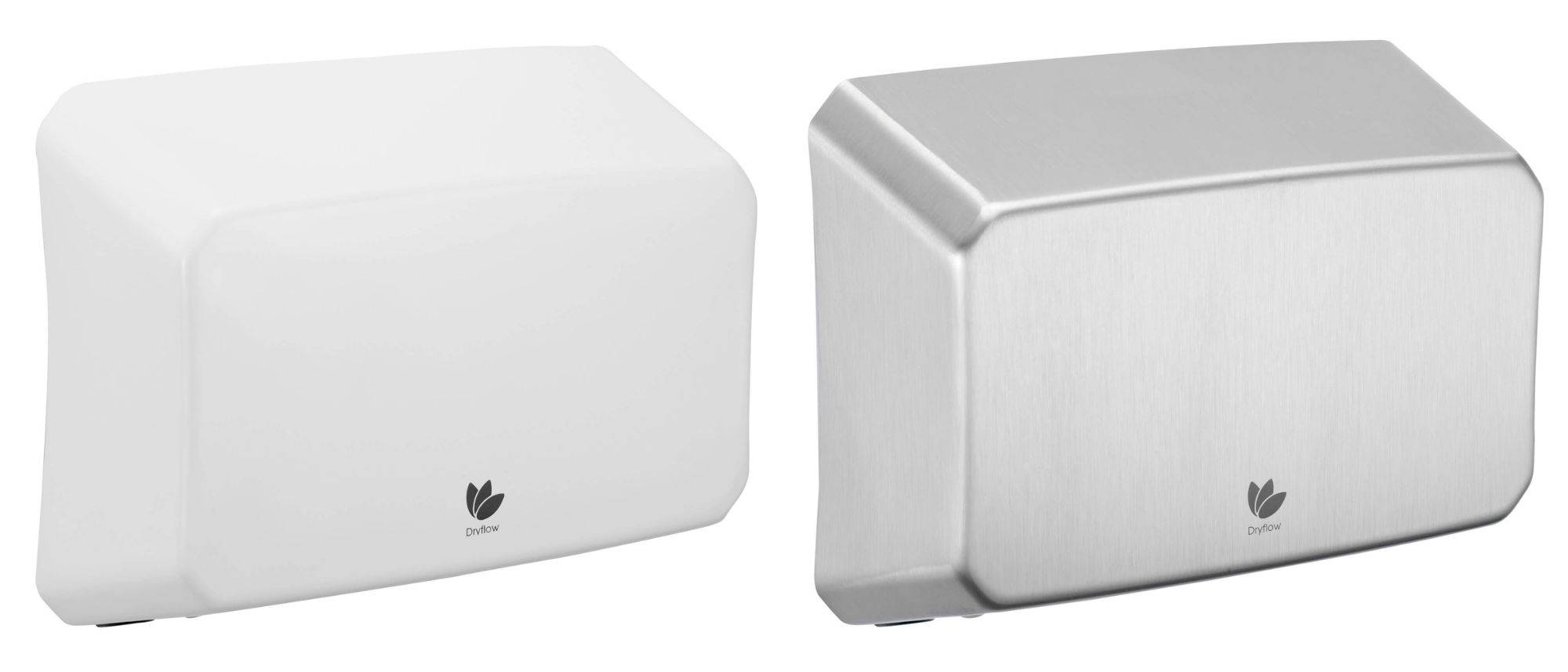

Dryflow® Slimline IP24 Hand Dryer
Verified by manufacturer 4 months ago
DFS01
DFS01
Energy efficient hand dryer for smaller washrooms.
Application
- Particularly suitable for these locations or similar: Office (any size), Places Visited by Young Children, School/College, Bar/Restaurant/Hotel, Cinemas/Theatres.
Description
Energy efficient hand dryer for smaller washrooms.
Features and benefits:
- Fast drying: 15 seconds.
- Guarantee: 5 years.
- Dual air outlet: Good drying efficiency with quiet operation.
- Robust and durable: Good build quality, long life motor and anti vandal screws.
- Adjustable settings: On/Off heater switch for extra cost savings; Fine tune motor speed for precise noise reduction.
- Slimline: Just 100 mm depth, easy to install and fit in any location.
- Comes with IP24 rating.
General information
Color | White Silver |
Finish | Polished |
Material | Stainless steel |
Shape | Rectangle |
Length | 100 mm |
Width | 276 mm |
Height | 216 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/64 Hand dryers N13/472 Hand dryers |
Product range |
Specification data - Hand dryers
Form | High-velocity air. |
Operation | Automatic. |
Timer | Fixed. |
Electrical supply | |
Power rating | 0.35 - 1 kW.Guidance for specification option: Internal on/off heater switch & adjustable motor speed. |
Rated operational voltage (Ue) | 220 - 240 V. |
Frequency | 50/60 Hz. |
Final connection | Flexible cable concealed within the building fabric. |
Body | |
Material | Stainless steel, epoxy steel. |
Finish | White. |
Colour | White. |
Ingress protection (minimum) | IP24. |
Dimensions | 100 x 276 x 216 mm. |
Noise level at 1 m (maximum) | 73 - 78 dB. |
Features | Hands only. |
Weight | 3.8 kg. |
Air speed | 183 MPH. |
Cable entry | Rear, with access available from bottom. |
Third-party certification | CE, UL, ROHS, GS, LVD, EMC, CB, Greenspec certified. |
Sustainability data
Country of material origin | Taiwan |
Country of product manufacture | Taiwan |
Recyclability | Three-step process to keep any of the product out of landfill. The product can be returned to the manufacturer for free to repair, keeping the product working and reducing waste. If unrepairable the product is stripped down and all possible components are re-used. Any unusable waste is added to the circular economy and the best recycling partners are found for the remaining materials. Guidance for specification option: End of life zero waste management via Intelligent Facility Solutions Infinity Life Project. More information here https://www.intelligenthanddryers.com/aftercare-i36 Manufacturer guidance100% Recyclability |
Literature

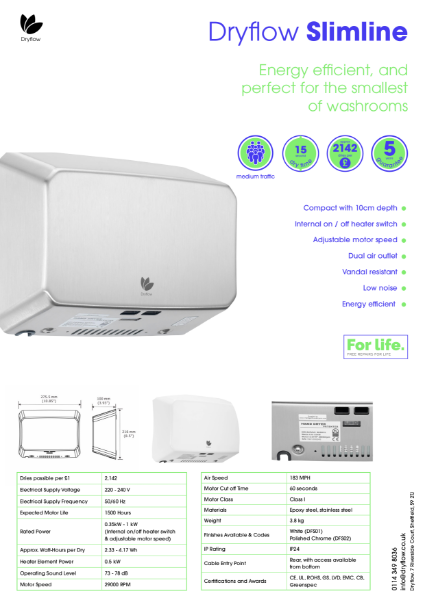

Hand Dryer Spec Sheet - Dryflow® Slimline IP24 Hand Dryer
