DryVent Ridge System

Verified by manufacturer 5 months ago

50 Double Roman DryVent Ridge System - 10002756

BMI Group UK Ltd Variant:

Ridge fixing system.

Jump to:
+44 (0)1908 015760 Website

Application

  • Available for all tiles and slates in the BMI Redland range except Fenland Pantile and Redland 49.
  • Suitable for use with concrete Half Round and Universal Angle Ridge Tiles and Rosemary Clay Half Round Ridge Tiles (300 mm).

Description

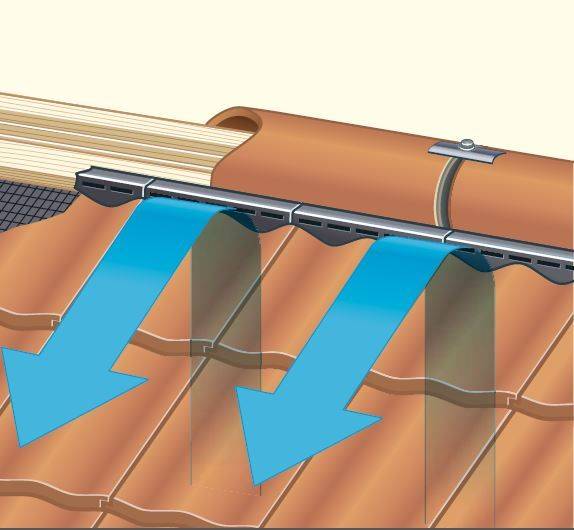

The DryVent Ridge System provides a continuous weathertight ventilation path from the roof void to the outside. The system can also be easily converted when no high-level ventilation is required at the ridge. Both solutions provide an exceptionally durable method of securing ridge tiles.


Key Advantages:

  • Profile Filler Units bespoke to each tile type for a perfect fit.
  • Provides a neat and attractive finish to the ridge line.
  • Easy to install and can be used even when bad weather is expected.

General information

Color

Grey

Guidance for specification option:

  • Profile filler units.
  • Ridge to ridge seals.

Material

Foam

Guidance for specification option:

Grommets.

PVC-U

Guidance for specification option:

Profile filler units.

Polypropylene

Guidance for specification option:

Ridge to ridge seals.

Stainless steel

Guidance for specification option:

  • Ring shank nails.
  • Ridge batten straps.
  • 100 mm Woodscrews and Clamping plates.

Shape

Other

Uniclass

Pr_35_90_93_29 Dry fixing ridgesPrimary

CAWS

H60/700 Dry ventilated ridges

H60/75 Dry ventilated ridges

H65/700 Dry ventilated ridges

H65/75 Dry ventilated ridges

Product range

Components and Accessories

Specification data - Dry fixing ridges

Suitable for

50 Double Roman.

Colour

Grey.

Guidance for specification option:

  • Profile filler units.
  • Ridge to ridge seals.

Material:

PVC-U, neoprene, foam, polypropylene, stainless steel.

Guidance for specification option:

PVC-U: Profile filler units.

Neoprene: Washers.

Foam: Grommets.

PP: Ridge to ridge seals.

SS: Ring shank nails, Ridge batten straps, wood screws and clamping plates.
