DS Timber Screens - Internal Glazed/ Solid Panel Screens
Verified by manufacturer 3 days ago
FR30
FR30
IFCC
Certificate type
Range of internal architectural grade glazed and/ or solid panel modular type screens that can be used in a wide variety of applications.
Application
- Can be used in a wide variety of applications.
- Proven in education, healthcare, leisure, high-end residential and commercial sectors due to their excellent quality, strength and overall performance.
Description
Range of internal architectural-grade glazed and/ or solid panel modular type screens that can be used in a wide variety of applications.
Features and benefits:
- Bespoke - made to order at the manufacturer's UK-based factory.
- Can be used in a wide variety of applications.
- Proven in education, healthcare, leisure, high-end residential and commercial sectors due to their excellent quality, strength and overall performance.
- FR30, FR60 and non-fire-rated (NFR) options.
- Selection of wood species.
- A broad range of coloured finishes, timber veneer, high pressure laminate, paintgrade or PVC facings provides options that can be tailored to suit the project.
- Acoustic performance up to 51 dB Rw.
General information
Color | Other |
Finish | Primed Lacquered Stained Veneered |
Material | Timber Wood Glass High pressure laminate (HPL) Particleboard |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L10/10 Wood windows L10/510 Glazed wood screens |
Specification data - Wood window units
Classification data | |
Standard | To BS 476-22 and third-party-certified. |
Third-party certification | IFCC for Fire. Manufacturer guidanceSee also Chain of custody for FSC/ PEFC certification. |
Dimensions and configurations | Guidance for specification option: Bespoke (modular) with various mid rail, mullion, transom, upstand and post designs. Consult manufacturer and insert requirements, including drawing reference or schedule as required. |
Product performance | |
Fire performance | |
Fire resistance | FR30. |
Environmental | |
Frame:glazing ratio (maximum) | Guidance for specification option: Insert requirements or omit. |
Acoustic performance rating | Single glaze up to Rw 40 dB; twin glaze up to Rw 48 dB. Manufacturer guidanceConsult manufacturer for details based on exact specification. |
Thermal | |
Whole window U-value | Guidance for specification option: Consult manufacturer for details based on exact specification. |
Frame | |
Standard | To BS EN 942. |
Profile | Lining. Lining with extension lining. Split lining. Integral architrave split lining. |
Wood species | Softwood. Steamed beech. Tulipwood. Hardwood paintgrade. Sapele. Maple. American white oak. European oak. American cherry. American white ash. American black walnut. Other. Guidance for specification option: Other species available upon request; consult manufacturer and insert requirements. |
Chain of custody | FSC® Certified (Softwood frames PEFC Certified). |
Appearance class | Manufacturer's standard. |
Finish as delivered | Primed white. Sealed, clear. Lacquered, clear. Stained. |
Glazing or infill | |
Requirements | Clear. Sandblasted. Twin Glaze. Between glass blind units. Manufacturer guidanceSee also Solid panels below. |
Fixing features | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Architraves | AR2 15 x 44 mm AR7 18 x 44 mm. AR9 18 x 69 mm. Bespoke. Guidance for specification option: Consult manufacturer for options and insert requirements. |
Beading | Square. Beveled. Full width. |
Solid panels | DSP solid core three-layer particleboard. DSTm solid laminated timber core. |
Panel facings | High-pressure laminate. Guidance for specification option: Various options available; consult manufacturer for details and insert requirements. Wood veneer. Paintgrade paper. PVC. Guidance for specification option: Various options available; consult manufacturer for details and insert requirements. |
Species | Not applicable. Steamed beech. Sapele. Maple. American white oak. European oak. American cherry. American white ash. Olive ash. American black walnut. Birch. Baltic pine. Koto. Hemlock. Other. Guidance for specification option: Other species available upon request; consult manufacturer and insert requirements. |
Veneer | Crown cut. Quarter cut. |
Panel finish | Primed white. Colourcote (full paint finish). UV lacquered. Stained. |
Sustainability data
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Timber Wood Glass High pressure laminate (HPL) Particleboard |
Product certifications
IFCC
IFCC 1267 - Screens
Literature
Literature type
095 Glazed Screen Installation
096 Sealing Frames To Structure
DS Timber Screens - NFR, FR30, FR60
099 Storage, Care and Handling
202 The Use Of Fire Resistant Expanding Foam
Case studies
North Range of Buildings

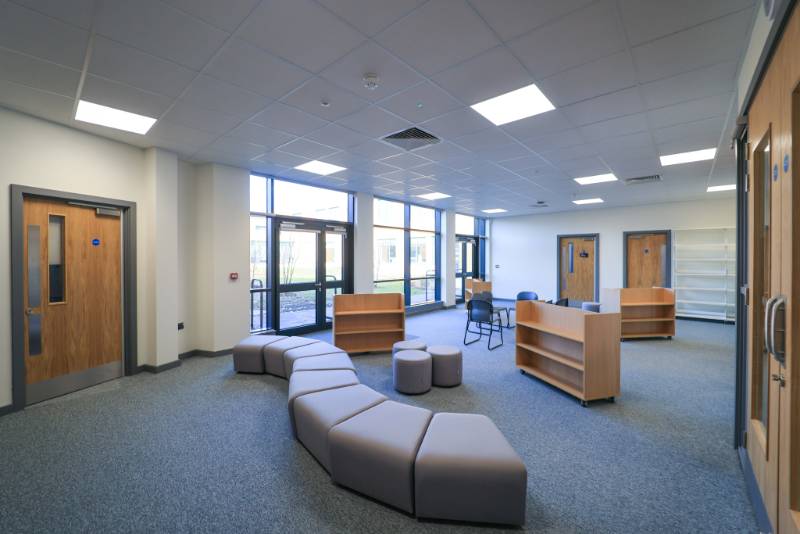

Carew Academy, New School Building
