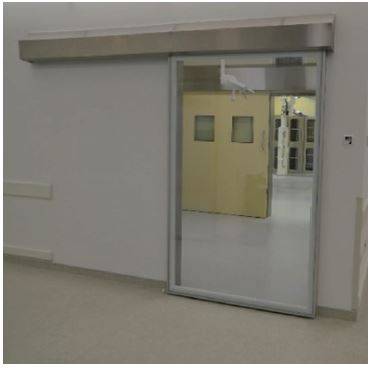

DT5 Hermetic sliding single glass door
Verified by manufacturer 3 days ago
Manual.
Manual.
Hermetic sliding single glass door.
Application
- Healthcare.
- cleanrooms.
- laboratories.
- pharmaceutical manufacturing.
- BSL3 & BSL4 labs.
- ICU.
Description
Sliding single hermetic glass door. Innovative glass sliding system that is durable, contemporary and ideal for providing visibility. The smooth sliding action saves on opening space.
Features and benefits:
- Sliding door.
- Manual or automated door option.
- DT5 track and canopy.
- Sloped canopy with option of flat top.
- Anodised aluminium surround frame with two sheets of 6 mm toughened glass, finished flush to both sides.
- Options include manifestations, blinds or switchable glass within door & fixed glazed panels.
General information
Color | Silver Other Guidance for specification option: Standard RAL colours available for powder coated finish, consult manufacturers requirements. |
Finish | Anodized Powder-coated |
Material | Aluminium Guidance for specification option: Door surround with glass panel. Glass Guidance for specification option: Double layer of 6 mm toughened glass. |
Shape | Rectangle |
Width | Manufacturer guidance800-2100mm inside frame width |
Height | Manufacturer guidance2100-2700mm inside frame height |
Uniclass | |
CAWS | L20/60 Doors L20/520 Sliding doors |
Product range |
Specification data - Sliding door and partition sets
Performance | Internal. |
Arrangement | Single leaf sliding. |
Track system | DT5 aluminium track system.Guidance for specification option: With patented 45 degree and indentations for hermetic sealing. |
Door leaves | |
Construction | Guidance for specification option: Mounting Type:
Optional:
|
Finish and colour | Anodized aluminium.Guidance for specification option: Standard. Powder coated, RAL.Guidance for specification option: Optional, insert requirement. |
Operation | Manual.Guidance for specification option:
|
Hardware | Not required.Lever cam handle.Flush pull handle. |
Accessories | Not required.LCD switchable glazing.Guidance for specification option: 9.2 mm glazing that is available in sizes up to 1,800 mm x 3,500 mm. |
Glass | Double glazed 6 mm, toughened glass. Guidance for specification option: As standard. |
Canopy | Sloping canopy. Flat top canopy. |
Canopies | Stainless steel. Guidance for specification option: As standard. Powder coated, RAL. Guidance for specification option: Optional, insert requirement. Manufacturer guidanceColour / finish. |
Frame | Aluminium corner edge profile. Guidance for specification option: Standard. Stainless steel wall liner. Guidance for specification option: Optional. |
Controllers | Not required. Manufacturer guidanceAutomation Controllers. |
Glass panel | Fixed glazed panel on one side. Guidance for specification option: 110 mm wide x 45 mm high surround frame. Fixed glazed panel either side for bi-parting. Guidance for specification option: 110 mm wide x 45 mm high surround frame. Manufacturer guidanceFixed glazing panel. |
Integral venetian blinds | Integrated venetian blind systems with horizontal slats with tilt only. |
Colour/ Finish | Guidance for specification option: Colour of blind slat from standard range, insert requirement. Manufacturer guidanceVenetian blind colour. |
Blinds operation | Manual. Guidance for specification option: Operated via turn knob. Electronic. Guidance for specification option: Operated with up/down rocker switch for blind control. |
Manifestation | Manifestations surface applied on glazing by others. |
Seals | Neoprene gasket for hermetic sealing. Guidance for specification option: Factory fitted. |
Sustainability data
Contains Red List materials | No |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
