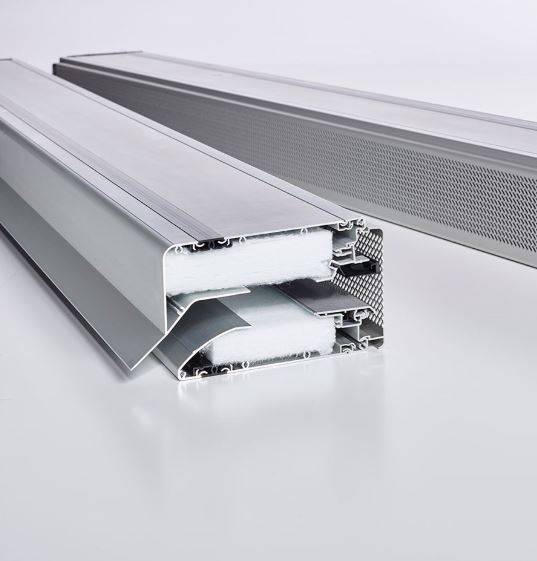

DucoMax SR - Acoustic Window Vent
Verified by manufacturer 8 months ago
Corto 10 'SR'
Corto 10 'SR'
Overframe or glaze-in acoustic window vents, suitable for use with aluminium, PVC or timber windows.
Application
Acoustic window vent, suited to high-rise applications.
Description
A self regulating, acoustic window vent (sound attenuating ventilator), specifically engineered for situations exposed to high levels of noise disturbance. The various types are attractively designed and offer excellent acoustic and airflow performance.
Features and benefits:
- Suited to high-rise applications.
- Four fitting depths: Corto, Medio, Alto, Largo.
- Suited to situations giving rise to high levels of noise disturbance.
- No whistling sounds with positive or negative pressure thanks to active closing aluminium valve.
- Excellent wind and waterproofing.
General information
Color | Manufacturer guidanceRange of colours available in either anodized or RAL. |
Finish | Anodized Guidance for specification option: Standard natural colour (clear anodizing). Powder-coated |
Material | PVC Aluminium |
Warranty description | Ten year |
Uniclass | |
CAWS | U90/360 Air transfer grilles U90/350 Window trickle ventilators L10/33 Proprietary windows L10/31 PVC-U windows L10/30 PVC-U windows L10/25 Aluminium windows L10/15 Wood windows L10/10 Wood windows L10/390 Proprietary windows L10/350 PVC-U windows L10/330 Aluminium windows L10/210 Wood windows |
Specification data - Overhead ventilators
Watertightness | 1050 Pa.Guidance for specification option: Watertightness in closed position. |
Wind resistance (minimum) | 600 Pa.Guidance for specification option: Windtightness in closed position. |
Design aperture | |
Height | 105 mm. |
Length | 2500 mm.Guidance for specification option: Transom/compact transom. 4000 mm.Guidance for specification option: Glazed-in. |
Finish | Anodized aluminium.Powder coated aluminium. |
Colour | Self coloured.RAL. |
Operation | Flap handle 15 mm. |
Accessories | Fasteners for hardware. |
U-value | 2.58 W/m²K. |
Transom | 20 mm. 21 mm. 24 mm. Manufacturer guidanceTransom profile. |
Free area | 10000 mm²/m. Manufacturer guidanceGeom. free area. |
Air flow | 86.7 m³/h/m. Guidance for specification option: @ 2Pa. |
Sound reduction | 41 (-1;-2) dB. |
Equivalent area | 16542 mm²/m. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
