DucoSun Cubic Intermediate

Verified by manufacturer 13 days ago

Blade Cubic 100

Duco Ventilation & Sun Control NV Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

Solar shading with sleek, rectangular louvre blades.

Jump to:
+32 58 33 00 66 Website

Application

Solar shading.

Description

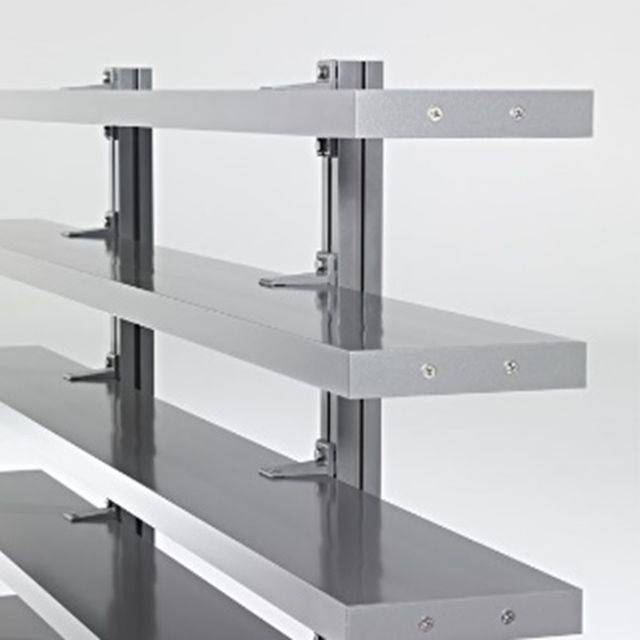

Solar shading available with fixed louvre blades installed at an angle of 0° or 90°. It can be installed horizontally or vertically to the support structure. The rectangular louvre blades ensure the maximum amount of diffused daylight, available in five widths of 100–400 mm depending on variant selected.


Features and benefits:

  • Sleek, rectangular blade shape.
  • The closed louvre blades and the façade surface are aligned, forming a single harmonious unit.
  • Rectangular shaped louvred blades.
  • Available in anodized or powder coated RAL finish.

General information

Color

-

Manufacturer guidance

Range of colours available in either anodized or RAL.

Finish

Anodized

Guidance for specification option:

Anodized: Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing).

Powder-coated

Guidance for specification option:

Powder coated: Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss.

Material

Aluminium

Guidance for specification option:

EN AW – 6063 T66.

Shape

Rectangle

Width

100 mm

150 mm

200 mm

300 mm

400 mm

Height

20 mm

30 mm

37 mm

48 mm

Warranty description

Ten year

Guidance for specification option:

Duco Projects provides 10-year warranty cover on Duco system materials covering potential defects in materials and surface treatment, applicable from the date 3 months after delivery or from the date of installation, whichever is the sooner.For motors and for components subject to wear as a result of movement, however, this warranty is limited to 1 year. This warranty is only valid for building projects in European countries (other countries upon request only) and provided normal use and maintenance have been observed. This warranty is on a sliding scale, reducing by 10% a year (e.g.: during the third year 80% of the claim will still be covered by this warranty). This warranty covers the supply of replacement parts on site to be fitted by the installer, or in the event of defective surface treatment, substantiated costs for pre-treating and recoating the material in question. This warranty relates exclusively to the product itself, not to its installation: accordingly, dismantling and assembly costs are not covered by this warranty. Duco Projects’ maximum liability will be exhausted with the resupply of the defective component or complete system. Under no circumstances can Duco Projects be held liable for any other tangible or intangible loss, including consequential losses. A repaired or resupplied product is covered for the remainder of the warranty period.

Uniclass

Pr_30_59_09_18 Composite brise-soleil unitsPrimary

CAWS

L10/670 Brises-soleil

Product range

Solar Shading

Specification data - Composite brise-soleil units

Support arms

-

Material

Aluminium.

Guidance for specification option:

EN AW – 6063 T66.

Finish

Anodized.

Guidance for specification option:

Anodized: Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing).

Powder coated.

Guidance for specification option:

Powder coated: Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss.


Colour

Anodized.

RAL.

Guidance for specification option:

Standard RAL colours 70% gloss.

Array louvre blades

-

Profile

Rectangular.

Pitch

-

Manufacturer guidance

Depends on the type of blade and the inclination.

Material

Aluminium.

Guidance for specification option:

EN AW – 6063 T66.

Finish

Anodized.

Guidance for specification option:

Anodized: Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing).

Powder coated.

Guidance for specification option:

Powder coated: Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss.


Colour

Anodized.

RAL.

Guidance for specification option:

Standard RAL colours 70% gloss.

Height

20 mm.

Manufacturer guidance

Blade height.

Side plates

Standard.

Guidance for specification option:

Aluminium sheet Al Mg 3 G22, laser-cut, 5 mm thick.

  • Louvre blades fastened to side plate/assembly plate with M6 x 30 stainless steel A2 (DIN 7500) bolts.

Special order.

Guidance for specification option:

Project-specified plates are available. Aluminium sheet Al Mg 3 G22, laser-cut, 5 mm thick.

  • Louvre blades fastened to side plate/assembly plate with M6 x 30 stainless steel A2 (DIN 7500) bolts.


Inclination angle

0°.

90°.

Blade width

100 mm.

Sustainability data

Recyclability

-

Manufacturer guidance

Metals widely recycled.

Third party certifications

Third party certifications

EPD

EPD

EPD 000564 DucoSun Cubic fixed

Case studies

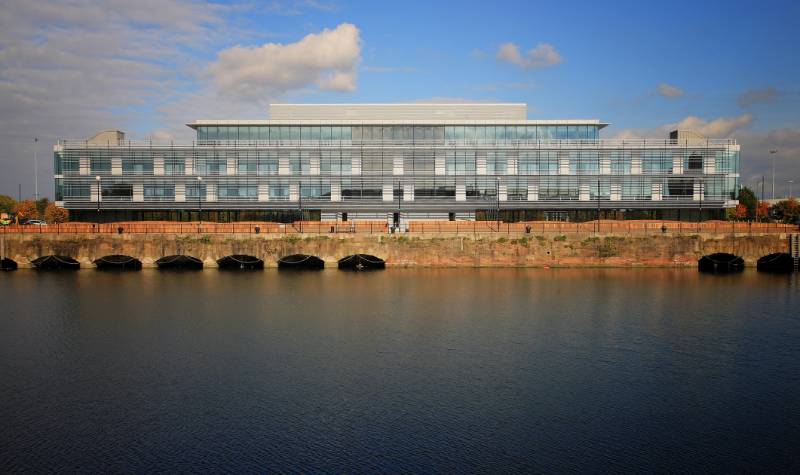

Tower Wharf Liverpool - solar shading

Tower Wharf Liverpool - solar shading
