DucoSun Ellips Unifit

Verified by manufacturer 15 days ago

Blade Ellips 100

Duco Ventilation & Sun Control NV Variant:

Solar shading with a choice of seven elliptical louvre blades.

Jump to:
BOS
+32 58 33 00 66 Website

Application

Solar shading.

Description

Permanent external solar shading system. The aluminium blades are mounted under a fixed inclination of 0° on aluminium support profiles by means of a “Unifit” fork. The spacing between two louvre blades (blade pitch) is dependent on the blade type and the inclination. The ellipsoid blade styles admit high levels of diffused daylight. DucoSun Ellips offers architects a wide freedom of design.


Features and benefits:

  • The elliptical louvre blades ensure the maximum amount of diffused daylight.
  • Compact assembly ensures optimum shading.
  • Choice of six louvre blade types.
  • Wide range of assembly applications.
  • Ten year warranty.

General information

Color

-

Manufacturer guidance

Range of colours available in either anodized or RAL.

Finish

Anodized

Guidance for specification option:

Qualanod-compliant, coating thickness 15-20 µm, standard natural colour (clear anodising).

Powder-coated

Guidance for specification option:

Qualicoat-compliant, minimum average coating thickness 60 µm, standard RAL colours 70% gloss.

Material

Aluminium

Guidance for specification option:

Al Mg Si 0.5.

Shape

Rectangle

Width

100 mm

150 mm

200 mm

250 mm

300 mm

Show more

Height

Warranty description

Ten year

Guidance for specification option:

Duco Projects provides 10-year warranty cover on Duco system materials covering potential defects in materials and surface treatment, applicable from the date 3 months after delivery or from the date of installation, whichever is the sooner.For motors and for components subject to wear as a result of movement, however, this warranty is limited to 1 year. This warranty is only valid for building projects in European countries (other countries upon request only) and provided normal use and maintenance have been observed. This warranty is on a sliding scale, reducing by 10% a year (e.g.: during the third year 80% of the claim will still be covered by this warranty). This warranty covers the supply of replacement parts on site to be fitted by the installer, or in the event of defective surface treatment, substantiated costs for pre-treating and recoating the material in question. This warranty relates exclusively to the product itself, not to its installation: accordingly, dismantling and assembly costs are not covered by this warranty. Duco Projects’ maximum liability will be exhausted with the resupply of the defective component or complete system. Under no circumstances can Duco Projects be held liable for any other tangible or intangible loss, including consequential losses. A repaired or resupplied product is covered for the remainder of the warranty period.

Uniclass

Pr_30_59_09_18 Composite brise-soleil unitsPrimary

CAWS

L10/55 Brises-soleil

L10/670 Brises-soleil

Specification data - Composite brise-soleil units

Support arms

-

Material

Aluminium.

Guidance for specification option:

Al Mg Si 0.5.

Finish

Anodized.

Guidance for specification option:

Qualanod-compliant, coating thickness 15-20 µm, standard natural colour (clear anodising).

Powder coated.

Guidance for specification option:

Qualicoat-compliant, minimum average coating thickness 60 µm, standard RAL colours 70% gloss.

Array louvre blades

-

Profile

Ellips-shaped.

Pitch

-

Manufacturer guidance

Depends on the type of blade and the inclination.

Material

Aluminium.

Guidance for specification option:

Al Mg Si 0.5.

Finish

Anodized.

Guidance for specification option:

Qualanod-compliant, coating thickness 15-20 µm, standard natural colour (clear anodising).

Powder coated.

Guidance for specification option:

Qualicoat-compliant, minimum average coating thickness 60 µm, standard RAL colours 70% gloss.

Colour

Anodized.

RAL.

Guidance for specification option:

Standard RAL colours 70% gloss.

Orientation

Vertical.

Inclination angle

0°.

Side plates

Standard.

Guidance for specification option:

Standard RAL colours 70% gloss.

Height

26 mm.

Manufacturer guidance

Blade height.

Unifit blades

Unifit fork 0° - 30 mm wide.

Guidance for specification option:

  • Aluminium extrusions, Al Mg Si 0.5.
  • Same surface treatment as the blade.
  • Two self-drilling screws Ø 4.8 x 16.

Blade width

100 mm.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Case studies

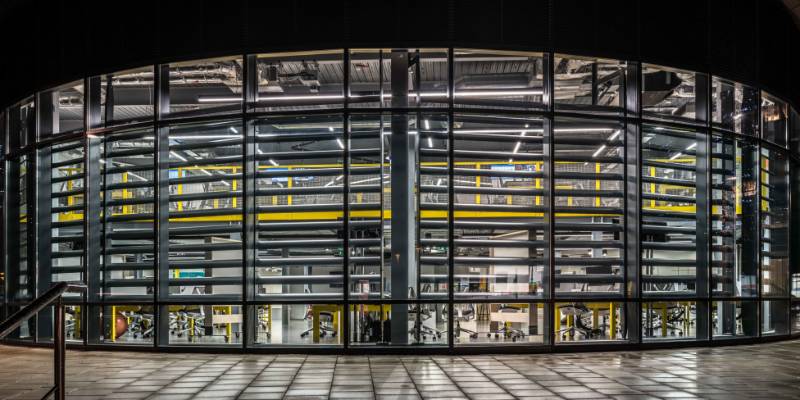

Sky Leeds Dock - Solar Shading

Sky Leeds Dock - Solar Shading

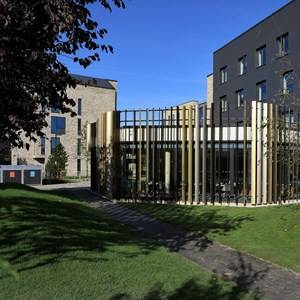

Student accomodation Fallowfield - Manchester
