DucoWall Acoustic W75Z/L - Aluminium Continuous Louvre Wall

Verified by manufacturer 4 months ago

DucoWall Acoustic 75L

Duco Ventilation & Sun Control NV Variant:

Aluminium continuous louvre wall with sound-absorbing, non-flammable mineral wool.

Jump to:
BOS
+32 58 33 00 66 Website

Application

Continuous louvre wall.

Description

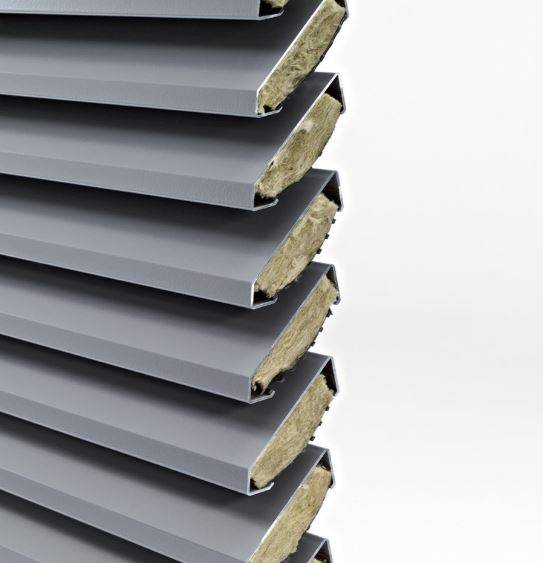

Aluminium continuous louvre systems with sound absorbing blades provided with non flammable mineral wool for acoustic performance. The aluminium blades are directly "clicked" onto plastic blade holders.


Features and benefits:

  • Z-shaped or L-shaped aluminium extrusions that clip into blade holders.
  • Manufactured from extruded aluminium profiles.
  • The louvre blades are fitted with sound-attenuating, inflammable mineral wool on the inside.
  • The aluminium louvre blades are locked into place on plastic blade holders.

General information

Color

-

Manufacturer guidance

Range of colours available in either anodized or RAL.

Finish

Anodized

Guidance for specification option:

Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing).

Powder-coated

Guidance for specification option:

Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss.

Material

Aluminium

Guidance for specification option:

Louvre blades and support profiles: Aluminium, Al Mg Si 0.5.

Polyamide

Guidance for specification option:

Louvre holders: Polyamide, PA 6.6, reinforced with glass fibre.

Mineral wool

Guidance for specification option:

Insulation.

Shape

Rectangle

Warranty description

Ten year

Guidance for specification option:

Duco Projects provides 10-year warranty cover on Duco system materials covering potential defects in materials and surface treatment, applicable from the date 3 months after delivery or from the date of installation, whichever is the sooner.For motors and for components subject to wear as a result of movement, however, this warranty is limited to 1 year. This warranty is only valid for building projects in European countries (other countries upon request only) and provided normal use and maintenance have been observed. This warranty is on a sliding scale, reducing by 10% a year (e.g.: during the third year 80% of the claim will still be covered by this warranty). This warranty covers the supply of replacement parts on site to be fitted by the installer, or in the event of defective surface treatment, substantiated costs for pre-treating and recoating the material in question. This warranty relates exclusively to the product itself, not to its installation: accordingly, dismantling and assembly costs are not covered by this warranty. Duco Projects’ maximum liability will be exhausted with the resupply of the defective component or complete system. Under no circumstances can Duco Projects be held liable for any other tangible or intangible loss, including consequential losses. A repaired or resupplied product is covered for the remainder of the warranty period.

Uniclass

Ss_25_50_45_45 Louvre screen systemsPrimary

CAWS

L10/54 Louvres

L10/650 Metal louvres

Product range

Continuous Louvre Walls

Specification data - Louvre screen systems

System performance

Design of acoustic, screening and ventilation louvre systems.

Screen framing

Aluminium louvre frames.

Louvres

-

Type

Aluminium louvre blades.

Operation

Fixed.

Blanking panels

Aluminium infill panels.

Acoustic panels

-

Facing

Aluminium louvre panel units.

Banked

-

First bank

Aluminium louvre panel units.

Second bank

Aluminium louvre panel units.

Execution

Installation of louvre screens.

System completion

Verification of performance.

Type

L-shaped.

Height

74 mm.

Manufacturer guidance

Blade height.

Blade pitch

60 mm.

Depth

75 mm.

Manufacturer guidance

Blade depth.

Free area

Visual free area: 95%; Physical free area: 28%.

Blade holders

PA 6.6 fibreglass reinforced polyamide.

InputFlowrate

22.25.

Manufacturer guidance

K-factor.

ExhaustAirFlowrate

15.02.

Manufacturer guidance

K-factor.

Sound attenuation

6 dB (0;-2).

Span

1660 mm.

Guidance for specification option:

Maximum blade length 6000 mm.

Manufacturer guidance

At 800 Pa.

Water resistance

To EN 13030.

Guidance for specification option:

  • v = 0 m/s: B.
  • v = 0.5 m/s: B.
  • v = 1 m/s: C.
  • v = 1.5 m/s: D.
  • v = 2 m/s: D.
  • v = 2.5 m/s: D.
  • v = 3 m/s: D.
  • v = 3.5 m/s: D.

Reaction to fire

To EN 13501-1, A1 (damping material).

Fire resistance

Non-combustible (damping material).

Surface finish

Anodized.

Guidance for specification option:

Coating thickness 15-20 µm, standard natural colour (clear anodizing).

Powder-coated.

Guidance for specification option:

Qualicoat-compliant, minimum average coating thickness 60-80 µm, standard RAL colours 70% gloss.

SurfaceColor

Anodized.

RAL.

Guidance for specification option:

Standard RAL colours 70% gloss. Insert requirements.

Thickness (nominal)

1.5 mm.

Mesh

Standard without insect mesh frame.

Support profile

50/125.

Guidance for specification option:

  • Heavy-duty support profiles: suitable for free overhang, attached to underlying structure using L-sections supplied.
  • Installation depth of 200 mm.

50/50.

Guidance for specification option:

  • Heavy-duty support profiles: suitable for free overhang, attached to underlying structure using L-sections supplied.
  • Installation depth of 125 mm.

50/12.

Guidance for specification option:

  • Lightweight support profiles: attached directly to underlying structure (without free overhang).
  • Installation depth of 87 mm.

21/50 MULTI.

Guidance for specification option:

  • Heavy-duty support profiles: suitable for free overhang, attached to underlying structure using L-sections supplied.
  • Installation depth of 125 mm.

30/14.

Guidance for specification option:

  • Lightweight support profiles: attached directly to underlying structure (without free overhang).
  • Installation depth of 87 mm.
