Duct Panel Kits

Verified by manufacturer 25 days ago

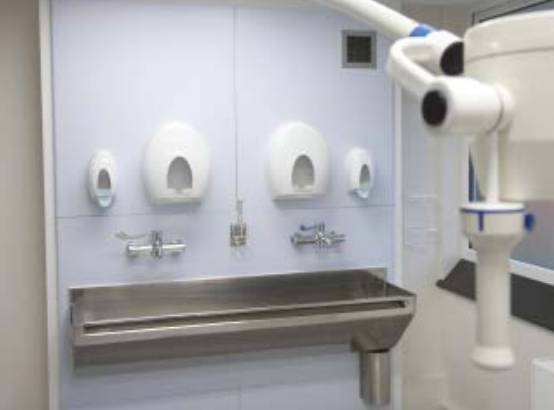

Healthcare IPS

Cubicle Centre Variant:

Wall and panel lining systems for washrooms, cisterns and IPS.

Jump to:
+44 (0)1924 457600 Website

Application

Suitable for commercial washrooms, cistern coverings, and healthcare wall integrated panelling applications.

Description

Duct panel kits are for commercial washrooms wall panels, toilet cistern boxing, and healthcare integrated panel systems.


Features and benefits:

  • Full height panel system.
  • Cistern panel system.
  • IPS.
  • Available in melamine faced chipboard (MFC) or compact grade laminate (CGL).

General information

Color

Beige

Black

Blue

Bronze

Brown

Show more

Material

Laminate

High pressure laminate (HPL)

Shape

Rectangle

Length

800 mm

Width

20 mm

Height

3000 mm

1200 mm

Bespoke

Uniclass

Ss_25_25_45_25 Duct and wall panel lining systemsPrimary

CAWS

K32/140 Duct/ wall linings – panels only

K32/150 Duct/ wall linings – panels and proprietary frames

K32/15 Duct/ wall lining panels

Specification data - Duct and wall panel lining systems

Panels

Compact grade laminate (CGL).

High pressure laminate (HPL).

Fasteners

Push fit panel clips

Guidance for specification option:

As standard.

Top-opening hinges.

Side-opening hinges.

Concealed cup hinges.

Supporting frame

-

Duct panels

-

System accessories

Not required.

Rim locks.

Edges

2.0 mm PVC lipping (HPL only).

Post-formed vertical edges (HPL only).

Black, machine rounded profile (CGL only).

Type

Pre-assembled box unit.

Pre-assembled recessed unit.

Height

Full height.

Guidance for specification option:

Bespoke to application up to 3000 mm, consult manufacturer and insert requirements.

Half-height, sloping lid.

Guidance for specification option:

Consult manufacturer and insert requirements.

Width

800 mm.

Thickness

20 mm.

Colour

Guidance for specification option:

Consult manufacturer and insert requirements.

Sustainability data

Country of material origin

Europe

Country of product manufacture

United Kingdom

Material

Laminate

High pressure laminate (HPL)

Manufacturing plant location

Literature

Healthcare IPS – Product Data Sheet

Healthcare IPS – Product Data Sheet

WallPanel Spec Cubicle Centre – Product Data Sheet

WallPanel Spec Cubicle Centre – Product Data Sheet
