Duct Panel Kits
Verified by manufacturer 25 days ago

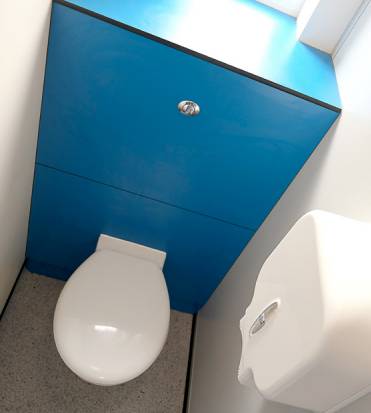

Toilet Cistern Boxing
Toilet Cistern Boxing
Wall and panel lining systems for washrooms, cisterns and IPS.
Application
Suitable for commercial washrooms, cistern coverings, and healthcare wall integrated panelling applications.
Description
Duct panel kits are for commercial washrooms wall panels, toilet cistern boxing, and healthcare integrated panel systems.
Features and benefits:
- Full height panel system.
- Cistern panel system.
- IPS.
- Available in melamine faced chipboard (MFC) or compact grade laminate (CGL).
General information
Color | Beige Black Blue Bronze Brown |
Material | Laminate High pressure laminate (HPL) |
Shape | Rectangle |
Length | 800 mm |
Width | 20 mm |
Height | 3000 mm 1200 mm Bespoke |
Uniclass | |
CAWS | K32/140 Duct/ wall linings – panels only K32/150 Duct/ wall linings – panels and proprietary frames K32/15 Duct/ wall lining panels |
Specification data - Duct and wall panel lining systems
Panels | Melamine faced chipboard (MFC).Guidance for specification option: As standard. Compact grade laminate (CGL).High pressure laminate (HPL). |
Supporting frame | |
Duct panels | Guidance for specification option: Not included, timber supplied by another manufacturer. |
Edges | 2.0 mm PVC lipping (MFC or HPL only). Post-formed vertical edges (HPL only). Black, machine rounded profile (CGL only). |
Height | 1200 mm. |
Width | Bespoke. Guidance for specification option: Bespoke to internal cubicle width, insert requirements. |
Colour | Guidance for specification option: Consult manufacturer and insert requirements. |
Depth | 300 mm. |
Sustainability data
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Laminate High pressure laminate (HPL) |
Manufacturing plant location |
Literature
Healthcare IPS – Product Data Sheet
WallPanel Spec Cubicle Centre – Product Data Sheet
