Duct System: Glass Ducting

Verified by manufacturer 3 months ago

Washroom Washroom Ltd

Duct panelling system with timber framework.

Jump to:
BOS
 +44 (0) 800 999 8888 Website

Application

Suitable for public washrooms.

Description

Features and benefits:

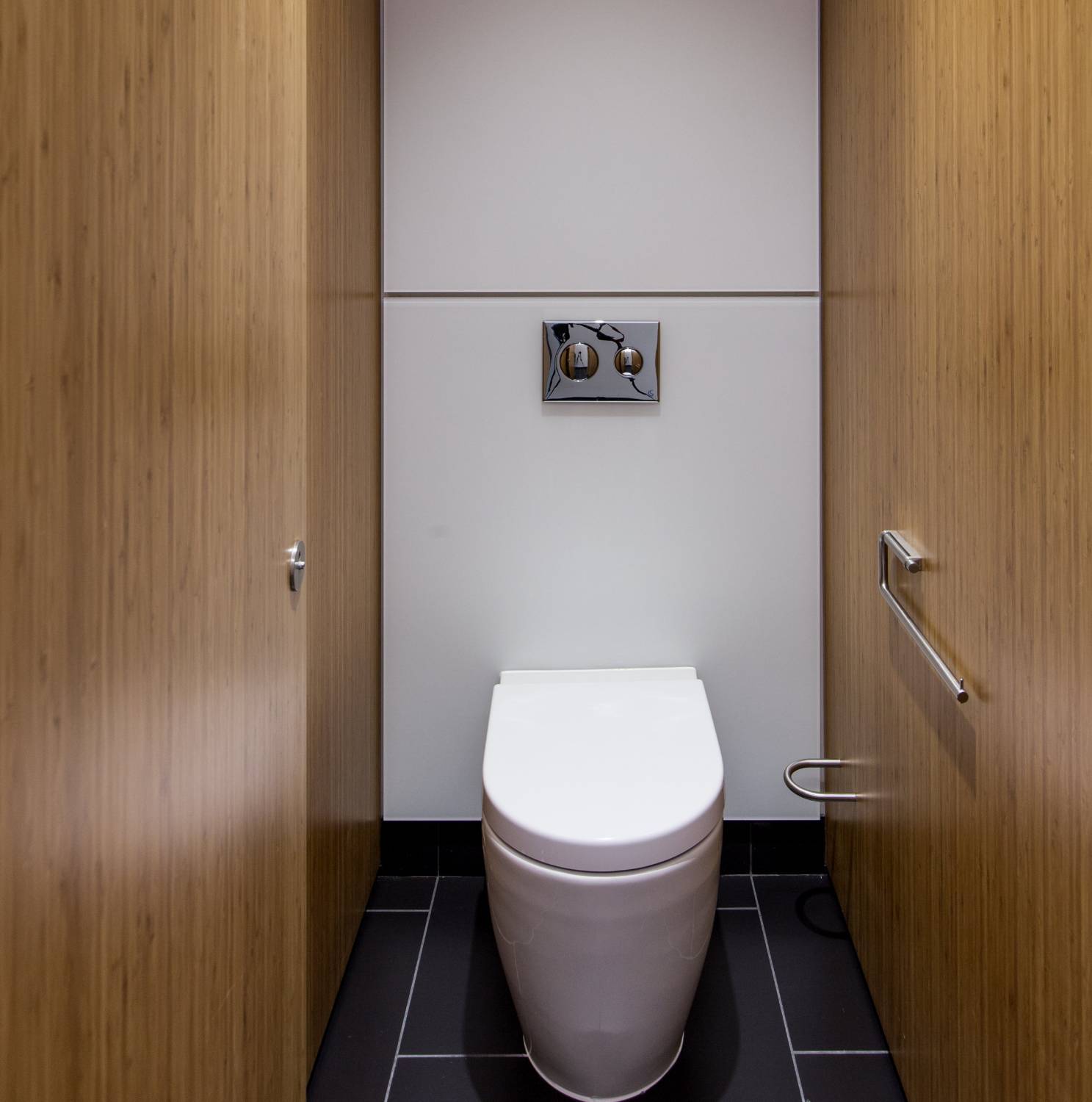

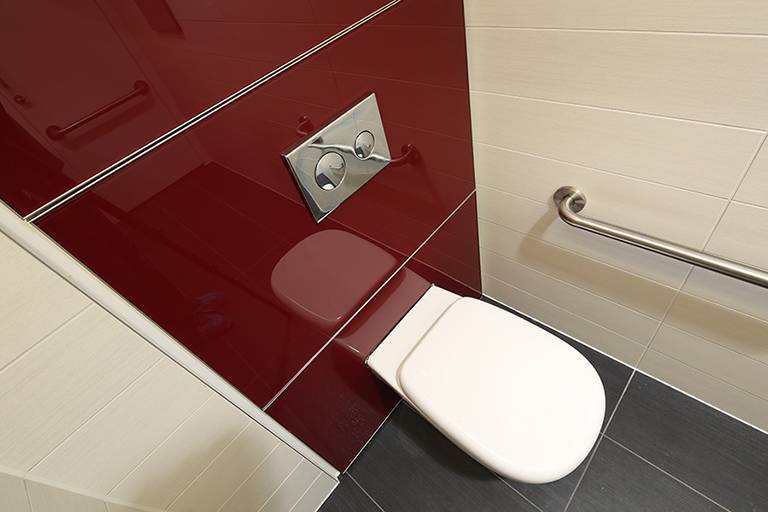

  • Glass duct panels manufactured with either 6 mm clear float toughened screen printed glass or 6 mm back painted glass.
  • Bonded to a 12 mm moisture resistant MDF.

General information

Color

-

Manufacturer guidance

To be confirmed from WW standard range.

Finish

-

Manufacturer guidance

Various options available.

Material

Glass

Manufacturer guidance

Either 6 mm clear float toughened screen printed glass or 6 mm back painted glass bonded to a 12 mm moisture resistant MDF.

Warranty description

One year

Manufacturer guidance

From practical completion.

Uniclass

Ss_25_25_45_25 Duct and wall panel lining systemsPrimary

CAWS

K32/140 Duct/ wall linings – panels only

Specification data - Duct and wall panel lining systems

Panels

Depends on specification of sanitaryware.

Fasteners

Supplied complete with corresponding flashgap laminate and Hafele push on/ lift off brackets.

Supporting frame

-

Duct panels

Assembled frames constructed from 60 x 40 mm treated softwood complete with plywood skirting and header.

Wall panels

Assembled frames constructed from 60 x 40 mm treated softwood complete with plywood skirting and header.

Flash gap panels

1 mm HPL flashgap bonded to framework.

Type

G3.

Guidance for specification option:

Glass duct panelling.

Manufacturer guidance

Type:

- MFC (MFC3):


  • Board/ Panels: 19 mm moisture resistance (MR) melamine faced chipboard (MFC).
  • Edge treatment: Edges lipped with matching laminate or corresponding PVC.

- Laminate (HPL3):


  • Board/ Panels: 18 mm MR MDF faced on both sides with high pressure laminate (HPL).
  • Edge treatment: Edges lipped with matching laminate or corresponding PVC.

- Solid grade laminate (SGL3):


  • Board/ Panels: 12/ 13mm solid grade laminate (SGL).
  • Edge treatment: Exposed edges machined to a smooth finish.

- Real wood veneer (V3):


  • Board/ Panels: 18 mm MR MDF faced on one side with real wood veneer, balanced on reverse.
  • Edge treatment: All edges lipped in corresponding hardwood, vertical edges to run through

- Glass (G3):


  • Board/ Panels: 6 mm back-painted safety glass bonded to 12 mm MR MDF substrate.
  • Edge treatment: Panel edges lipped with anodized aluminium feature trim, mitred on corners.


Edge treatment

Panel edges can be lipped with anodized aluminium feature trim to give extra protection, mitred on corners.

Colour

-

Manufacturer guidance

To be confirmed from WW standard range.

Sustainability data

Country of material origin

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

3

IFC

IFC2X3

2
