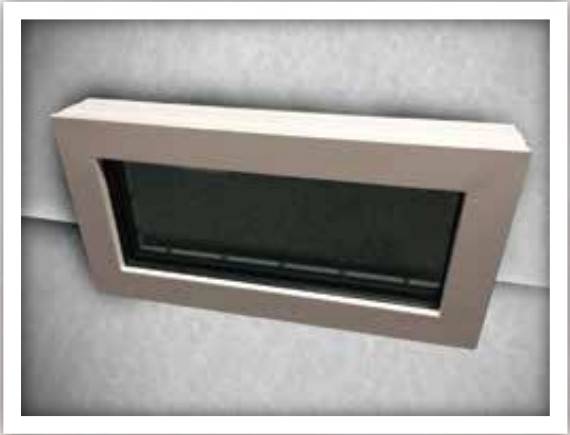

Durham window C5 (SR3)

Name: Durham window C5 (SR3)
Brand: Stafford Bridge Doors Ltd
SKU: hYEeccy8i4r4X234TQNUP1

Verified by manufacturer 24 days ago

Stafford Bridge Doors Ltd

Third party certifications:

BRE Certificate
Certificate type

Durham window by Stafford Bridge offers protection against forced entry, ballistic, and blast attacks. Independently tested and certified for expected threat levels.

Jump to:

BOS

+44 (0)1234 826 316 Website

Application

Steel window applications.

Description

The Durham windows are independently tested by third party test houses ensuring all elements of the window meet the required level of protection against the threat levels expected.

In addition, the window sets are constructed to meet other environmental requirements such as thermal resistance and therefore uninsulated and insulated window sets are available to provide flexibility in ordering products required for the specific needs and varying climates around the world. CE marked.

General information

Color	Clear Beige Black Blue Bronze Brown Copper Cream Gold Green Grey Ivory Orange Pink Purple Red Silver Turquoise White Yellow Other Show more Manufacturer guidance Any BS or RAL colour
Finish	Powder-coated
Material	Stainless steel
Shape	Square Rectangle
Width	300 mm Guidance for specification option: Minimum 3100 mm Guidance for specification option: Maximum Bespoke
Height	300 mm Guidance for specification option: Minimum 3100 mm Guidance for specification option: Maximum Bespoke
Warranty description	One year

Uniclass	Pr_30_59_98_83 Steel window unitsPrimary
CAWS	L10/20 Steel windows L10/310 Steel windows

Specification data - Steel window units

Standard	To BS EN 14351-1, EN 1522, EN 12207, EN 12208 and BS 6375-1.
Third-party certification	Loss Prevention Certification.
Dimensions and configurations	- Manufacturer guidance Bespoke (minimum/ maximum). Height: 0.3/ 3.1 (m). Width: 0.3/ 3.1 (m).
Product performance	-
Weather performance	-
UK exposure category	To BS 6375-1, 2000 Pa.
Air permeability	BS 6375-1 Class 4, EN 12207 Class 4 (600Pa).
Watertightness	BS 6375-1 Class 9A, EN 12208 Class 9A (600Pa).
Resistance to wind load	BS 6375-1 Class AE2200, EN 12208 Class AE2200 (P3=3300Pa).
Safety	-
Security level	LPS 1175: Issue 8 C5 (SR3).
Environmental	-
Frame:glazing ratio (maximum)	14% (86% clear vision area). Manufacturer guidance Glass / Frame percentage is calculated based on a 1 x 1 m window section.
Thermal	-
Whole window U-value	1.1 W/m²K. Guidance for specification option: Up to 1.1 W/m²K.
Frame	-
Material	Stainless steel.
Finish as delivered	-
Coating	Powder coating to BS EN 13438.
Colour	- Manufacturer guidance Any BS or RAL colour. Insert requirements.
Glazing or infill	-
Requirements	41.2 mm (FB4-S only, double glazed). 58.4 mm (SR3/C5 & FB4-S, double glazed).
Hardware	Screw-on beads: hollow, fixed with M8 A2 grade stainless machine screws.
Operation	Manual.
Fixing features	To be fixed into steel using M12 x 50 mm (supplied). If external, silicone is to be used to seal from weather between the frame and the opening.

Sustainability data

Contains Red List materials	No
Country of material origin	Sweden
Country of product manufacture	United Kingdom
Recyclability	90%

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	1
IFC	-	1

Third party certifications

BRE Certificate

Durham Window LPS 1175 Certificate
