Durlum Loop - Suspended Ceiling System

Verified by manufacturer 28 days ago

LOOP® TYP 2 - Hook On System

LSA Projects Ltd Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

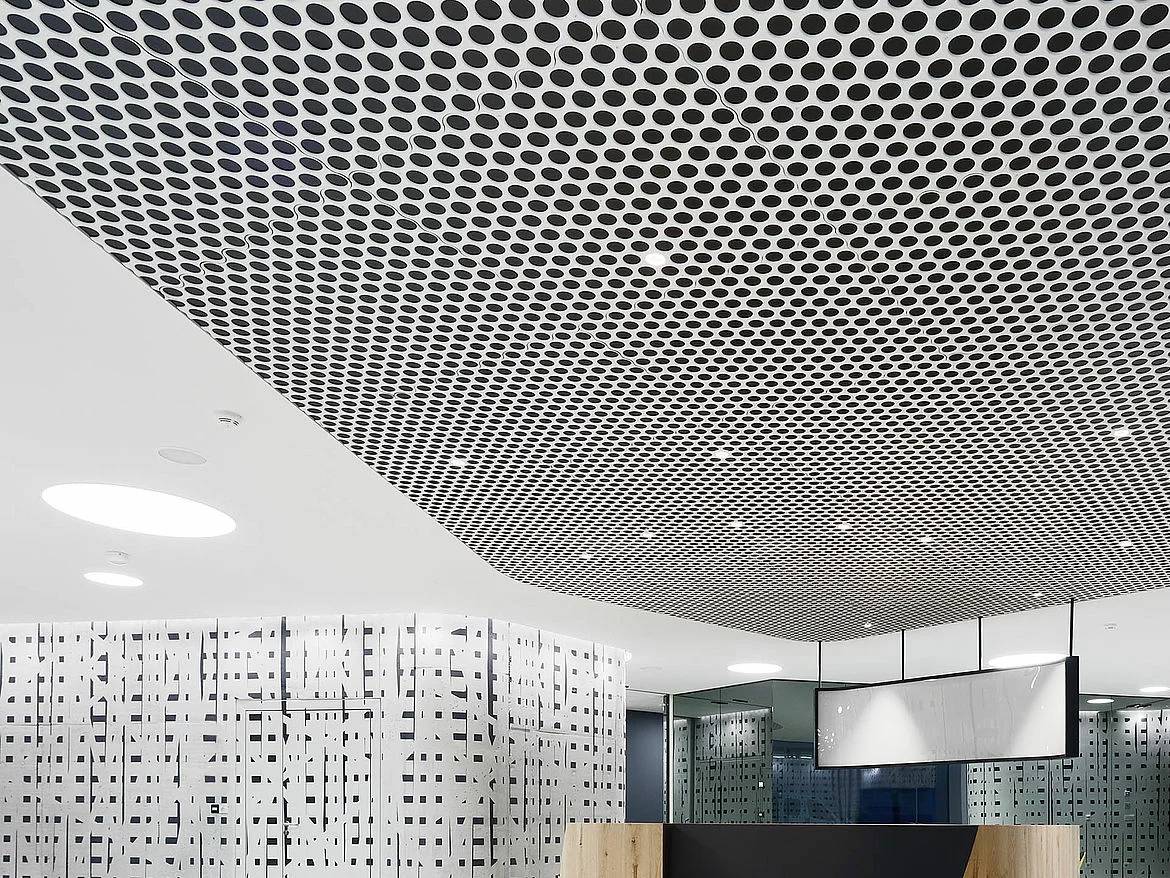

The LOOP ceiling system is a metal ceiling characterised by distinctive round openings.

Jump to:
+44 (0)1376 501199 Website

Application

Suitable for ceiling applications.

Description

Durlum Loop is a jointless ceiling panel style with interlocking curved panel edges. Loop panels have more than 50% open area created by the large perforation design. Arranged in rows, round openings define the jointless ceiling image and provide optimum gearing of the individual ceiling elements with their soft rounded contours.


Features and benefits:

  • Curved profile - jointless ceiling panel with interlocking curved panel edges.
  • Ceiling pattern appears endless with its concealed joints.
  • 5 mm deep openings create a three-dimensional visual effect for the system and support the screening of the ceiling void.
  • Available for two types of installation: LOOP® TYP 2 - hook on installation and LOOP® TYP 3 - magnetic installation.
  • LOOP® TYP 2 panels are installed using a C-Profile system to suspend panels from a floating grid system.
  • LOOP® TYP 3 panels are installed magnetically (with supporting safety chains) to a solid (or perforated) sub-ceiling supplied system by Durlum.
  • Finished using RAL colour powder-coating or using Duroplan anodization.
  • Compatible with the Punteo spotlight range, with bulbs designed to fin inside individual perforations.

General information

Color

Other

Beige

Black

Blue

Bronze

Show more

Finish

Powder-coated

Anodized

Material

Aluminium

Steel

Shape

Circle

Rectangle

Other

Length

1124.23 mm

1115.44 mm

Bespoke

Width

1004.25 mm

966 mm

Bespoke

Warranty description

Two year

Uniclass

Ss_30_25_22_51 Modular suspended ceiling systemsPrimary

CAWS

K40/10 Unit/ modular suspended ceilings

K40/115 Unit/ modular suspended ceiling system

Specification data - Modular suspended ceiling systems

Ceiling support

LOOP® TYP 2 hook on installation.

Guidance for specification option:

  • U1040 L-rails along the width of the panel at 1200 mm centre to centre.
  • U1042 and U1041 starting and joining pieces for L-rails.
  • Hook-on C Profile with Fix-Clips along parallel edges and centre line of panels (nine pieces per panel).
  • Starting and joining pieces for C-channels.
  • U1300, U1370 and U1372 Nonius suspension system.

Support fasteners

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer's literature for details.

Ceiling units

LOOP® TYP 2 ceiling panel.

Barriers in ceiling void

-

Acoustic barriers

dur-SONIC® TUBE elements.

Insulation by others.

Guidance for specification option:

Insert requirements.

System accessories

Not required.

PUNTEO®-J60 downlights.

LUMEO®-R LED area lighting.

Panel finish

Powder-coated, RAL colour.

Guidance for specification option:

  • White RAL 9016 as standard.
  • Powder coated finishes are available in a full range of RAL colours and a full scale of gloss lacquer options.
  • Consult manufacturer for details and insert requirements.

Duroplan anodized, black.

Duroplan anodized, white.

Duroplan anodized, natural aluminium.

Duroplan anodized, custom.

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Show more

Panel size

1124.23 x 1004.25 mm.

Module size

1115.44 x 966 mm.

Joint width

2 mm.

Perforation

Ø60 mm at 80.5 mm centre to centre (on width).
139.5 mm centre to centre (on length).

Reaction to fire (to BS EN 13501-1)

Euroclass A2-s1,d0.

Guidance for specification option:

  • Surface spread of flames: to EN ISO 11925-2, A2 (Fs <150 mm within 60 seconds).
  • Smoke production: to EN 13823, s1 (no smoke production).
  • Flaming droplets: to EN ISO 11925-2, d0 (no flaming droplets).

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

Guidance for specification option:

No environmentally dangerous emissions occur at de-installation. Panels and aluminium profiles can be recycled where facilities

exist.

Third party certifications

Third party certifications

EPD

EPD

Durlum Aluminium EPD

BS EN 13501-1

BS EN 13501-1

Durlum Panels Fire Test Report

EPD

EPD

Durlum Steel EPD

Literature

Durlum Loop TDS

Durlum Loop TDS

Durlum Character Brochure

Durlum Character Brochure

Durlum Green Building

Durlum Green Building

Durum Surfaces Guide

Durum Surfaces Guide

Durlum LOOP Type 2 Installation Guide

Durlum LOOP Type 2 Installation Guide

Durlum LOOP Type 3 Installation Guide

Durlum LOOP Type 3 Installation Guide
