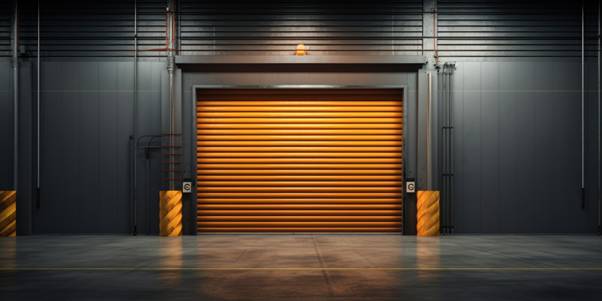

E130 Elite SR5 / E10 - Aluminium Security Shutter

Verified by manufacturer 6 months ago

Aluroll Ltd

Insurance-approved aluminium security shutter. Certified by LPCB to their new E10 rating.

Jump to:
BOS
01691 679 257 Website

Application

Suitable for high security commercial, industrial and public applications.

Description

An SR5/ E10 rated aluminium security shutter suitable for high security commercial applications and openings of all sizes up to 90 m². The E130 Elite has been tested by the Loss Prevention Certification Board to the latest LPS 1175 (Issue 8) standard.


This product has an advanced aluminium profile with anti-lift element. The shutter must be face fixed, internally. The E130 Elite is also available to SR3 or SR4.

General information

Color

Other

Guidance for specification option:

Option to powder coat any RAL/ BS colour.

Finish

Powder-coated

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Two year

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/60 Doors

L20/610 Roller shutters/ curtains

Specification data - Roller shutters

Opening sizes

10 000 x 10 000 mm.

Guidance for specification option:

Up to 90 m². 10 000 mm maximum width. Insert requirements or refer to a drawing.

Manufacturer guidance

Consult literature for box and guide sizes available.

Format

Internal.

Arrangement

Vertical, internal face fix.

Shutter curtain

-

Lath material

Double-skinned extruded aluminium slat with an additional anti-lift profile.
Bottom slat: Extruded aluminium with solid aluminium defenders.

Guidance for specification option:

No additional locking systems required.

Profile

105 mm +25 mm anti-lift profile.

Finish and colour

BS.

Guidance for specification option:

Insert colour requirement.

RAL.

Guidance for specification option:

Insert colour requirement.

Manufacturer guidance

The E130 can be powder-coated to any RAL/ BS colour reference.

Frame and guides

-

Material

Extruded aluminium guide channels with rubber weather seal.

Manufacturer guidance

Steel casing available on request. Not provided as standard.

Finish

Powder-coated.

Colour

BS.

Guidance for specification option:

Insert colour requirement.

RAL.

Guidance for specification option:

Insert colour requirement.

Manufacturer guidance

The E130 can be powder-coated to any RAL/ BS colour reference.

Operation

-

Mode

Tubular motor: Ellard tubular motor with internal rocker switch or external key switch and safety brake as appropriate to comply with legislation.

Guidance for specification option:

Manual override facility and crank handle as required (surcharge applies).

Outboard motor: GfA single or three phase motor with integrated safety brake, chain manual override and push button control.

Manufacturer guidance

Both tubular and outboard motors have numerous control option variants such as group, remote or mobile phone activation.

Control

-

Manufacturer guidance

Numerous control option variants such as group, remote or mobile phone activation are available. Consult manufacturer and insert requirements.

Accessories

None.

Manual override facility.

Crank handle.

Weight

32 kg/m².

Sustainability data

Country of product manufacture

United Kingdom

Material

Aluminium

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Aluroll E130 Elite (SR5) Datasheet

Aluroll E130 Elite (SR5) Datasheet
