Application

Applicable for buildings in residential and commercial sector.

Description

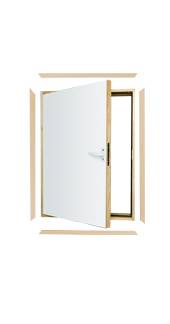

An insulated door designed to provide access to unheated voids in room-in-the-roof constructions.


Features and benefits:

  • The door is finished in white HDF and has an integral latch.
  • It is supplied with a wood frame and can be fitted as left hand or right hand opening.

General information

Color

White

Brown

Finish

-

Manufacturer guidance

Wooden/ natural.

Material

High density fiberboard (HDF)

Fiberboard

Shape

Rectangle

Size

550 x 800 mm

600 x 800 mm

600 x 1000 mm

600 x 1100 mm

700 x 900 mm

Show more

Uniclass

Pr_30_59_36_74 Roof hatchesPrimary

CAWS

L20/60 Doors

L20/630 Hatches

Specification data - Roof hatches

Format

Thermally insulated.

Door

-

Orientation

Guidance for specification option:

Can be fitted as left hand or right hand opening.

Material

Wood.

Size (w x h)

550 x 800 mm.

600 x 800 mm.

600 x 1000 mm.

600 x 1100 mm.

700 x 900 mm.

Show more

Dimensions

Guidance for specification option:

  • Insulation thickness: 30 mm.
  • Frame depth: 90 mm.
  • Frame thickness: 27 mm.

Thermal performance

1.1 W/m²K.

Manufacturer guidance

(U-value):
