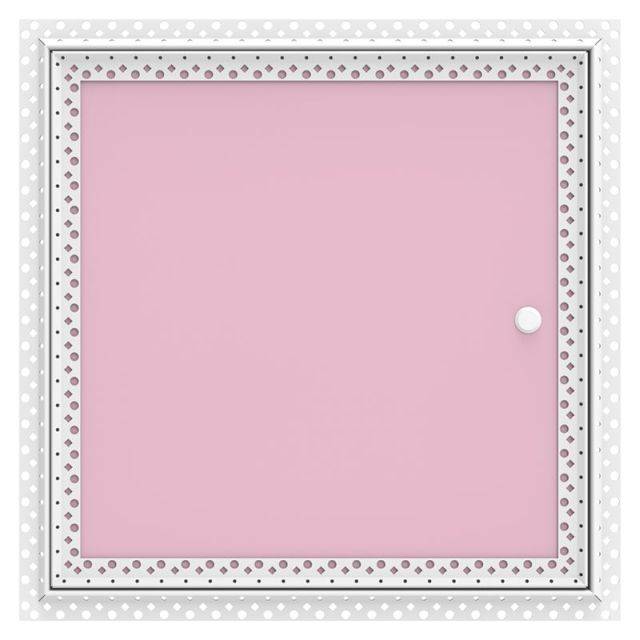

7000 Series Access Panel NFR/7000/BF/BL
ISO 14001 Environmental Management Systems
Certificate type
ISO 9001 Quality Management
Certificate type
Non fire rated access panel for jointless plasterboard/ plaster ceilings.
The ECHO 7000 Series Non Fire Rated is a hinged discreet ceiling access panel with a good performance acoustic rating, typically specified for high end residential and hotel construction projects.
This product has a standard acoustic rating of 21 dB, and can be upgraded to achieve an acoustic rating of 33 dB with a budget lock. If specified with a push catch lock for a seamless aesthetic finish, an upgraded acoustic rating of 31 dB or 34 dB can be achieved.
Features and benefits:
Frame edge:
The 7000-MD is available with a choice of two frame edge profiles to suit application;
Variations:
Color | White |
Finish | Powder-coated Primed |
Material | Carbon steel Guidance for specification option: Electro-galvanized. |
Shape | Square Rectangle |
Length | 300 mm 600 mm 450 mm 900 mm 1200 mm Manufacturer guidance
|
Width | 300 mm 450 mm 600 mm 900 mm 1200 mm |
Warranty description | Five year |
Uniclass | |
CAWS | K10/115 Metal stud partition system K10/125 Metal stud partition system K10/145 Wall lining system (metal studs) K10/15 Lining on timber K10/155 Wall lining system (metal studs) K10/165 Wall lining system (metal framing) K10/215 Suspended ceiling system K10/220 Proprietary suspended ceiling system K10/25 Ceiling lining on timber K10/30 Metal stud K10/430 Access panels K10/50 Suspended ceiling system on metal framing L20/630 Hatches |
Fire performance | |
Fire resistance | Non-fire rated. |
Reaction to fire classification | Non-fire rated. |
Position | Ceiling mounted. |
Size | 300 x 300 mm.Guidance for specification option: Single door unit. 300 x 600 mm.Guidance for specification option: Single door unit. 450 x 450 mm.Guidance for specification option: Single door unit. 600 x 600 mm.Guidance for specification option: Single door unit. 600 x 900 mm.Guidance for specification option: Single door unit. 900 x 900 mm.Guidance for specification option: Single door unit. 600 x 1200 mm.Guidance for specification option: Single door unit. 1200 x 1200 mm.Guidance for specification option: Double door unit. Special order.Guidance for specification option:
|
Frame | Beaded frame. |
Panel | |
Material | Carbon steel door tray, flush metal faced.Guidance for specification option: MD: Carbon steel door tray, flush metal faced, filled with 25 mm thick mineral wool insulation, contained by a fire rated foil sheet. Carbon steel door tray, lined with 'Fireline' plasterboard.Guidance for specification option: PD: Carbon steel door tray, lined with 12.5 mm ‘Fireline’ plasterboard, 25 mm thick mineral wool insulation within the metal door. |
Integral finish | Powder coated semi-gloss white.Guidance for specification option: Flush metal faced (MD). Primed.Guidance for specification option: Plasterboard lined (PD). Painted, RAL.Guidance for specification option: RAL paint colours available. |
Latch or lock type | Concealed budget lock. |
Operation | Concealed pivot hinge, outward opening. |
Integral accessories | Foam dust gasket to frame. |
FrameDepth | 86 mm. |
Weight | Metal door: 3 kg, Plasterboard door: 4 kg. Guidance for specification option: 300 x 300 mm. Metal door: 5 kg, Plasterboard door: 7 kg. Guidance for specification option: 300 x 600 mm. Metal door: 6 kg, Plasterboard door: 8 kg. Guidance for specification option: 450 x 450 mm. Metal door: 10 kg, Plasterboard door: 13 kg. Guidance for specification option: 600 x 600 mm. Metal door: 15 kg, Plasterboard door: 20 kg. Guidance for specification option: 600 x 900 mm. |
Core material | Rockwool. Manufacturer guidancePanel. |
Acoustic performance | 21 dB. Guidance for specification option: Standard. 31 dB. Guidance for specification option: Optional, with push catch lock. 33 dB. Guidance for specification option: Optional, with budget lock. 34 dB. Guidance for specification option: Optional, with push catch lock. |
Sealing | Frame fitted with rubber, compressible gasket to all sides. |
Accessories | Not required. Tamper-proof lock. Removable round cap, white. Guidance for specification option: On the door face: Conceals the keyhole. Integral chrome escutcheon. Guidance for specification option: On the door face: For the security lock (SL) option. Plasterboard door. Manufacturer guidanceMultiple options available, consult manufacturer for details. |
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom Guidance for specification option: Britain. |
Material | Carbon steel Guidance for specification option: Electro-galvanized. |
Recyclability | Fully recyclable at end of life. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 20 % |
