Colinwell EchoCheck Block EC100

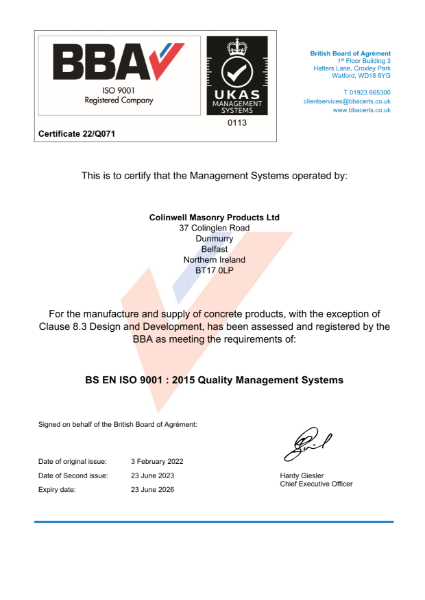

BBA Agrément Certificate
Certificate type
NSAI Agrément Certificate
Certificate type
A concrete acoustic masonry block, engineered to provide acoustic absorption.
Suitable for use in the construction of external and internal loadbearing and non-loadbearing walls, including the inner and outer leaves of cavity walls, party walls, partition walls and boundary walls. Can also be used as reinforced masonry walls through incorporation of bed joint reinforcement. Other applications include:

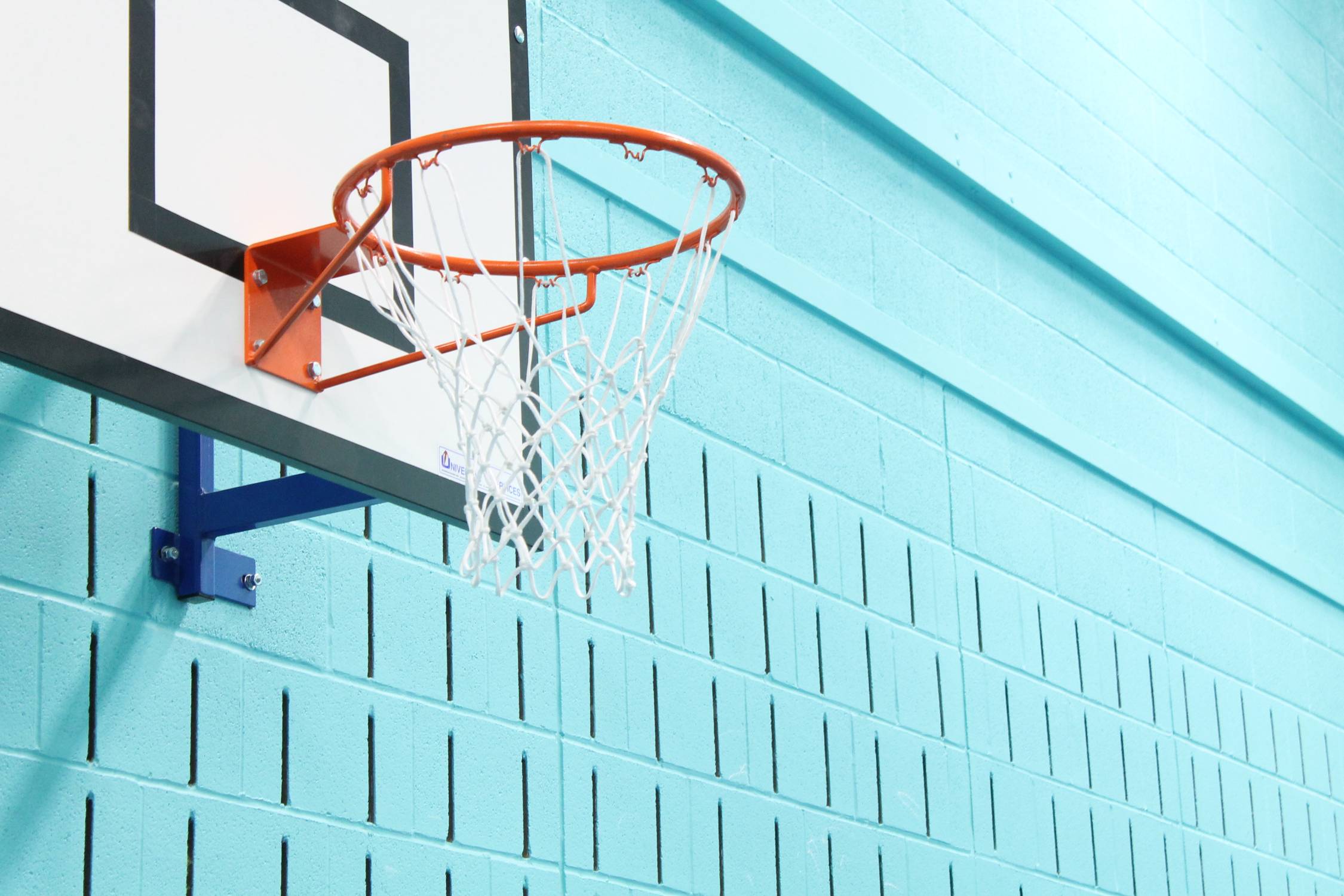

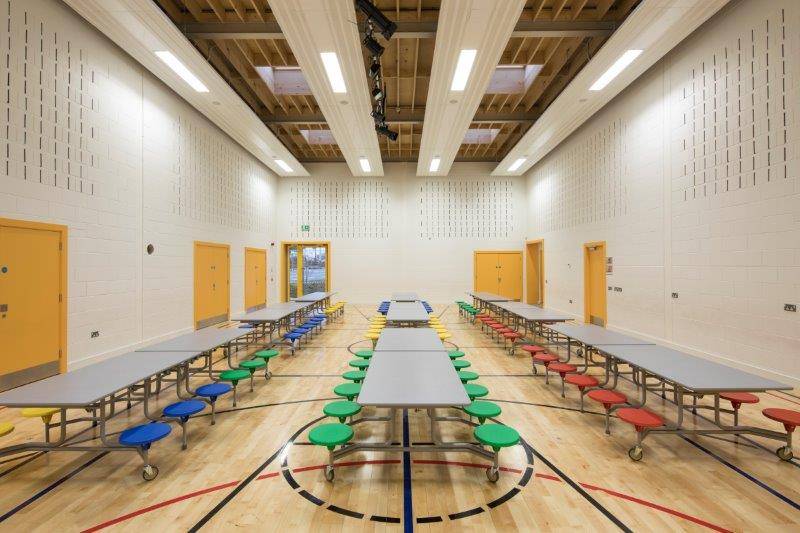

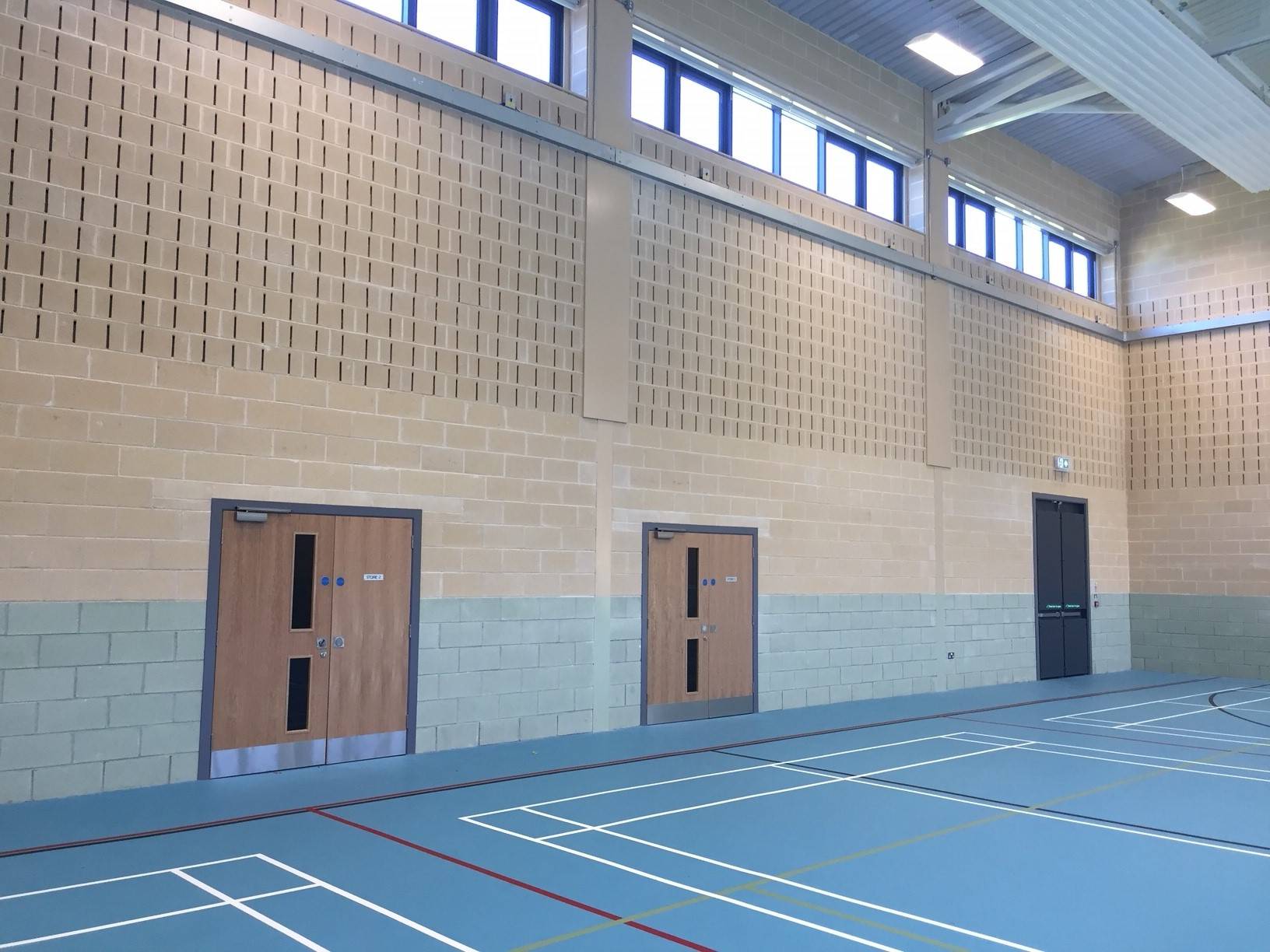

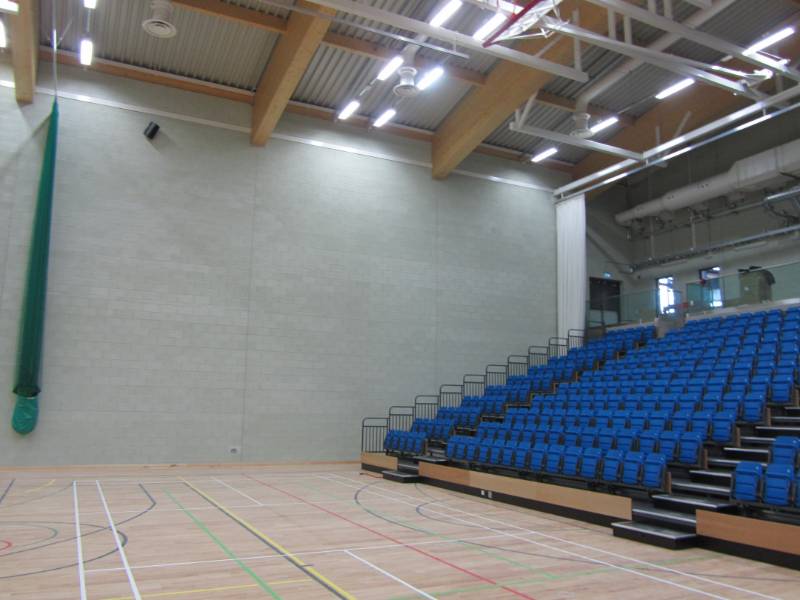

Slotted face acoustic masonry blocks with enhanced acoustic properties, that are achieved through the use of Helmholtz resonating chambers. They have been developed to reduce sound reverberation in both internal and external applications, promoting clarity to speech or music and reducing overall noise levels.
Manufactured from cement, porous aggregates (65% recycled secondary aggregate content), an integral waterproofing and colour pigment.
Features and benefits:
Color | Grey Red Cream Green Gold |
Finish | Smooth |
Material | Concrete |
Shape | Rectangle |
Length | 440 mm |
Width | 100 mm 140 mm 215 mm |
Height | 215 mm |
Uniclass | |
CAWS | F10/18 Concrete facing blockwork F10/255 Concrete facing blockwork |
Product range |
Standard | To BS EN 771-3 and BS 5628-1. |
Block description | Slotted face, porous aggregate, precast acoustic masonry blocks.Guidance for specification option: Enhanced acoustic properties are achieved through the use of Helmholtz resonating chambers. |
Compressive strength | |
Mean value | 15 N/mm². |
Thermal conductivity | 1.28 W/m·K. |
Recycled content | 65%.Guidance for specification option: Secondary aggregate content. |
Work sizes (length x width x height) | 440 x 100 x 215 mm. |
Accessory and special shape types | Not required.Bond-beam blocks.Cavity closers.Cills.Half blocks.Lintels.Quoins.Squints.Manufacturer guidance
|
Tolerance category | D2.Guidance for specification option: To BS EN 771-5. |
Reaction to fire | Manufacturer guidanceFire-resistant and will not contribute to the spread of flame. |
Colour | Bracken. Guidance for specification option: Recommended mortar: Maroon U53. Buff. Guidance for specification option: Recommended mortar: Beige E74. Cream. Guidance for specification option:
Green. Guidance for specification option:
Honey. Guidance for specification option: Recommended mortar: Tan C30. |
Mortar type | Manufacturer standard. Maroon U53. Beige E74. Cream G89. Green N70. Manufacturer guidanceRefer to manufacturer recommended mortar in colour specification guidance. |
Mortar mix | Guidance for specification option: See manufacturer's literature and insert requirements. |
Joint | Guidance for specification option: See manufacturer's literature and insert requirements. |
Spacing | 6–10 m. Guidance for specification option: Spacing between control joint interval. |
Material/ Finish | Concrete, smooth. |
Efflorescence | None. |
Average density | 2100 kg/m³. |
Noise reduction coefficient (NRC) | 0.55 αw. |
Sound absorption coefficient | Manufacturer guidanceTo BS EN ISO 354: 2003. |
Shrinkage | <0.04% (drying). Guidance for specification option: To BS EN 772.4. |
Water absorption | <5%. |
MoistureContent | 3% (internally). |
Bond strength | 0.15 N/mm² (in shear). Guidance for specification option: To BS EN 998.2, Annexure C. |
Moisture movement | 0.15 mm/m (maximum). |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 65 % Guidance for specification option: Secondary aggregate content. |
