EcoActive RC 300 Hybrid
A natural ventilation unit for education settings and more.
Typically for education applications.
The EcoActive RC Hybrid unit is designed to provide ventilation all year round. Ventilation is achieved using the naturally occurring forces of air movement, wind and buoyancy by creating a differential in pressure within the unit.
The unit incorporates an ultra low energy fan to assist (as and when required) in providing ventilation at all times and the unit is kept pressurised to ensure an efficient natural ventilation solution with the added benefit of heat recovery.

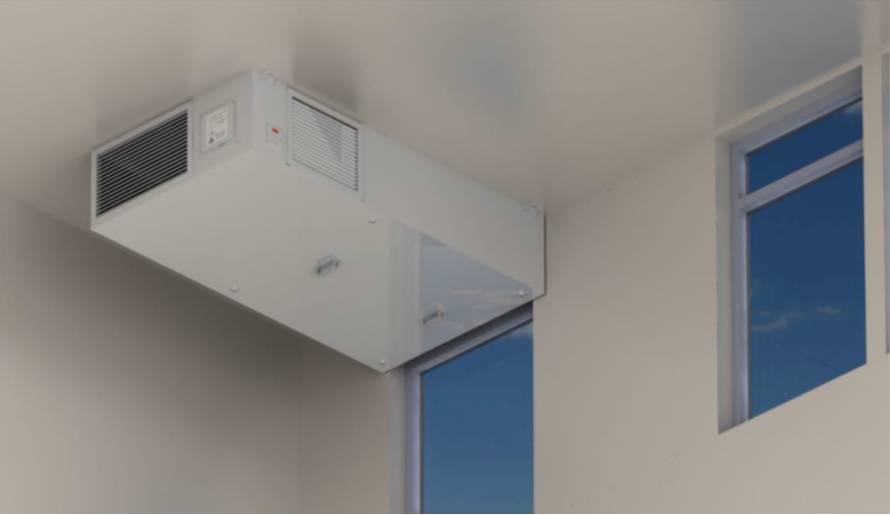

The RC Hybrid units can be installed within high level ceiling voids or exposed within the room, the ceiling void units are supplied with spigots for ductwork connections.
The units are assembled and constructed from double skinned panels to prevent condensation and limit breakout noise. The panels are insulated with 30 mm mineral wool fibre.
Features and benefits:
Color | White Other Guidance for specification option: Standard colours from BS 4800 or RAL ranges. |
Finish | Powder-coated |
Material | Aluminium Steel |
Shape | Rectangle |
Length | 1200 mm 1400 mm 1800 mm |
Width | 1000 mm |
Height | 400 mm |
Uniclass | |
CAWS | U90/140 Mechanical supply ventilation U90/413 Ventilation fan units |
Product range |
Duty | |
Air volume | |
Supply | 400 L/s (maximum).Guidance for specification option: Minimum of 90 L/s, with a maximum boost volume of 400 L/s. |
Sound power level | 50.9 dB at 400 L/s.Guidance for specification option: Testing was carried out in line with BS EN 3744:2010. A copy of the full report can be provided upon request. |
Environment | Internal. |
Casing construction | |
Material | Galvanized steel sheet.Guidance for specification option:
|
Finish | Self-finish.Polyester powder-coated.Guidance for specification option: To a standard colour from BS 4800 or RAL ranges. Insert requirements. |
Method of support | Suspended with M10 threaded rod either fixed through the pre-drilled holes within the corner sections or welded lugs. |
Components | |
Dampers | |
Purpose | Bypass dampers.Guidance for specification option:
|
Filters | G4 panel air filters. |
Heaters | |
Pre-heaters | Guidance for specification option: Heating coil options are available, consult manufacturer for details. |
Re-heaters | Guidance for specification option: Heating coil options are available, consult manufacturer for details. |
Cooling coils | Guidance for specification option: Cooling coil options are available, consult manufacturer for details. |
Supply fan | |
Fan type | Centrifugal fans - Ziehl Abegg GR28V-ZIP.0A.VR. |
Extract fan | |
Fan type | Centrifugal fans - Ziehl Abegg GR28V-ZIP.0A.VR. |
Accessories | Access panel, side.Access panel, bottom. |
Support frame | Extruded aluminium to BS 1474 - 30 x 30 mm pentapost box section. |
Mullions | Extruded aluminium to BS 1474 – 30 mm mullion joint. |
Controls | Siemens Climatix Controllers, interface units, wall-mounted sensors and room operator units. Guidance for specification option: Consult manufacturer's literature for details and options. |

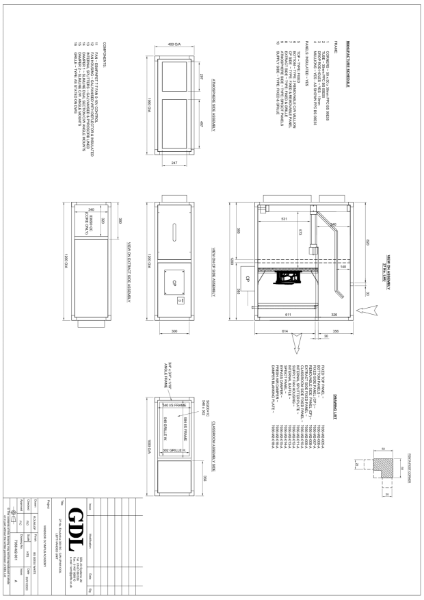

Dimensions | 1200 x 1000 x 400 mm. |
Grille | Extract: 030S0+2C, recessed (flangeless), 3.3 mm thick blade with 15° upwards angled blade. |
Country of product manufacture | United Kingdom |
