EcoCrib - Crib Wall System

Name: EcoCrib - Crib Wall System
Brand: Hahn Plastics Ltd
SKU: ptu5KFE8qAeoyqVLPnXTwL

Verified by manufacturer 2 months ago

Hahn Plastics Ltd

Third party certifications:

BBA Agrément Certificate
Certificate type
ISO 9001 Quality Management
Certificate type
EPD
Certificate type

100% recycled mixed polymer retaining crib wall system.

Jump to:

BOS

+44 (0)161 850 1965 Website

Application

Retaining wall system suitable for:

Roads and Highways: To support embankments and prevent landslides along roadways.
Railways: To stabilize slopes and provide structural support for railway tracks.
Bridges: As abutments to hold back soil around bridge approaches.
Landscaping: To create level areas for gardens, terraces, and driveways.
Building Foundations: To support structures on sloped or unstable land.
Urban Development: To maximize usable land in crowded areas by terracing.
Mining Operations: To manage soil stability in pits or terraces.
Dams and Reservoirs: To prevent soil erosion and manage water flow.
Agricultural Terraces: To create flat planting areas on hillsides.
Flood Control: To manage riverbanks and reduce erosion.
Water Retention Systems: For reservoirs, ponds, and stormwater management.
Slope Stabilization: To prevent soil erosion in areas prone to landslides.
Parks and Trails: To manage elevation changes and improve accessibility.
Playgrounds: For safety and aesthetic landscaping.
Military and Security: To create protective barriers or embankments.
Retaining Waste: In landfill management or industrial containment.

Description

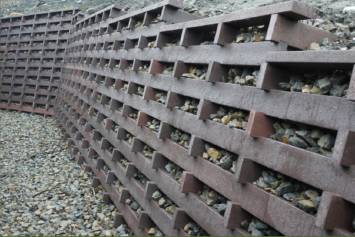

Ecocrib polymer crib earth retaining wall systems, comprising interlocking, polymer headers and stretchers for use when constructing earth retaining wall systems.

Retaining walls are used in various applications to prevent erosion, stabilise soil and earth, supporting embankments and preventing landslides, typically used along roadways and railways.

Features and benefits:

Durable, long lasting and requires minimal maintenance.
Uses 100% recycled mixed-polymer header and stretcher elements in a crib retaining wall system.
Design of structures is carried out in accordance with BS EN 1997.
Ecocrib in-fill material is to be to the standards of Class 6N.
Class C fire resistant (to BS EN 13501-1).
Zyplex 55 Ecocrib is available in black or brown elements.
BBA certified.

General information

Color	Brown Black
Finish	Anti-graffiti Woodgrain Textured
Material	Polymer
Shape	Rectangle
Length	590 mm 740 mm 990 mm 1490 mm Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	20 year

Uniclass	Ss_20_60_35_15 Crib retaining wall systemsPrimary

Specification data - Crib retaining wall systems

Foundation	Unreinforced C20/25 concrete foundation pad.
Crib wall units	Zyplex 55 EcoCrib polymer units. Guidance for specification option: Density: 0.91 g/m³. Thermal expansion co-efficient: 0.11 mm/m/℃. Fire resistance: to BS EN 13501-1, Class C. Header sizes: 590 x 152 x 50 mm; 740 x 152 x 50 mm; 990 x 152 x 50 mm;1490 x 152 x 50 mm. Notch in header (depth x width): 12.5 x 50 mm (50 mm from end of header). Stretchers: ≤3000 x 125 x 50 mm. Tallest retaining wall is circa 9 m high with no maximum length. Insert requirement.
Fill material	75 mm/ 40 mm clean stone.
Drainage	150 mm diameter rigid PVC perforated drainage pipe to suitable outfall.
Backfill	Class 6N free-draining fill.
System accessories	Pillow block.

Recycled content (minimum)	100%.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Polymer
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	0.41 kg CO₂ eq/kg
Recyclability	100% recyclable at the end of its life cycle
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
Expected Life	120 year
