Ecophon Akusto Freedom - Sound Absorption Panels

Verified by manufacturer 10 days ago

Saint-Gobain Ecophon Product certifications:
  • EPD

    EPD

    Certificate type

  • EPD

    EPD

    Certificate type

  • M1 emission classification

    M1 emission classification

    Certificate type

  • Indoor Air Comfort – Eurofins

    Indoor Air Comfort – Eurofins

    Certificate type

  • European Technical Approvals

    European Technical Approvals

    Certificate type

A sound absorption panel for acoustic installation and sound reduction.

Jump to:
+44 (0)1256 855208 Website

Application

Suitable for internal wall installations.

Description

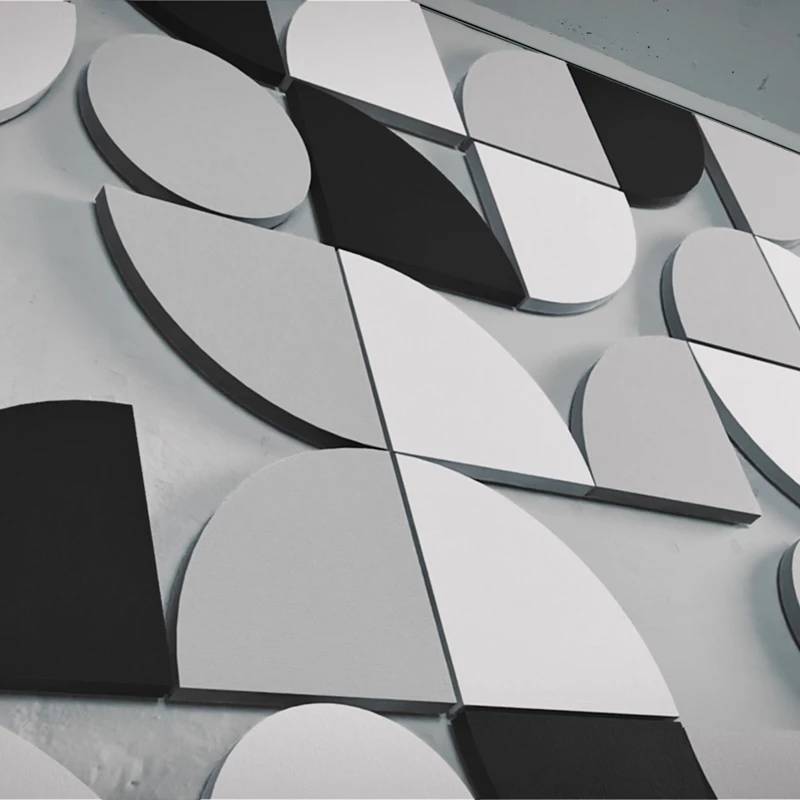

Sound absorption panels with a custom shape for acoustic wall installations.


Features and benefits:

  • Acoustic qualities.
  • Straight painted edge in same colour as surface.
  • Custom-made shapes with personal design.
  • A range of colour options.
  • Available in sizes ranging from 300–1200 mm.
  • Glass wool core.
  • Cradle to cradle certified® bronze.
  • C2C Certified Material Health Certificate™ Silver.

General information

Color

Beige

Black

Blue

Brown

Cream

Show more

Finish

Painted

Woven

Material

Glass

Wool

Shape

Other

Guidance for specification option:

Custom-made.

Elliptical

Diamond

Crescent

Circle

Show more

Length

300 mm

Guidance for specification option:

Minimum.

1200 mm

Guidance for specification option:

Maximum.

Width

300 mm

Guidance for specification option:

Minimum.

1200 mm

Guidance for specification option:

Maximum.

Warranty description

Ten year

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary

CAWS

K13/170 Acoustic panel lining

K13/170 Acoustic panel lining

SKU Code

Akusto One Freedom acoustic wall panels

Specification data - Sound attenuator infill units

Classification data

Form

Panel.

Rigidity

Rigid.

Application

Wall mounting.

Material

Glass wool.

Acoustic performance

-

Purpose

Absorber.

Fire performance

-

Reaction to fire

To EN 13964, A2-s1, d0.

VOC emissions

To EN 13964, E1.

Dimensions

-

Size (length x width)

300 x 300 mm.

Guidance for specification option:

Minimum.

1200 x 1200 mm.

Guidance for specification option:

Maximum.

Edges

Straight.

Surface pattern

Solid.

Finish

Akutex FT.

Colour

White frost.

Guidance for specification option:

  • Light reflectance: 85%.
  • Nearest Natural Color System (NCS) colour sample: S 0500-N.

Moonlight sky.

Guidance for specification option:

  • Light reflectance: 7%.
  • Nearest Natural Color System (NCS) colour sample: S 7020-R90B.

Highland frog.

Guidance for specification option:

  • Light reflectance: 55%.
  • Nearest Natural Color System (NCS) colour sample: S 2005-G.

Sunset heat.

Guidance for specification option:

  • Light reflectance: 20%.
  • Nearest Natural Color System (NCS) colour sample: S 2070-Y60R.

Ocean storm.

Guidance for specification option:

  • Light reflectance: 24%.
  • Nearest Natural Color System (NCS) colour sample: S 4020-R90B.

Morning drizzle.

Guidance for specification option:

  • Light reflectance: 69%.
  • Nearest Natural Color System (NCS) colour sample: S 1002-B.

Peach rose.

Guidance for specification option:

  • Light reflectance: 55%.
  • Nearest Natural Color System (NCS) colour sample: S 1515-Y80R.

Goji berry.

Guidance for specification option:

  • Light reflectance: 27%.
  • Nearest Natural Color System (NCS) colour sample: S 3030-Y80R.

Scallop shells.

Guidance for specification option:

  • Light reflectance: 76%.
  • Nearest Natural Color System (NCS) colour sample: S 0804-Y50R.

Fresh clover.

Guidance for specification option:

  • Light reflectance: 35%.
  • Nearest Natural Color System (NCS) colour sample: S 3020-G40Y.

Sage garden.

Guidance for specification option:

  • Light reflectance: 40%.
  • Nearest Natural Color System (NCS) colour sample: S 3010-B30G.

Eucalyptus leaf.

Guidance for specification option:

  • Light reflectance: 23%.
  • Nearest Natural Color System (NCS) colour sample: S 5010-B30G.

Summer frost.

Guidance for specification option:

  • Light reflectance: 10%.
  • Nearest Natural Color System (NCS) colour sample: S 6030-G10Y.

Golden field.

Guidance for specification option:

  • Light reflectance: 61%.
  • Nearest Natural Color System (NCS) colour sample: S 1040-G90Y.

Ruby rock.

Guidance for specification option:

  • Light reflectance: 7%.
  • Nearest Natural Color System (NCS) colour sample: S 4050-R10B.

Wet sand.

Guidance for specification option:

  • Light reflectance: 35%.
  • Nearest Natural Color System (NCS) colour sample: S 3020-Y30R.

Silent steam.

Guidance for specification option:

  • Light reflectance: 46%.
  • Nearest Natural Color System (NCS) colour sample: S 2010-B.

Dark diamond.

Guidance for specification option:

  • Light reflectance: 4%.
  • Nearest Natural Color System (NCS) colour sample: S 9000-N.

Cloudy day.

Guidance for specification option:

  • Light reflectance: 62%.
  • Nearest Natural Color System (NCS) colour sample: S 1500-N.

Volcanic ash.

Guidance for specification option:

  • Light reflectance: 56%.
  • Nearest Natural Color System (NCS) colour sample: S 2002-Y.

Silver stone.

Guidance for specification option:

  • Light reflectance: 29%.
  • Nearest Natural Color System (NCS) colour sample: S 4502-Y.

Silk slate.

Guidance for specification option:

  • Light reflectance: 13%.
  • Nearest Natural Color System (NCS) colour sample: S 7000-N.

Constant humidity resistance

Class C, relative humidity 95% and 30°C, according to EN 13964.

Indoor air quality

Eurofins Indoor Air Comfort®, French VOC, Finnish M1.

Fixing

Connect™ One trim and Connect™ Absorber Anchor One.
Connect™ One hook.
Connect™ Absorber adhesive.

Sustainability data

Contains Red List materials

No

Country of material origin

Sweden

Country of product manufacture

Sweden

Material

Glass
Wool

A1–A3 ('Production stage')

Normalized unit

Declared unit

7.59 kg CO₂ eq/unit

Certified

Recyclability

Fully recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

61 %

Expected Life

50 year

Product certifications

Product certifications

EPD

EPD

Akusto - Environmental Product Declaration - Expires 2025

EPD

EPD

Akusto - Plant - Environmental Product Declaration - 2023

M1 emission classification

M1 emission classification

M1 Certificate - All Ecophon products

Indoor Air Comfort – Eurofins

Indoor Air Comfort – Eurofins

Ecophon Eurofins Certificate - Akusto - Indoor Air Comfort - February 2029

European Technical Approvals

European Technical Approvals

Ecophon Compliance EU Taxonomy Regulation Appendix C

Literature

Akusto and Solo Freedom Drawing Guide

Akusto and Solo Freedom Drawing Guide

E024 2023-10-05 Declaration of Performance Certificate

E024 2023-10-05 Declaration of Performance Certificate
