Ecot Tubular Heater Guards
Verified by manufacturer 8 months ago

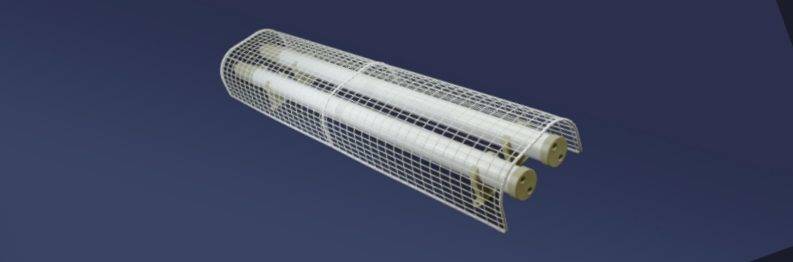

STG 11 - 1 ft single tubular heater guard
STG 11 - 1 ft single tubular heater guard

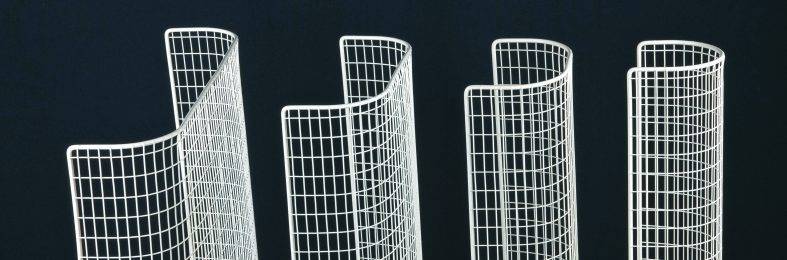

Steel mesh guards for tubular heaters.
Application
For use with Dimplex tubular heaters.
Description
A range of steel mesh tubular heater guards for Dimplex tubular heaters.
Features and benefits:
- Optimum heat circulation.
- Modular installation.
- Compact design.
- Flexible installation.
General information
Color | White |
Finish | Powder-coated |
Material | Steel |
Shape | Other |
Length | 408 mm 713 mm 1018 mm 1323 mm 1630 mm |
Width | 137 mm 222 mm 305 mm 508 mm |
Uniclass | |
CAWS | V90/590 Equipment V90/590 Equipment |
Specification data - Equipment protection cages
Dimensions | 406 x 137 x 114 mm. |
Enclosure material | 1 x 1/2″ 16 gauge (25 x 13 x 1.63 mm) weld mesh on a 5 gauge (5.38 mm) round bar frame. |
Colour/ Finish | White epoxy polyester powder-coating. |
Fixings | Movable P-clips. |
Sustainability data
Country of material origin | United Kingdom Guidance for specification option: British and European Union steel. |
Country of product manufacture | United Kingdom |
Literature
Ecot Tubular Heater Guards
