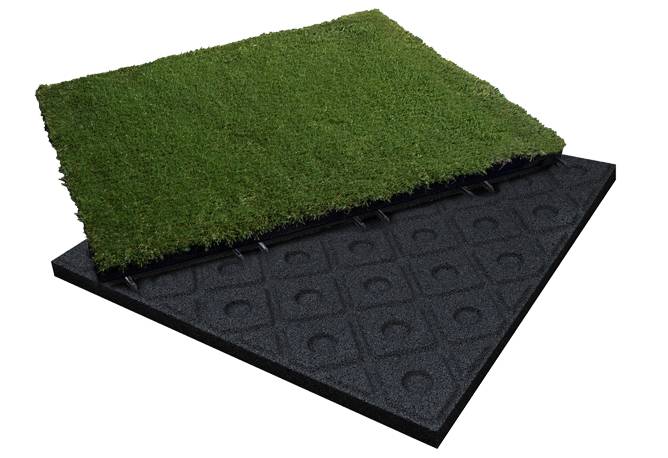

Ecotred Turf - Artificial Lawn Turf Tile

The Ecotred Turf commercial tile is a fully recycled and recyclable rubber granulate lawn turf tile with recycled SBR granulate tyre under side. The tiles are easily installed over any paved level subsurface and come with an inclusive pegging system, which allows them to be joined together to create a seamless finish.

Rubbertech's own-brand promenade tile offers an affordable and purposeful solution as a roof protection but also as a multi surface product, whilst providing an aesthetic finish to an outdoor space. Due to the recycled rubber granulate compound used in the manufacturing process, it is the particularly suitable choice for specifiers and contractors for use in eco-friendly BREEAM projects.

‍

Features and benefits:

• Fully recycled and recyclable.
• Integrated drainage; drainage channels on the bottom side ensure the free flow of water.
• The slabs are easily installed over any paved level subsurface and come with an inclusive pegging system.
• Plastic connecting pins lock the tiles in place with minimal labour requirements, providing a cost effective access solution.
• Compatible with most surfaces such as single ply membranes, bituminous systems and liquid coatings.
• Made from natural black SBR granulate tyre materials and Monofilament nylon, they have high acoustic values, good compressive strength and excellent vibration qualities.
• Designed to have a porous surface with drainage channels on the underside which allows for free drainage on all walkway access areas, is UV resistant and performs well in extreme temperatures.
• ‍Due to the nature of artificial grass, colour tones may vary slightly from batch to batch.
• 15 year UV manufacturers warranty.
• Two-year guarantee.

These tiles DO NOT hold a critical fall height certification.

Technical information:

Surface data:

• Surface material - tufted synthetic grass carpet surface.
• Surface composition - PE monofilament straight and PP monofilament curled (UV stabilized).
• Yarn quality - environmental friendly, free of lead and cadmium.
• Colour - mix of light and dark green + field-jute thatch.
• Dimensional information - 1000 x 1000 x 38 mm.
• Pile height - 38 mm.
• Water permeability - 60 L/min/m².
• Tuft gauge - 5/16 gauge.
• Stitches per 10 cm line - 22.
• Stitches per m² - 27.720 +/- 10%.
• UV stability - meets DIN 53387 standard (6000 hours).
• Colour fastness - Xenon test: Blue-scale >7, Grey-scale >4.

Under side data:

• Under side material - polyurethane-bonded recycled tyre granulate under side.
• Under side composition - dimpled underside allowing free drainage.
• Side composition - pre-drilled plastic connector pins included.
• Colour - black.
• Dimensional Information - 1000 x 1000 x 30 mm.
• Area weight information (turf and tile combined) - approx. 26.5 kg/m² / 30 units to a pallet = 30 m².
• Tensile strength - 147 N/cm².
• Compression resistance - 16.7 N/cm² (before elastic deformation), 200 N/cm² (before elastic deformation).
• Hardness Shore A - 28÷34.
• Porosity - N/A.
• Fire rating - there is no fire rating available for this product.
• Cold fracture resistance - thermal cycle -30°C for 48 hours no defects.
• Water flow capacity - hydraulic gradient i =0.015/0.037 1/(m.s) lengthwise/ 0.022 1/(m.s) crosswise.
