EL1100

Verified by manufacturer 3 months ago

phs Warner Howard

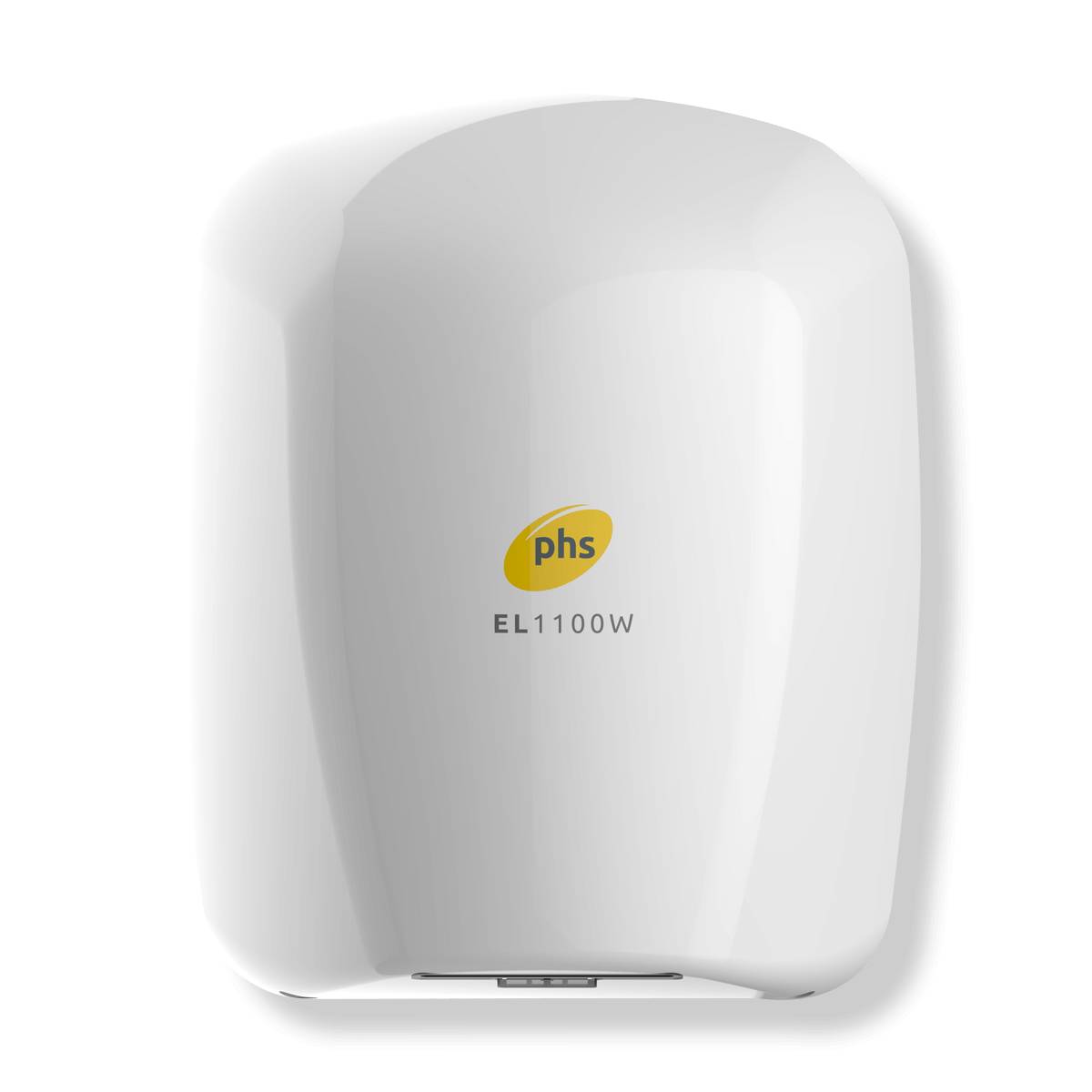

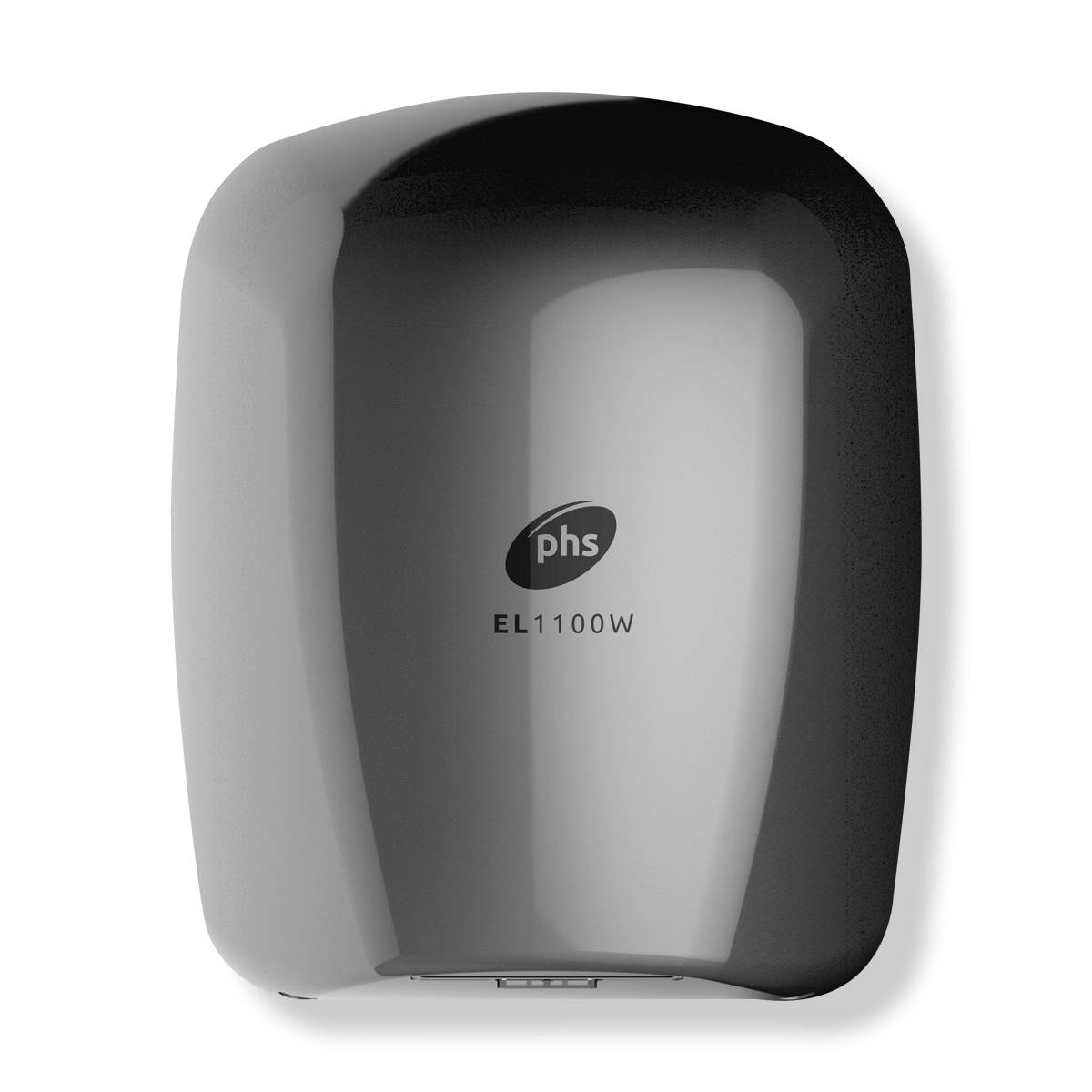

The EL1100W is a high speed, low energy, warm air hand dryer which offers great value for money. Its lightweight yet durable construction is ideal for most washroom environments.

Jump to:
BOS
+44 (0)370 8504352 Website

Application

Suitable for any washroom environment.

Description

A high speed, low-energy, warm air hand dryer with a lightweight-yet-durable construction.

Features and benefits:

  • Low energy 1100 W rating.
  • Slimline design.
  • Very lightweight at 2.3 kg, making it suitable for partition walls.
  • Warm air for use in cooler washrooms.
  • Hygienic, as touchable parts are coated in antimicrobial additive to reduce build-up of bacteria, germs and viruses.
  • Durable ABS plastic construction.
  • Fast drying time.

General information

Color

Black

Silver

White

Finish

Anti-microbial

Material

Other

Shape

Oval

Length

268 mm

Width

221 mm

Height

149 mm

Warranty description

Two year

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

CAWS

N13/472 Hand dryers

Product range

Low Energy Range

Specification data - Hand dryers

Form

Warm air.

Operation

Automatic.

Timer

Fixed.

Electrical supply

-

Power rating

1.1 kW.

Rated operational voltage (Ue)

230 V a.c.

Frequency

50 Hz.

Body

-

Material

ABS plastics.

Colour

Black.

Guidance for specification option:

091229PR

Nickel.

Guidance for specification option:

091228PR

White.

Guidance for specification option:

091227PR

Ingress protection (minimum)

IP22.

Dimensions

268 x 221 x 149 mm.

Product Reference

EL1100W Warner Howard Hand Dryer

Speed

40 000 rpm.

Weight

2.3 kg.

Sustainability data

Country of material origin

China

Country of product manufacture

China

Material

Other

Recyclability

Most parts can be recycled

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

1

IFC
-

1

Literature

EL1100W Low Energy Hand Dryer

EL1100W Low Energy Hand Dryer

EL1100W Spec Sheet

EL1100W Spec Sheet
