Elisa Bath Overflow Filler
Verified by manufacturer 10 months ago
ACC018CP
ACC018CP
Bath overflow filler.
Application
Bath overflow.
Description

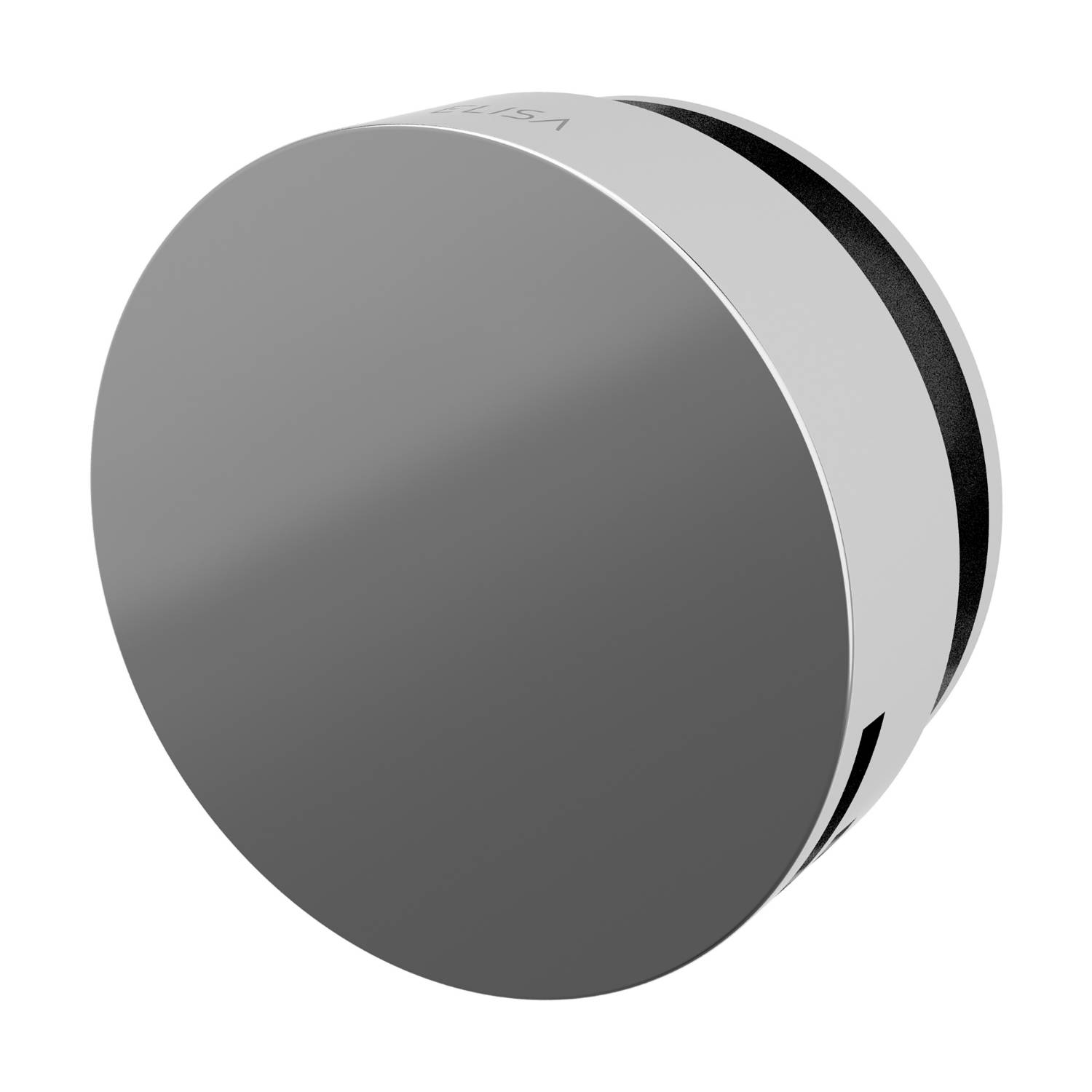

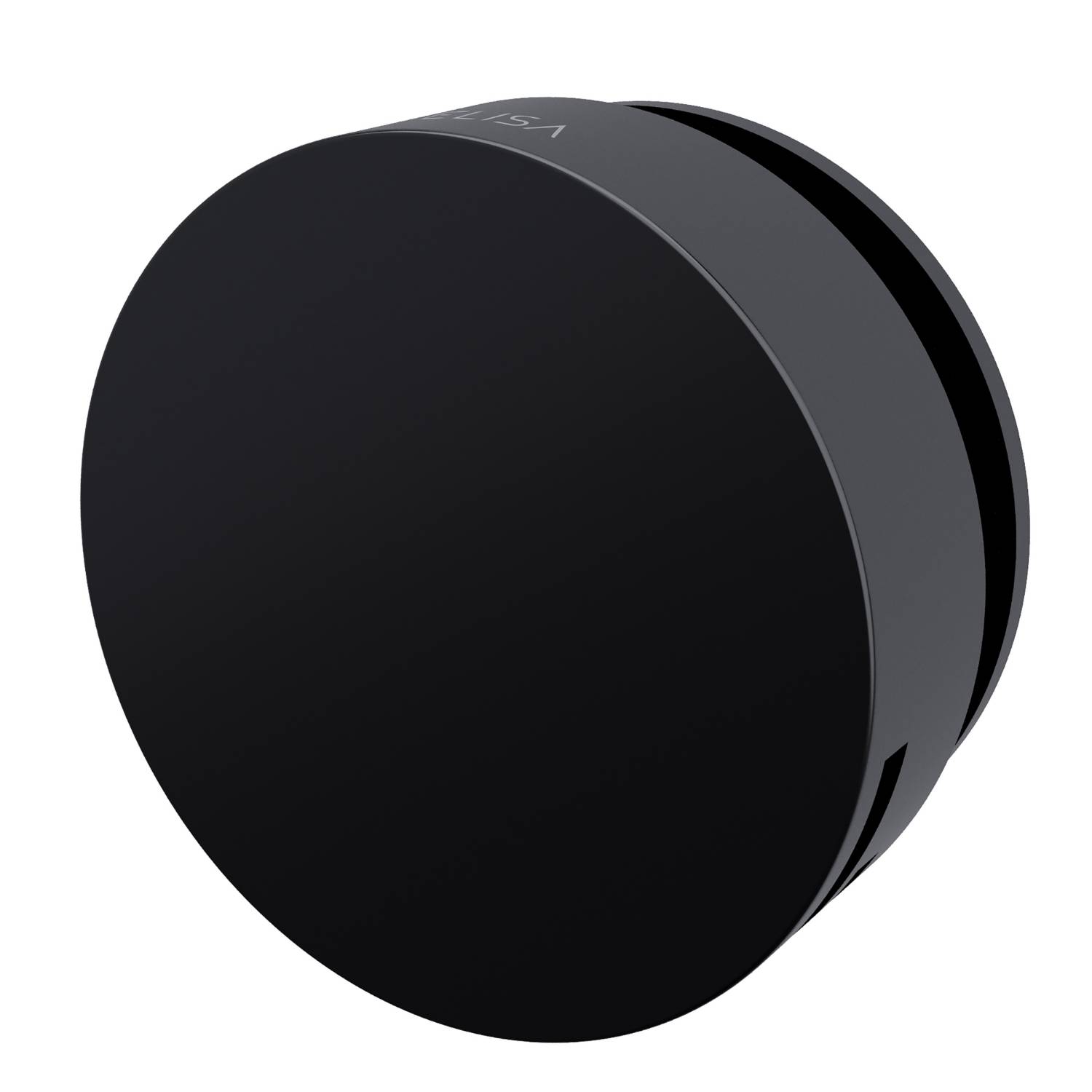

Round dual function bath fill outlet and overflow in a durable polished chrome, matt black or brushed brass finish.
Features and benefits:
- Metal.
- Available in three finish options: polished chrome, matt black or brushed brass finish.
- Elisa branded.
- Dual function overflow and filler.
General information
Color | Black Silver Guidance for specification option: Chrome. Other Guidance for specification option: Brass. |
Finish | Gloss Matt Brushed |
Material | Metal Plastic |
Shape | Other |
Length | 70 mm |
Width | 70 mm |
Height | 25 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Specification data - Bath wastes
Form | Combined pop-up waste and overflow. |
Tail pattern | Slotted, with overflow pipe. |
Materials | |
Body | Metal and plastic. |
Finish and colour | Gloss chrome. |
Size | DN 70 (2½ in).Manufacturer guidanceBath fill Diameter. |
Depth | 25 mm. Manufacturer guidanceBath fill depth. |
Weight | 1.2240 kg. |
Bar | 0.1—5. Manufacturer guidanceMin-max. |
Temperature | 5—65℃. Manufacturer guidanceWater supply temperature. |
Sustainability data
Country of product manufacture | China |
Literature
Elisa Rosa, Emilie and Antonella Brochure Issue 01
