Elite 60 Range - Wall System
Verified by manufacturer 4 months ago
Insulated built-up wall system with a half-round external profile.
Application
Suitable for commercial and offices, distribution centres, education, industrial, mechanical, retail and transport applications.
Description

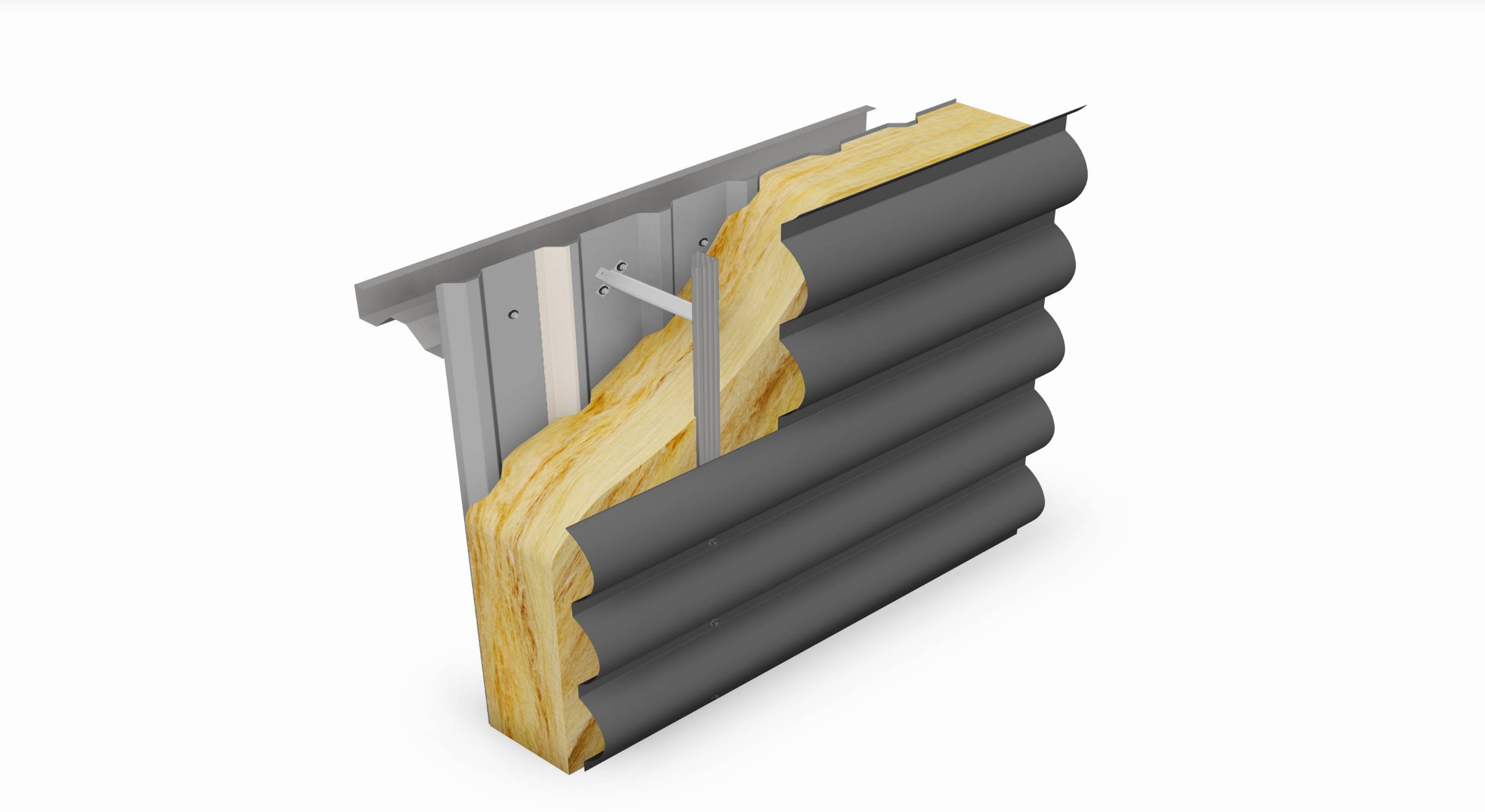

Euroclad Elite 60 Range is a horizontal cladding solution. The Half Round profile (EC 50- 200-1000 Wall) is fixed directly to the Quattro spacer system and compressed quilt insulation is housed between the outer sheet and the EC 19-167-1000 Liner 2 liner sheet. This is a guaranteed system which also meets project specific thermal and acoustic performance requirements.
Features and benefits:
- 0.7 mm EC 50-200-1000 Wall half-round external steel profile in horizontal orientation.
- 0.4 mm EC 19-167-1000 Liner trapezoidal internal steel profile.
- Quattro Spacer System featuring Quattro Bar and Quattro Bracket.
- 0.040λ (Lambda) quilt insulation.
- External steel sheet available in a range of coatings and colours.
General information
Color | Green Blue Brown Black Beige |
Finish | Coated |
Material | Steel Glass mineral wool Mineral wool Mineral fibre |
Shape | Elliptical |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year Guidance for specification option: Guaranteed for up to 30 years with the Elite Plus system guarantee. |
