Elite Aluminium Stair Edging
Verified by manufacturer 1 month ago
EAR1140
EAR1140

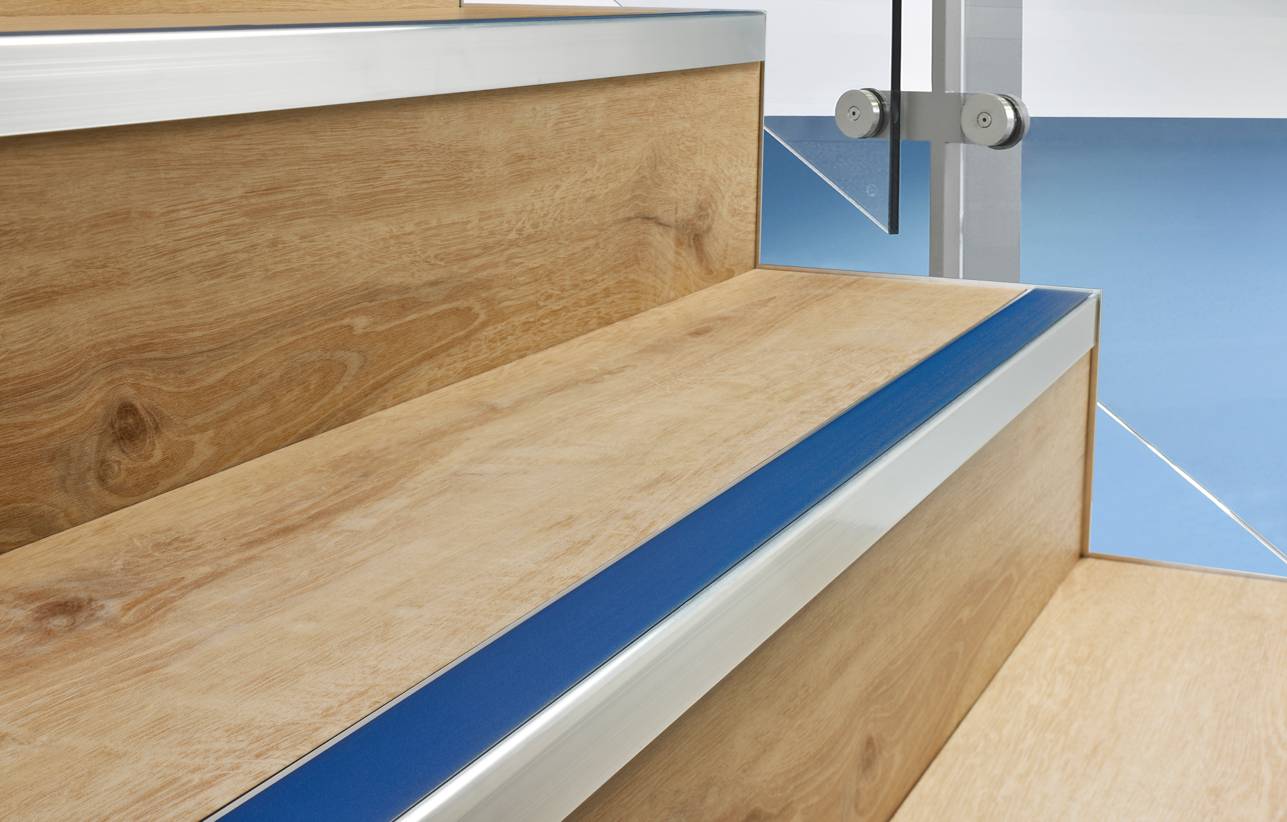

Aluminium stair edgings with concealed fixings, for interior use.
Application
To be used in conjunction with all types of floor coverings, and are suitable for all commercial applications. Suitable for interior use.
Description
Aluminium stair edgings with concealed fixings, for interior use.
Features and benefits:
- An extensive range of attractive and hardwearing stair edgings comprising aluminium channels with slip-resistant inserts.
- The Gradus Elite stair edging allows the aluminium channel to be fixed to the step first, with the insert fitted once the channel has been secured. This offers a concealed fixing and eliminates the need for screw head plugs.
- The Gradus XT Aluminium range features an extended insert design that provides maximum safety underfoot and a unique insert locking mechanism for improved performance, reducing the risk of slips, trips and falls on stairs. See manufacturer’s literature to find out about the XT Aluminium profiles.
General information
Color | Black Other Silver Grey |
Material | Aluminium PVC |
Uniclass | |
CAWS | L30/10 Wood stairs L30/590 Applied stair nosings M50/75 Stair nosings and trims M50/750 Stair nosings and trims M51/550 Stair nosings and trims |
Specification data - Rigid stair nosings

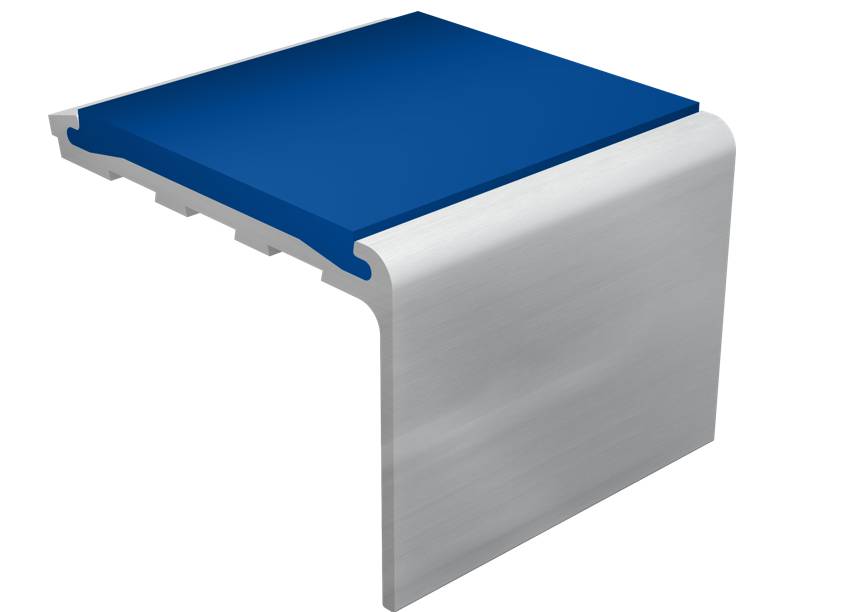

Profile | Square, ramp back, 60 mm tread, 35 mm riser, single channel. |
Base section | |
Material | Aluminium. |
Inserts | |
Material | PVC. |
Colour | Burgundy.Guidance for specification option: LRV: 5.70. Buttercup.Guidance for specification option: LRV: 55.54. Canvas.Guidance for specification option: LRV: 53.27. Clay.Guidance for specification option: LRV: 47.97. Cloud.Guidance for specification option: LRV: 28.57. Coffee.Guidance for specification option: LRV: 6.05. Duckegg.Guidance for specification option: LRV: 47.72. Evergreen.Guidance for specification option: LRV: 6.69. Glacier.Guidance for specification option: LRV: 42.09. Ink.Guidance for specification option: LRV: 4.96. Jade.Guidance for specification option: LRV: 53.98. Jet.Guidance for specification option: LRV: 4.56. Lead.Guidance for specification option: LRV: 12.77. Linen.Guidance for specification option: LRV: 38.59. Midnight.Guidance for specification option: LRV: 6.56. Ocean.Guidance for specification option: LRV: 8.00. Photoluminescent.Guidance for specification option: LRV: 57.59. Poppy.Guidance for specification option: LRV: 10.39. Sky.Guidance for specification option: LRV: 52.63. Snowdrift.Guidance for specification option: LRV: 83.77. Steel.Guidance for specification option: LRV: 26.99. |
Insert | ELINS40. Guidance for specification option: 40 mm, for profiles with reference number ending in '40'. ELINS50. Guidance for specification option: 50 mm, for profiles with reference number ending in '50'. |
Side trim | Not applicable. Guidance for specification option: For bullnose and kinked edging. Not required. TA5. Guidance for specification option: Not available with ELA11750, ELA12740, ELA51750 or ELA91150. TA5C. Guidance for specification option: Not available with ELA11750, ELA12740, ELA51750 or ELA91150. TA42. |
Fixing | Gradus Grip (adhesive only). Mechanical (screw) and adhesive fix. |
Sustainability data
Material | Aluminium PVC |
