Elwick - Freestanding Bath

Verified by manufacturer 4 months ago

Victoria + Albert Baths

Freestanding bath. 175 L capacity.

Jump to:
07443186488 Website

Application

Luxury freestanding bath suitable for domestic and hospitality settings.

Description

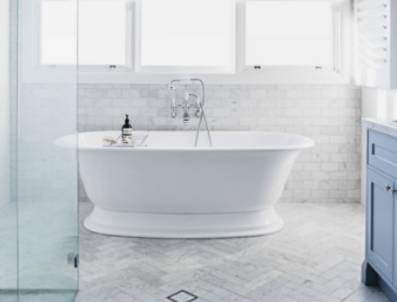

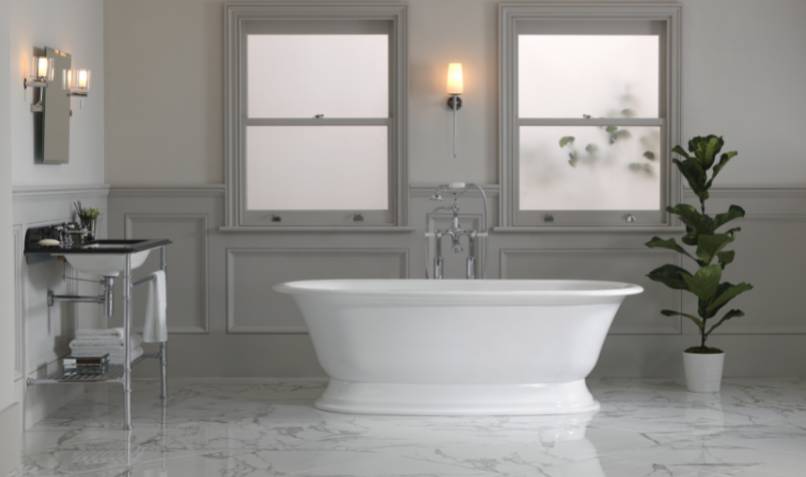

Double-ended freestanding bath, mounted on a pedestal base.


Features and benefits:

  • Pedestal base hides away waste plumbing.
  • Subtle rim detailing brings the traditional form into the modern day.
  • Made with QUARRYCAST™ a unique blend of Volcanic Limestone™ and high-performance resins.
  • Delivers unrivalled strength, durability, and beauty.
  • Available in a range of RAL colours.

General information

Color

White

Finish

Gloss

Material

Limestone

Stone

Shape

Oval

Length

1902 mm

Width

910 mm

Height

622 mm

Warranty description

Eight year

Guidance for specification option:

Commercial use.

25 year

Guidance for specification option:

Residential use.

Uniclass

Pr_40_20_06_08 BathsPrimary

CAWS

N13/35 Baths

N13/355 Baths

Specification data - Baths

Form

Free-standing.

Materials

QUARRYCAST™ volcanic limestone.

Colour

White.

Size

1902 x 910 mm.

Volume to overflow (maximum)

175 L.

Water supply, overflow and waste holes

-

Water supply

No tap holes.

Material Finish

Gloss.

Weight

95 kg.

Dimensions – height

622 mm.

Recommended discharge pipe

Not required.

K-30-xx.

K-31-xx.

Manufacturer guidance

(Recommended wastes):

BIM objects

Platform Compatible Version
Revit
-

1

Literature

EU_Elwick_2022

EU_Elwick_2022

Case studies

Bronte Beach, Sydney, NSW, Australia (Elwick)

Bronte Beach, Sydney, NSW, Australia (Elwick)

Six Senses Ibiza  Spain (Elwick)

Six Senses Ibiza Spain (Elwick)
