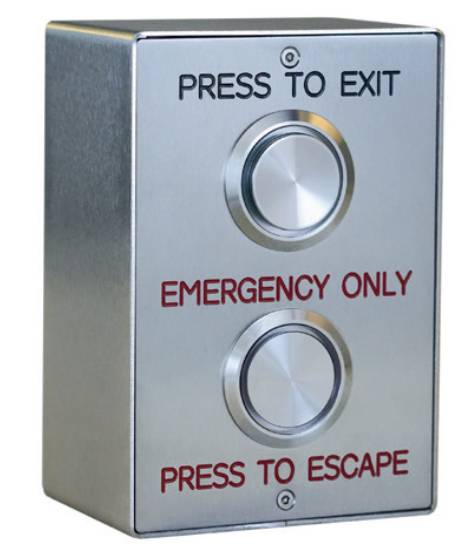

EM24EX Self-Resetting Emergency Exit System

Verified by manufacturer 22 days ago

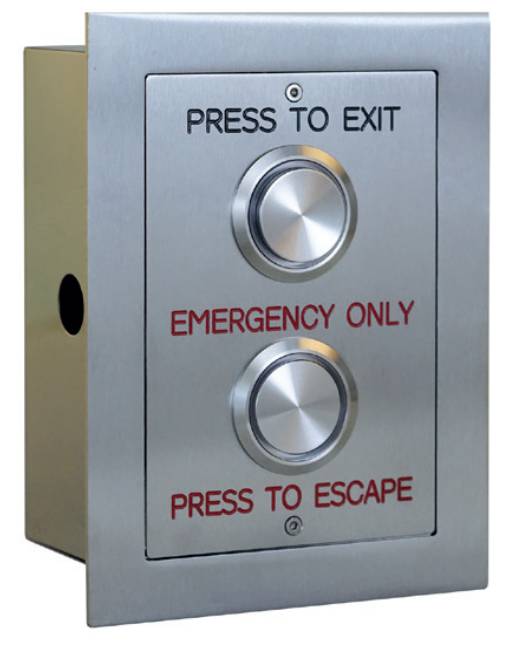

EM24EX-F - Flush flanged

IP Door Entry Ltd Variant:

Emergency exit system/device. Exit Buttons - RTE for Access Control Systems.

Jump to:
+44 08000 156 496 Website

Application

For 12 V d.c. fail-safe locking only when green breakglass unit is not used due to security risk of regular abuse and/or to comply with Secured by Design.

Description

This is a safety device to guarantee escape in the event of an emergency. Operates in conjunction with a fail-safe relay device (supplied pre-cabled). The double-pole bottom button also activates a latching hold unlocked function.


Installation instructions must be clearly adhered to. Correct installation could be a matter of life and death.


Handsfree options available.

General information

Color

Silver

Material

Stainless steel

Shape

Rectangle

Width

145 mm

108 mm

Height

195 mm

158 mm

150 mm

Uniclass

Pr_75_30_30_71 Request-to-exit buttonsPrimary

CAWS

W90/372 Request-to-exit buttons

Specification data - Request-to-exit buttons

Security grading

To BS EN 60839-11-1, Grade 2.

Material and finish

Stainless steel.

Colour

Silver.

Mounting arrangement

Fully recessed.

Engraving

'PRESS TO EXIT', 'EMERGENCY ONLY' and 'PRESS TO ESCAPE'.

Operation

Momentary mechanical switch.

Switch rating

2 A.

Button characteristics

Round push button.

Execution

-

Manufacturer guidance

Consult manufacturer for execution requirements.

Ingress protection (IP) rating

IP65.

Impact resistance

IK09.

Literature

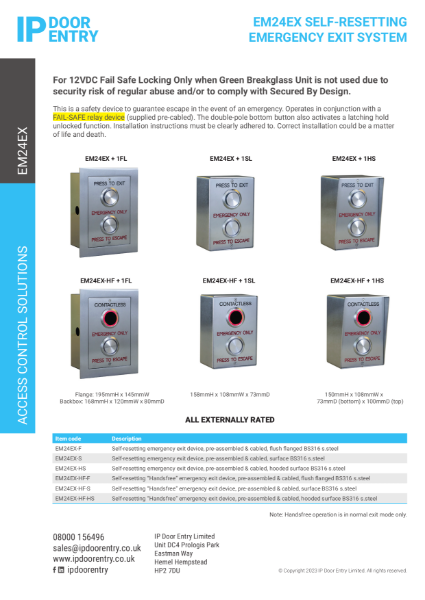

EM24EX Self-Resetting Emergency Exit System Data Sheet

EM24EX Self-Resetting Emergency Exit System Data Sheet

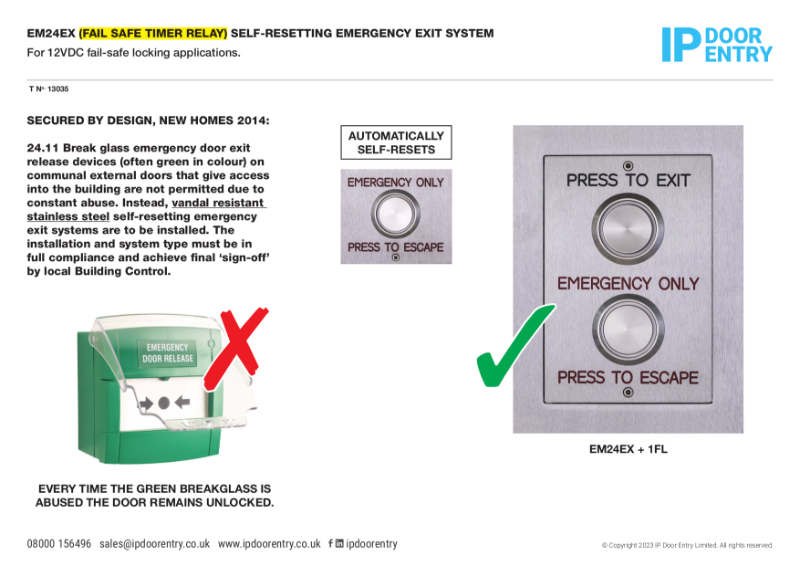

EM24EX (Fail Safe Timer Relay) Self-Resetting Emergency Exit System

EM24EX (Fail Safe Timer Relay) Self-Resetting Emergency Exit System

EM24EX-HF Handsfree And Self-Resetting Emergency Exit System

EM24EX-HF Handsfree And Self-Resetting Emergency Exit System

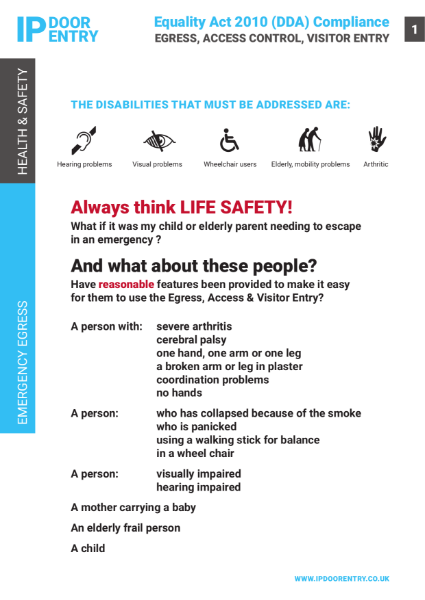

Emergency egress, health and safety

Emergency egress, health and safety
