em.tube™ - Rooflight [Tubular]

Verified by manufacturer 5 months ago

Whitesales Rooflights

A tubular skylight system to transmit natural daylight to otherwise poorly lit areas.

Jump to:
+44 (0)1483 917580 Website

Application

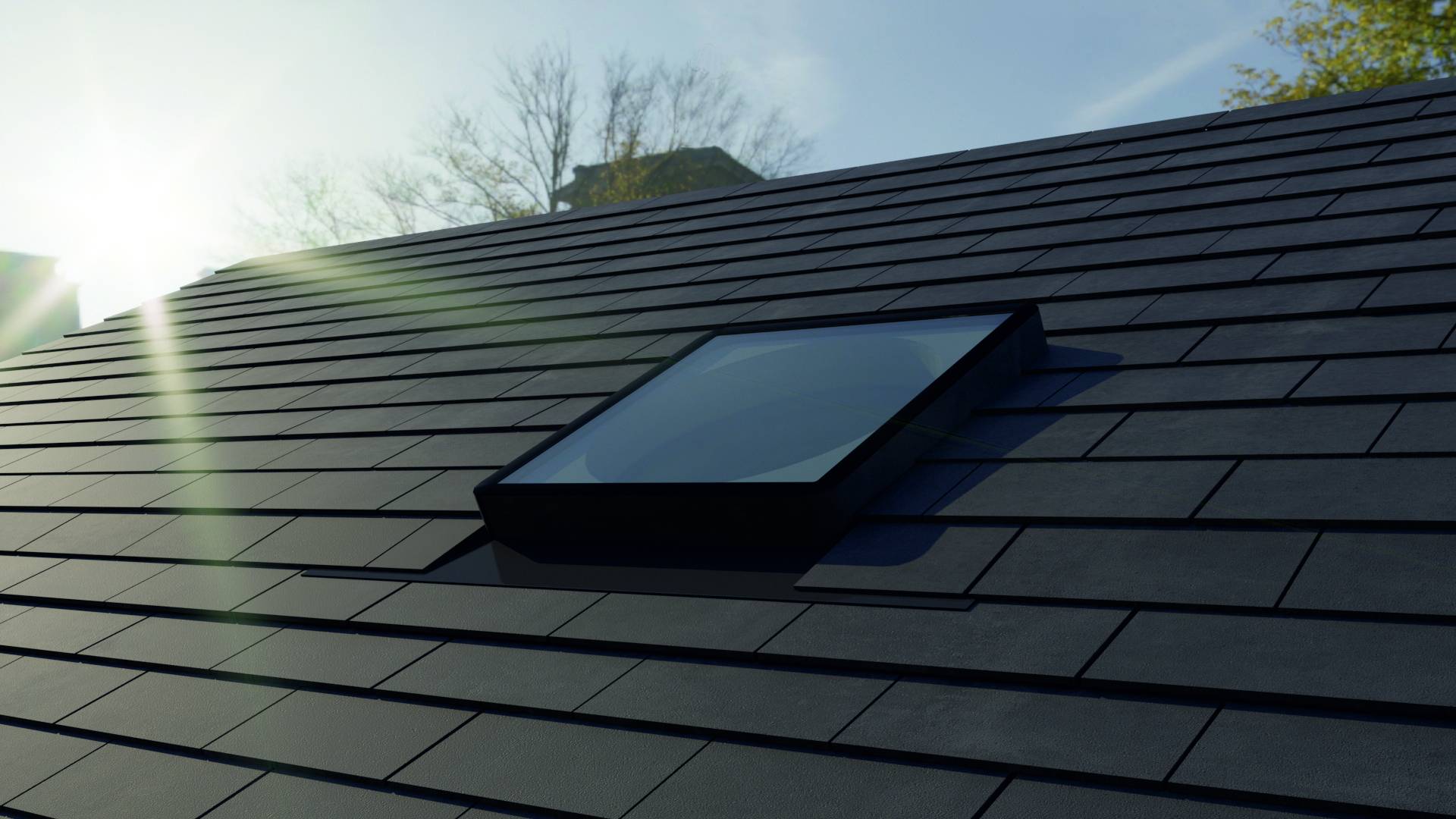

The skylights can be installed into new or existing roofs with ease and can be accommodated within most roof construction types.

Description

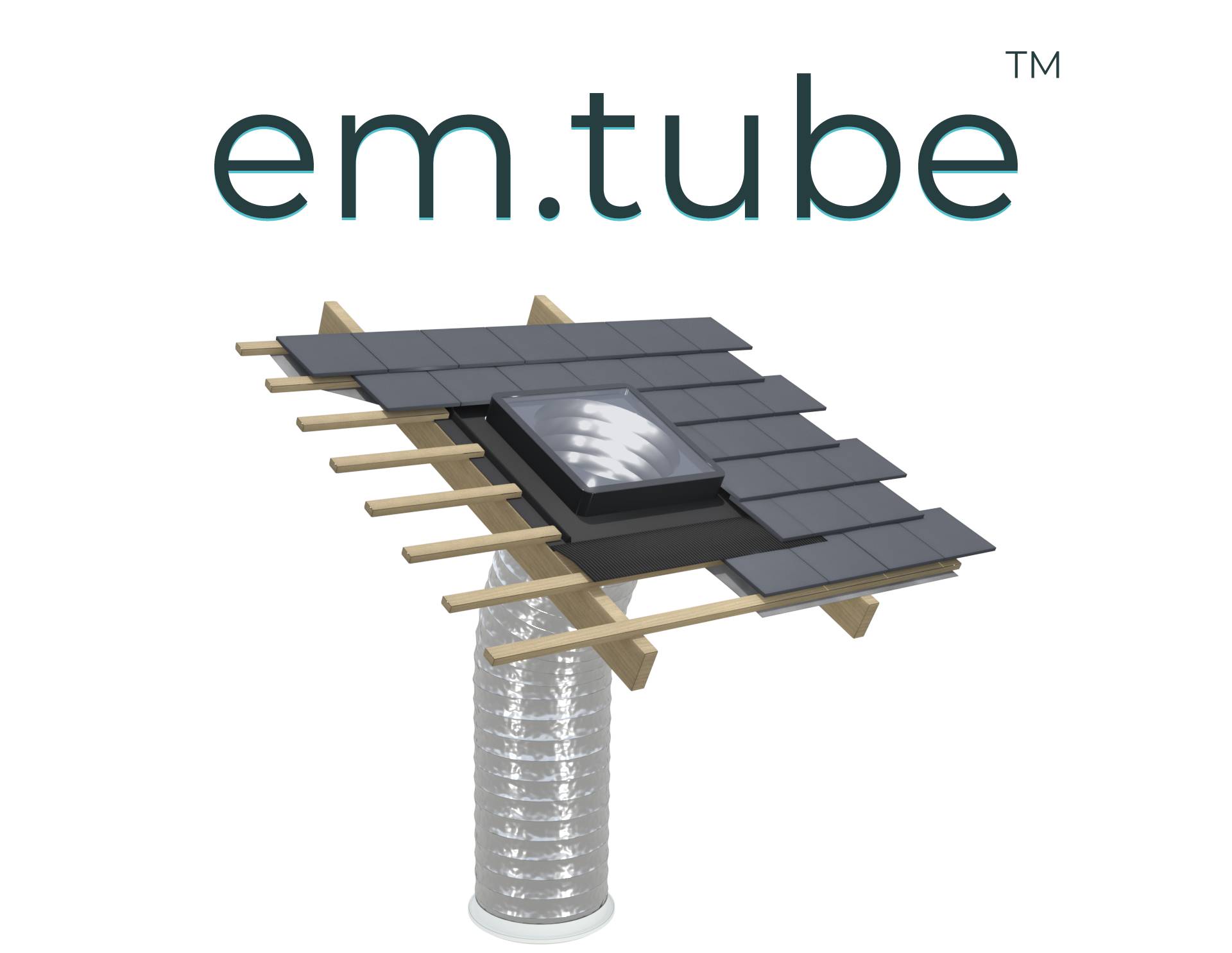

em.tube™ Tubular Skylights effectively transmit natural daylight to internal rooms or areas that do not receive adequate daylight. Natural daylight is captured at roof level and directed downwards through rigid or flexible tubes and then diffused at ceiling level. With the ventilation options available the units can assist compliance with Building Regulations.


Features and benefits:

  • Up to 20 times more light than a 100 W bulb.
  • Minimal disturbance to roof and ceiling.
  • Comprehensive range of sizes and accessories.
  • Double glazed ceiling diffuser.
  • Low profile polycarbonate UV resistant dome.
  • Flat, tile and slate roof options available.

General information

Color

Other

Finish

Other

Material

Polycarbonate

Aluminium

Glass

Shape

Square

Length

350 mm

450 mm

550 mm

Width

350 mm

450 mm

550 mm

Warranty description

Ten year

Uniclass

Pr_30_59_72_21 Daylight pipesPrimary

CAWS

L10/495 Daylight pipe

Product range

em. Range

Specification data - Daylight pipes

Material

Plastics.

Diameter

-

Manufacturer guidance

Size:

See manufacturer's literature for product size considerations depending on location.

Length

-

Manufacturer guidance

  • Rigid tube system: Up to 1.0 m (0.7 m for flat roof kits).
  • Flexible tube system: Up to 3.0 m.


Accessories

Not required.

Em-Curb upstand.

Guidance for specification option:

Em-Curb upstand.

Extension piece, 625 mm.

Extension piece, 1250 mm.

Fire Collar.

Flexible extension tubing.

Light kit.

Security collar.

Twin-skin diffuser.

Tube

Flexible.

Guidance for specification option:

Suitable for shorter tube length and easier to install.

Rigid.

Guidance for specification option:

Suitable for longer tube lengths.

Flashing kit

Flat roof.

Pitched, slate roof.

Guidance for specification option:

For 8–16 mm tile/ slate thicknesses.

Pitched, tile roof.

Guidance for specification option:

For 14–32 mm tile/ slate thicknesses.
