Ensign Drain Below Ground Drainage System

Name: Ensign Drain Below Ground Drainage System
Brand: Pam Building
SKU: 2q1gEaFhwdmYRUm3yQ7ADk

Verified by manufacturer 12 days ago

Pam Building

Product certifications:

BSI Kitemark
Certificate type
EPD
Certificate type

Cast iron below ground drainage system manufactured to BS EN 877

Jump to:

+44 (0)1952 262 529 Website

Application

The Ensign Drain range is a suitable choice for all below ground applications to minimize risk and maximize life.

Description

High-performance cast iron pipes and fittings designed for below ground use. Smartly designed to drain wastewater away when exposed to standard and/or hot and/or aggressive discharge. Highly resistant to external stresses that a below-ground application can put on a pipe system due to its strength and its zinc coating it can resist such an aggressive environment.

Features and benefits:

Compliant with standard EN 877.
Long-lasting operational safety thanks to the robustness and stiffness (around 700 kN.m) of cast iron and the use of flexible mechanical couplings.
Long-life due to the high-quality application of a zinc layer in the coating process.
Ease of installation due to mechanical couplings assembled with simple tools.
Recycled content 99%.
100% recyclable.
Hot water resistance: 24 h at 95°C.
Salt spray resistance: 1500 h.
Thermal cycle resistance: 1500 cycles between 15°C and 93°C.
Chemical resistance for 2≤ pH ≤13, up to 80°C.

General information

Color	Grey
Finish	Painted Epoxy Coated Zinc plated
Material	Cast iron
Shape	Other
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Pr_65_52_07_34 Grey cast iron below-ground drainage pipes and fittingsPrimary
CAWS	R12/110 Below ground drainage system R12/334 Pipes, bends and junctions – cast iron – grey

Specification data - Grey cast iron below-ground drainage pipes and fittings

Classification data
Standard	To BS EN 877.
Properties	-
Sizes (nominal)	DN 100. DN 125. DN 150. DN 200. DN 250. DN 300. DN 400. DN 500. DN 600. Manufacturer guidance Consult manufacturer and select components needed as per project requirements.
Corrosion protection	-
External	Grey, anti-corrosive acrylic primer paint. Guidance for specification option: Average dry film thickness 40 µm. Layer of anti-corrosive zinc coating of 130 g/m² underneath.
Internal	Two-component ochre-coloured epoxy coating. Guidance for specification option: Average dry film thickness of 250 µm.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	99%.
Jointing type	Mechanical jointed coupling.

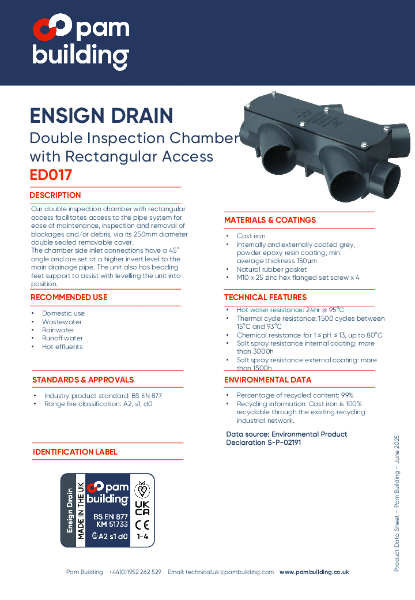

Integral accessories	Not required. Expansion plugs. Bellmouth gully inlet body only. 200 mm plain grating to suit Bellmouth gully inlet. Gully inlet body with fitted sealing plate. 45° inspection chamber circular access one branch each side. 45° inspection chamber rectangular access one branch each side. 45° inspection chamber rectangular access two branches each side. Two-part, touch-up paint spray for grey system. Manufacturer guidance Consult manufacturer and select components needed as per project requirements.
Bends	Not required. 88° short radius bends. 45° short radius bends. 30° short radius bends. 15° short radius bends. 45° medium radius bends. 88° medium radius bends. 88° medium and long radius bends. 22° long radius bends. 88° heel rest bends. 88° long radius bends with rear access. 88° medium radius bends with rear access. 45° long tail bend. Manufacturer guidance Consult manufacturer and select components needed as per project requirements.
Branches	Not required. 69° single branches (equal and unequal). 45° single branches (equal and unequal). 88° single branches (swept radius). 88° single branches (swept radius) with rear access. 88° double branches (swept radius) (equal and unequal). 45° double branches (equal and unequal). 69° double branches. Manufacturer guidance Consult manufacturer and select components needed as per project requirements.
Brackets	Not required. Ductile iron pipe brackets. Manufacturer guidance Consult manufacturer and select components needed as per project requirements.
Couplings	Not required. Two-piece ductile iron coupling. Push-Fit coupling. Pam-GRIP stainless steel high performance coupling with grip. Pam-FLEX stainless steel high performance coupling Pam-GRIP. Stainless steel slim high performance coupling with grip. Pam-FLEX stainless steel slim high performance coupling. Manufacturer guidance Consult manufacturer and select components needed as per project requirements.
Pipes	Not required. Access pipe with round door. Access pipe with rectangular door. Taper pipes. Taper pipes to BS 437 (timesaver drain 225 mm). Manufacturer guidance Consult manufacturer and select components needed as per project requirements.
Connector	Not required. Ensign to supersleve connectors.
End fixings	Not required. Blank ends. Blank ends with 50 mm push-fit connector. Manufacturer guidance Consult manufacturer and select components needed as per project requirements.
Traps	Not required. 'P' trap plain (supplied with support lug). 'P' trap with head access (supplied without support lug only). Manufacturer guidance Consult manufacturer and select components needed as per project requirements.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe Guidance for specification option: Pipes manufactured in France Fittings in UK
Country of product manufacture	Europe Guidance for specification option: Pipes are manufactured in France. Fittings in the UK.
Manufacturing plant location	52170 Bayard-sur-Marne, France Telford TF1 5AD, UK
Material	Cast iron
A1-A3 (production stage)	Embodied carbon as defined in BS EN 15804
Normalised unit	1.495 kg CO₂ eq/kg
Declared unit	11.15 kg CO₂ eq/m Certified
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	99 %
Expected Life	70 year
