EPS Formwork and Falsework

Verified by manufacturer 1 year ago

Filcor 190

Cordek Ltd Variant:

A lightweight, versatile material comprising of expanded polystyrene (EPS) for both permanent and temporary formwork and falsework applications.

Jump to:
+44 (0)1403 799600 Website

Application

For permanent and temporary formwork applications.

Description

EPS shuttering can be formed to almost any size and profile and includes square and circular formwork for the construction of columns, walls etc.

General information

Color

White

Material

Expanded polystyrene (EPS)

Guidance for specification option:

Expanded polystyrene (EPS).

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_25_71_29_62 Permanent insulation formwork (PIF)Primary

CAWS

E20/405 Column shutters

Specification data - Permanent insulation formwork (PIF)

Designation

-

Fire-retardant class

Euroclass E.

Compressive strength (minimum) at 10% compression

500 kpa.

ThermalConductivity

0.033 +W/mK.

Facing

Guidance for specification option:

To suit requirements of application based upon required concrete finish.

Colour

White.

Material:

Expanded polystyrene (EPS).

Shape

Guidance for specification option:

To suit the requirements of application.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Expanded polystyrene (EPS)

Guidance for specification option:

Expanded polystyrene (EPS).

Recyclability

100%

Guidance for specification option:

Expanded polystyrene (EPS) can be fully recycled.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Case studies

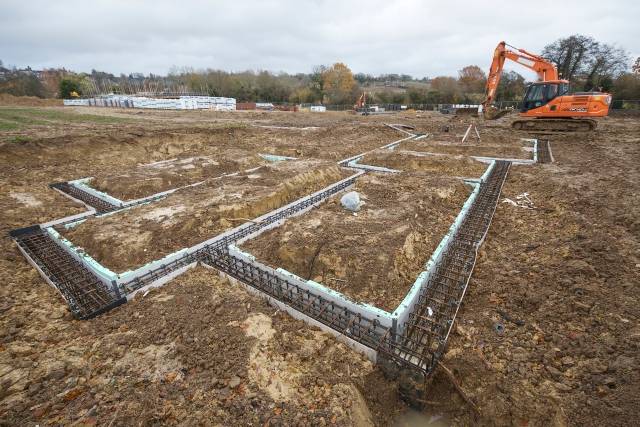

Ely Southern Bypass

Ely Southern Bypass

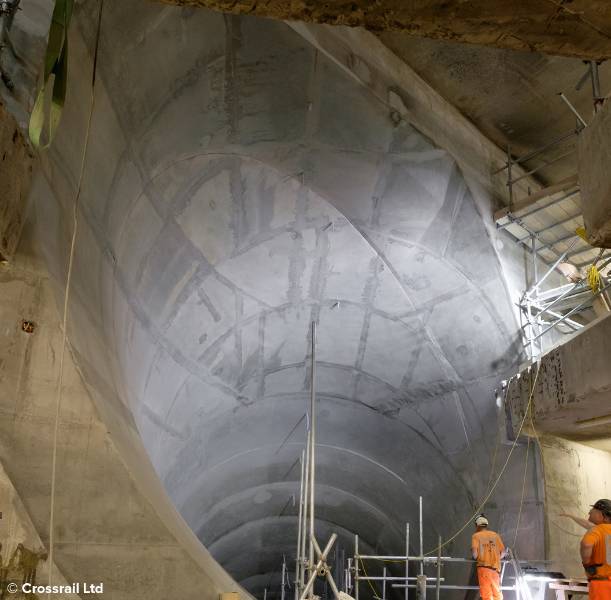

Farringdon Station Escalator Shaft 2

Farringdon Station Escalator Shaft 2

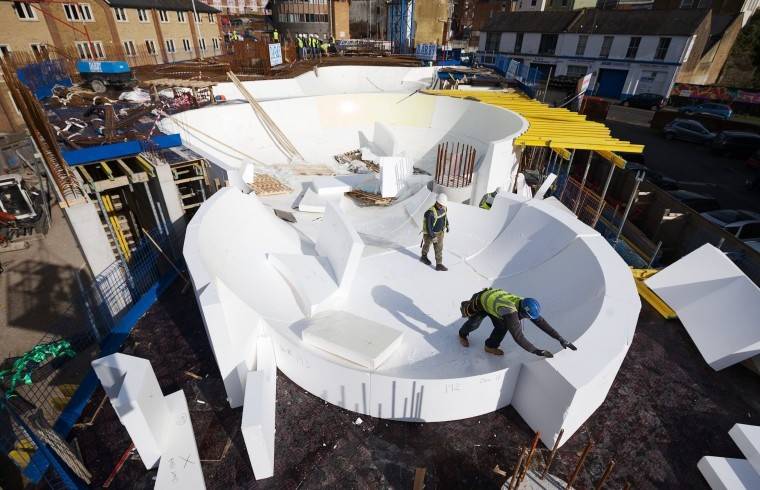

Folkestone Urban Sports Park

Folkestone Urban Sports Park

Similar products from Cordek Ltd

Cellform HX

Cellform HX

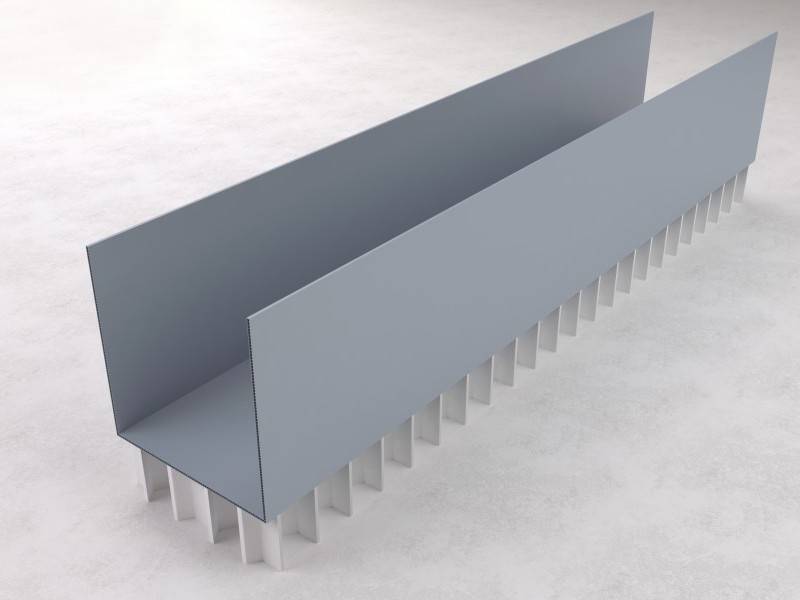

Heaveguard
