EQUITONE [pictura] - Fibre Cement Rainscreen Cladding

Verified by manufacturer 2 months ago

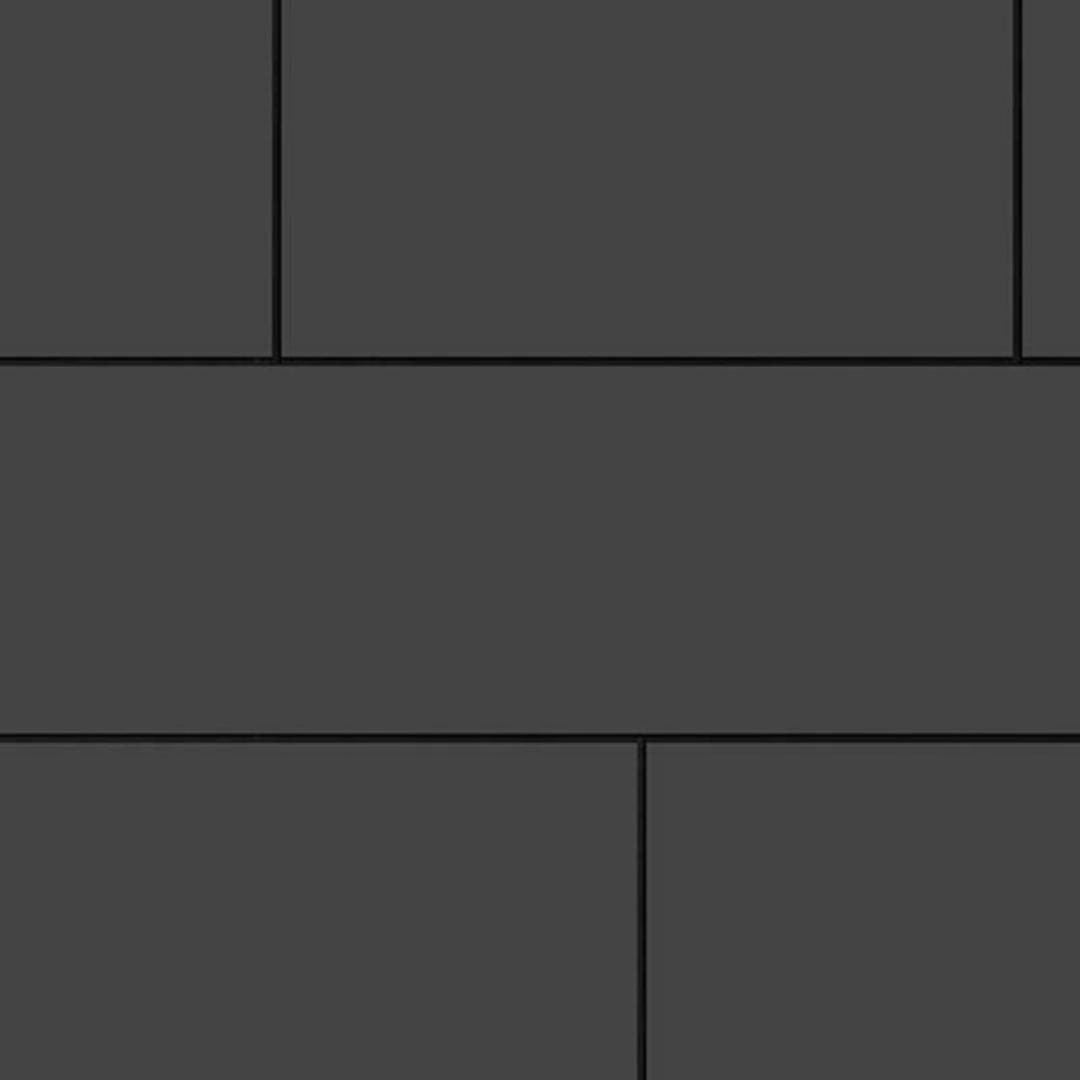

Matt Black PA041

EQUITONE Variant:
Third party certifications:
  • DoP

    DoP

    Certificate type

  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • Cradle to Cradle Certified

    Cradle to Cradle Certified

    Certificate type

  • EPD

    EPD

    Certificate type

EQUITONE [pictura] is a fibre cement rainscreen cladding material with a UV cured top layer, which offers a selection of colour coatings in a smooth and ultra matt finish.

Jump to:
BOS
+44 (0)1283 501 555 Website

Application

Suitable for a ventilated rainscreen cladding / facade system.

Description

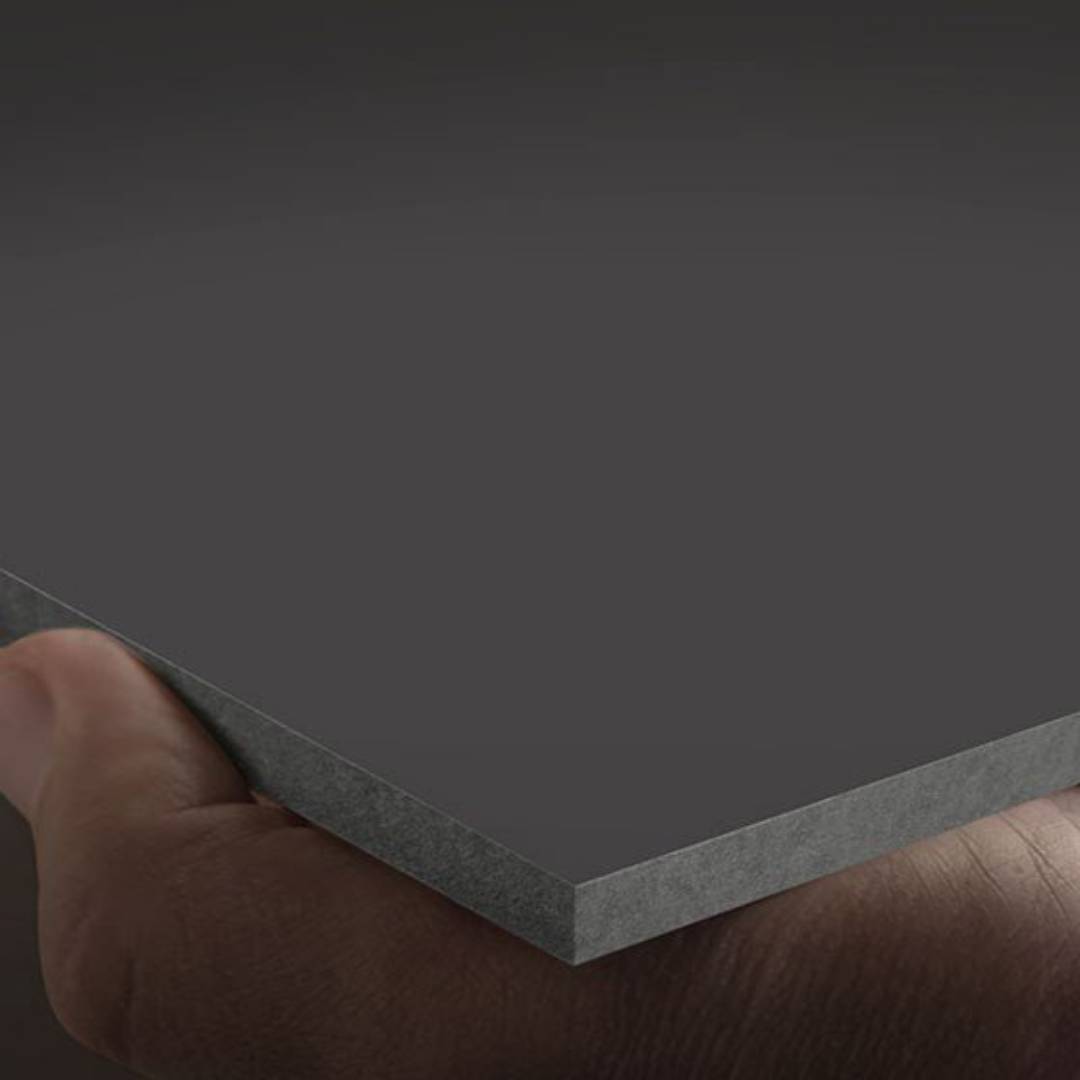

EQUITONE [pictura] is a high density, fibre cement cladding panel suitable for use as part of a decorative rainscreen facade system. The UV cured top layer of the panel is smooth and easily cleanable , acting as an anti-graffiti coating.


Features and benefits:

  • Fire Classification A2-s1,d0.
  • BBA approved.
  • Sound insulating.
  • Resistant to extreme temperatures and frost.
  • Water resistant (if in compliance with application guideline).
  • Resistant to many living organisms (fungi, bacteria, insects, vermin, etc).
  • Resistant to many chemicals.
  • Environmentally friendly, no harmful gas emissions.
  • Material appearance due to transparent coating.
  • Strong, rigid fibre cement panels.
  • EPD available.

General information

Color

Beige

Black

Blue

Brown

Cream

Show more

Manufacturer guidance

Available in 20 colours.

Finish

Matt

Manufacturer guidance

EQUITONE [Pictura] has a smooth, matt finish with no visible fibres.

Material

Fibre cement

Manufacturer guidance

Fibre cement - made of water, Portland cement, cellulose and natural minerals.

Shape

Rectangle

Manufacturer guidance

Can be easily cut into many shapes and sizes.

Length

2500 mm

3100 mm

Width

1250 mm

Uniclass

Pr_25_71_11_25 Fibre-reinforced cement boardsPrimary
Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systems
Ss_25_20_70_65 Pressure equalized rainscreen cladding systems
Ss_25_20_15_16 Concrete panel cladding systems

CAWS

H30/120 Fibre cement

H30/110 Fibre cement

H20/10 Sheet cladding

H20/155 Sheet cladding (attached to timber battens)

H92/120 Rainscreen cladding

H20/150 Sheet cladding (attached to metal support systems)

Specification data - Fibre-reinforced cement boards

Standard

To EN 12467, EN 15804.

Fire rating

To EN 13501-1, A2-s1,d0.

Weather resistance

To BS EN 12467, category A.

Manufacturer guidance

Resistant to extreme temperatures, frost, and is water resistant (if in compliance with application guidelines).

Bending strength

To BS EN 12467, Class 4.

Sheet size

-

Nominal thickness

8 mm.

12 mm.

Length

2500 mm.

3100 mm.

Width

1250 mm.

Edges

Open joints.

Fitted with a decorative trim profile.

Colour

Matt Black PA041.

Execution

-

Manufacturer guidance

Face Fix with either Rivet or Screw and Mechanical Secret Fix (MSF).


EQUITONE panels are installed to the ventilated rain screen principle, allowing air to flow in through the base and out at the top with a minimum 30 mm ventilation gap from the back of the panel to the structure/ insulation. EQUITONE is installed with 8–12 mm open joints and can be installed onto timber battens or a metal framing system in a range of designs. It is recommended that you consult the manufacturer's literature or technical team for further installation information.

Surface texture

Smooth.

Guidance for specification option:

EQUITONE [natura] has a tactile, smooth surface that allows the textures of the fibre cement to show through.

Joint size

8–12 mm.

Durability classification

To EN 12467, Category A.

Apparent density

To EN 12467, 1650 kg/m³.

BendingStrength

To BS EN 12467, 24 N/mm² (perpendicular); 18 N/mm² (parallel).

WaterImpermeability

To EN 12467, pass.

Freeze-thaw resistance

To EN 12467, pass.

Manufacturer guidance

Freeze Thaw Test Category A Panel.

Movement

0.01 mm/Mk.

Manufacturer guidance

Thermal movement.

ThermalConductivity

0.6 W/Mk.

Sustainability data

Country of product manufacture

Germany

Material

Fibre cement

Manufacturer guidance

Fibre cement - made of water, Portland cement, cellulose and natural minerals.

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.86 kg CO₂ eq/m²

Recyclability

-

Manufacturer guidance

With an expected lifetime of 50 years or more, EQUITONE panels often outlast the building lifetime. They are designed for disassembly with reversible fixation systems, allowing reuse in facade cladding or other applications.


All EQUITONE waste generated in the production phase is recycled in material loops, such as transportation to the cement kiln, where it is reactivated.
