Esplanade 6000 Primary Barrier Matting

Name: Esplanade 6000 Primary Barrier Matting
Brand: Gradus
SKU: txqv874hSUzyovBk3SvWkh

Verified by manufacturer 9 days ago

Carpet wipers

Gradus

Primary barrier matting for use at entrance doors in heavy use areas.

Jump to:

+44 (0)1625 428922 Website

Application

Suitable for use in zones 1 and 2; interior locations subject to heavy* foot and trolley traffic e.g. Large hospitals, offices, schools &

department stores. PVC scraper wipers are also suitable for external use.

*Note - Open construction medium wheeled traffic areas only. Bronze anodized finishes medium foot and wheeled traffic areas only.

Description

Primary barrier matting for use at entrance doors in heavy use areas.

Features and benefits:

Available in open or closed construction.
Constructed from either ECONYL® regenerated solution dyed nylon wipers from the Boulevard 6000 range or black PVC scraper wipers.
Wipers are supported with an aluminium base with PVC bridging strips that provide additional strength and are combined with PVC linking strips.
Aluminium base available in a choice of mill finish or a choice of three bronze anodized finishes.
Nylon wipers provide excellent soil and moisture retention and are available in a choice of eight colours.
Coordinates with Boulevard 6000 for a complete entrance matting solution.
PVC linking strips available in black or grey (closed construction).
A push-in hinge is available when installing in restricted areas.
Supplied with edging strips and divider bars.
Slip-resistance (HSL ramp test) - low risk of slip.
Can be manufactured to most shapes on approval of a template.

General information

Color	Blue Guidance for specification option: Indigo/ Galaxy/ Atlantic. Brown Guidance for specification option: Walnut. Grey Guidance for specification option: Shadow/ Nickel/ Nightfall. Black Guidance for specification option: pvc Green Guidance for specification option: Rosemary
Material	PVC Aluminium Econyl
Shape	Rectangle Other Square
Length	Bespoke
Width	Bespoke
Height	12 mm 18 mm
Warranty description	Ten year Seven year

Uniclass	Pr_35_57_11_26 Entrance matsPrimary
CAWS	N10/300 Entrance matting

Specification data - Entrance mats

Arrangement	Inset internal.
Dimensions	12 mm gauge. 18 mm gauge.
Material	ECONYL® carpet with mill finish aluminum base. Guidance for specification option: Suitable for heavy foot and wheeled traffic applications and is tested to withstand a weight of 150 kg per wheel (600 kg over four wheels) to a minimum of 30 000 passes (Note open construction is suitable for medium wheeled traffic areas only) and has a Ten year warranty. ECONYL® carpet with light bronze anodized aluminum base. Guidance for specification option: Interior only. Suitable for medium foot and wheeled traffic applications and is tested to withstand a weight of 100 kg per wheel (400 kg over four wheels) to a minimum of 30 000 passes and has a seven year warranty. ECONYL® carpet with mid bronze anodized aluminum base. Guidance for specification option: Interior only. Suitable for medium foot and wheeled traffic applications and is tested to withstand a weight of 100 kg per wheel (400 kg over four wheels) to a minimum of 30 000 passes and has a seven year warranty. ECONYL® carpet with dark bronze anodized aluminum base. Guidance for specification option: Interior only. Suitable for medium foot and wheeled traffic applications and is tested to withstand a weight of 100 kg per wheel (400 kg over four wheels) to a minimum of 30 000 passes and has a seven year warranty. Manufacturer guidance Base: Aluminium. Carpet: ECONYL® regenerated solution dyed Nylon (SDN).
Pattern	Tufted.

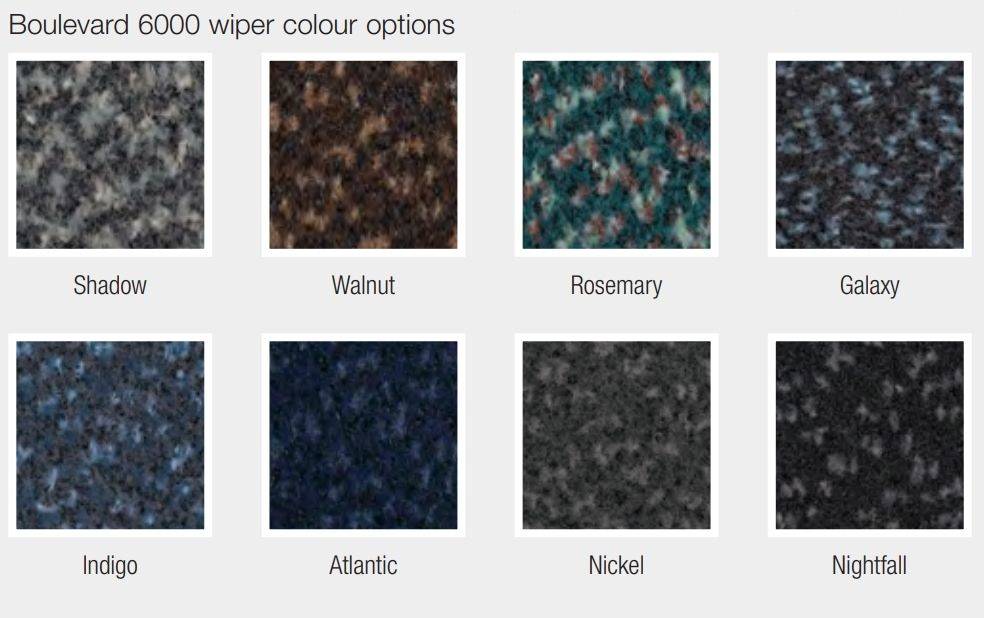

Colour	Shadow. Guidance for specification option: Light reflectance value (LRV): 5.36. Walnut. Guidance for specification option: Light reflectance value (LRV): 2.86. Rosemary. Guidance for specification option: Light reflectance value (LRV): 4.45. Galaxy. Guidance for specification option: Light reflectance value (LRV): 2.56. Indigo. Guidance for specification option: Light reflectance value (LRV): 4.01. Atlantic. Guidance for specification option: Light reflectance value (LRV): 1.90. Nickel. Guidance for specification option: Light reflectance value (LRV): 3.70. Nightfall. Guidance for specification option: Light reflectance value (LRV): 1.48.
Integral accessories	ADB012 - 12 mm aluminium divider bar. ADB018 - 18 mm aluminium divider bar. EPES40 - 40 mm pvc edging strip for 18 mm mat. EPES4012 - 40 mm pvc edging strip for 12 mm mat. ESPPIJHCC - Pvc push in hinge. FRB026 - 20 mm brass matwell frame. UMFA12 - 12 mm aluminium matwell frame. UMFA18 - 18 mm aluminium matwell frame. UMFA25 - 25 mm aluminium matwell frame.
