EuroGuard® Combi Gates
Verified by manufacturer 5 months ago
ISO 9001 Quality Management
Certificate type

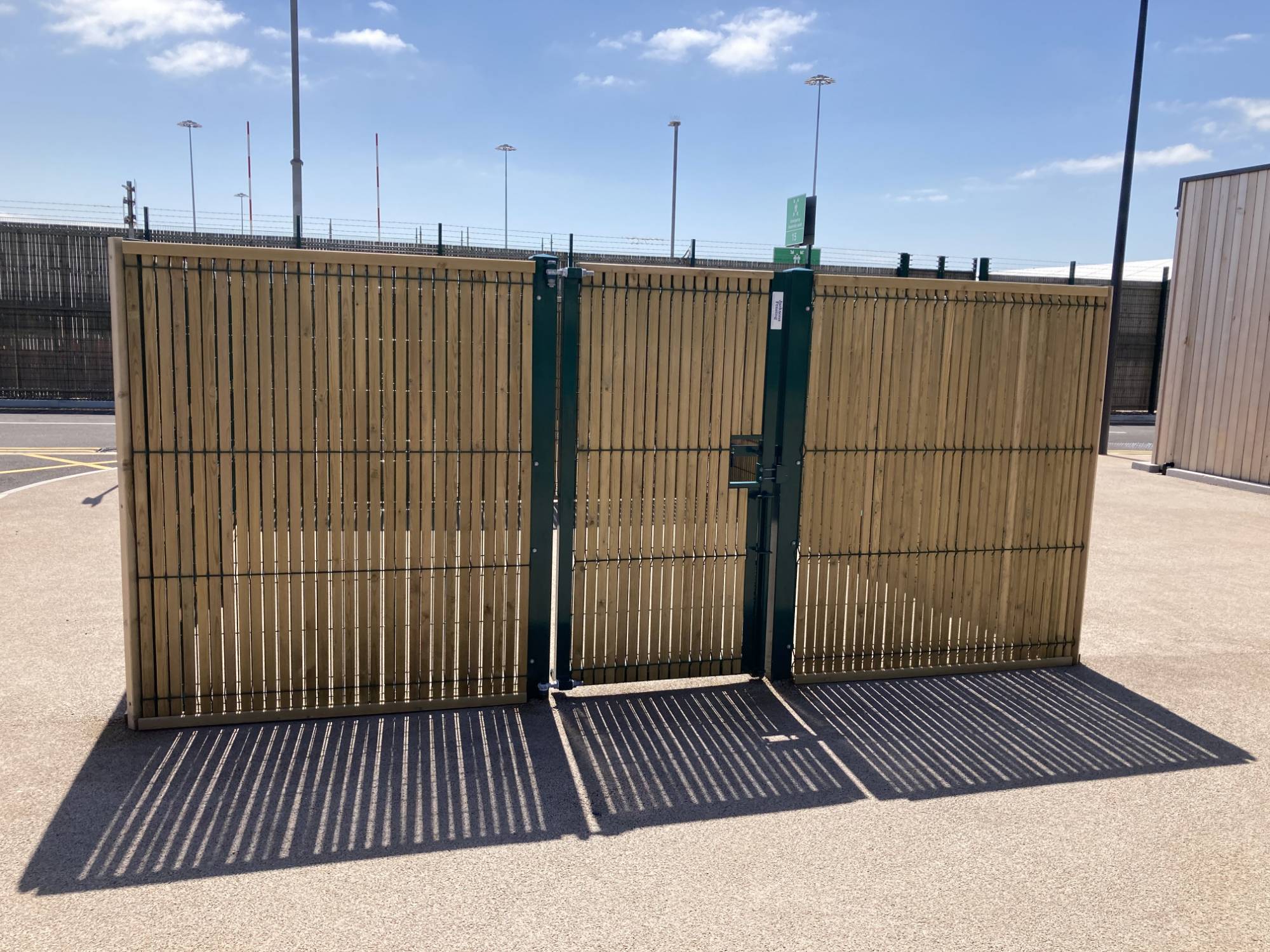

Steel mesh and timber combination security gates to match EuroGuard® Combi security fencing, available in swing, cantilever sliding and tracked in either automated or manual operation.
Application
For storage areas, schools, commercial properties, rural properties, sensitive sites and medium risk areas.
Description
Gates for use with EuroGuard® Combi security fencing, available in swing, cantilever sliding and tracked in either automated or manual operation.
Features and benefits:
- Increased concealment and security.
- Distinctive design combines the beauty of timber and strength of steel.
- Ideal for storage units, sensitive sites and school playgrounds and fields for increased concealment.
- Vandal proof mesh security clips on secure side of fence.
- Matching EuroGuard® Combi fencing available.
- Suitable for sensitive areas and storage compounds.
General information
Color | Black Green Other |
Finish | Galvanized Powder-coated Pre-treated |
Material | Steel Wood |
Width | Bespoke |
Height | 1585 mm 1870 mm 2070 mm 2470 mm 3170 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | Q50/20 Gate Q40/570 Gates |
Product range |
Specification data - Composite gates
Configuration | Cantilevered sliding.Swing.Tracked sliding.Single leaf.Double leaf. |
Dimensions | |
Span | Manufacturer guidanceUp to 10 000 mm wide; insert requirements. |
Height | Manufacturer guidanceUp to 3000 mm wide; insert requirements. |
Posts | Square section posts.Guidance for specification option: 100, 120, 150 or 250 mm, subject to size of gate. |
Gate leaves | Single leaf.Double leaf.Guidance for specification option: Drop bolts included. |
Hardware | |
Hinges | Tamper-proof. |
Securing | Key in lock, handles, stop. |
Operating | Automatic, rear mounted operator.Automatic, sliding gate operator.Automatic, underground operator.Manual. |
Finish as delivered | Pressure treated wood, galvanized steel.Pressure treated wood, powder-coated steel.Guidance for specification option: Zinc alloy coated and powder coated to BS EN 13438. Pressure treated wood, marine-coated steel.Guidance for specification option: For installation near sea water. |
Colours | Not applicable.Guidance for specification option: Galvanized or marine-coated steel only. Black RAL 9005.Green RAL 6005.Other, BS.Guidance for specification option: Special order, insert requirements. Other, RAL.Guidance for specification option: Special order, insert requirements. Manufacturer guidanceInsert requirements (powder-coated steel only; not applicable for galvanized finishes). |
Control | Card systems. Ground loops. Hard-wired audio intercom. Hard-wired video intercom. Key fob. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Guidance for specification option: South America, Europe. |
Country of product manufacture | United Kingdom |
Third party certifications
ISO 9001 Quality Management
ISO 9001:2015 Quality Management System
Literature
Welded Mesh Fencing
