EUX Electric Unit Heater
Verified by manufacturer 4 days ago
EUX5
EUX5
Electric unit heater.
Application
The EUX electric unit heater is designed for applications where there is no access to other heating sources such as gas, oil, or hot water. These include:
- Manufacturing facilities.
- Factories.
- Warehouses.
- Garages.
- Production facilities.
Description

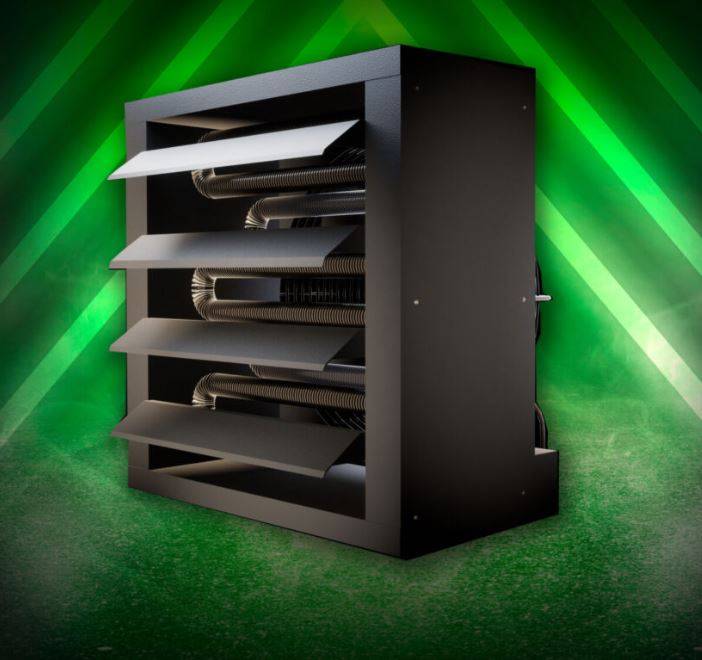

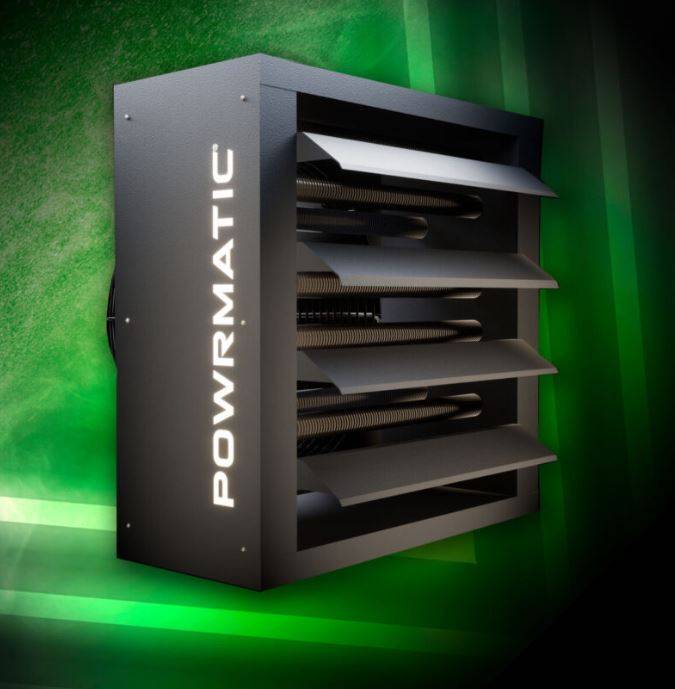

Powrmatic EUX electric unit heater for commercial and industrial buildings. This wall-mounted unit provides a high heating performance while offering energy-saving benefits. Constructed with high-quality stainless steel, the EUX electric unit heater ensures durability and longevity.
Features and benefits:
- Includes a EUX controller
- 5kW - 40kW
- Available in five sizes.
- Can be powered by renewable electricity, making it an environmentally-friendly choice.
- Wall mounted.
- Operates at 100% efficiency.
- Easy installation.
General information
Color | Grey |
Finish | Painted |
Material | Stainless steel |
Shape | Square |
Length | 375 mm 380 mm 395 mm 400 mm |
Width | 435 mm 565 mm |
Height | 335 mm 370 mm 430 mm 475 mm |
Warranty description | One year |
Uniclass | |
CAWS | T90/110 Heating system |
Specification data - Unit heaters
Unit type | Electric. |
Output | 5 kW (4.302 kcal/h). |
Air volume | 750 m³/h. |
Mounting | Wall-mounted. |
Sound power level | 44 dB(A). |
Electrical supply | 400 V, 3 ph, 50 Hz. |
Arrangement | Horizontal discharge. |
Casing finish | Painted. |
Connections | Screwed. |
Accessories | EUX controller. |
Brackets | E (crs) - 395 mm. Manufacturer guidanceBracket support. |
Current | 0.3 A. Manufacturer guidanceMotor current. |
Dimensions | 335 x 435 x 375 mm. Manufacturer guidanceH x W x D. |
Ingress protection | IP54. |
Power | 70 W. |
Voltage | 230 V. Manufacturer guidanceMotor voltage. |
Weight | 13.5 kg. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature

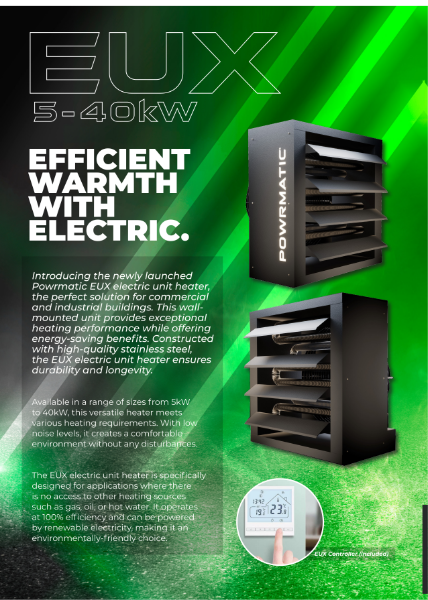

EUX Electric Unit Heater
