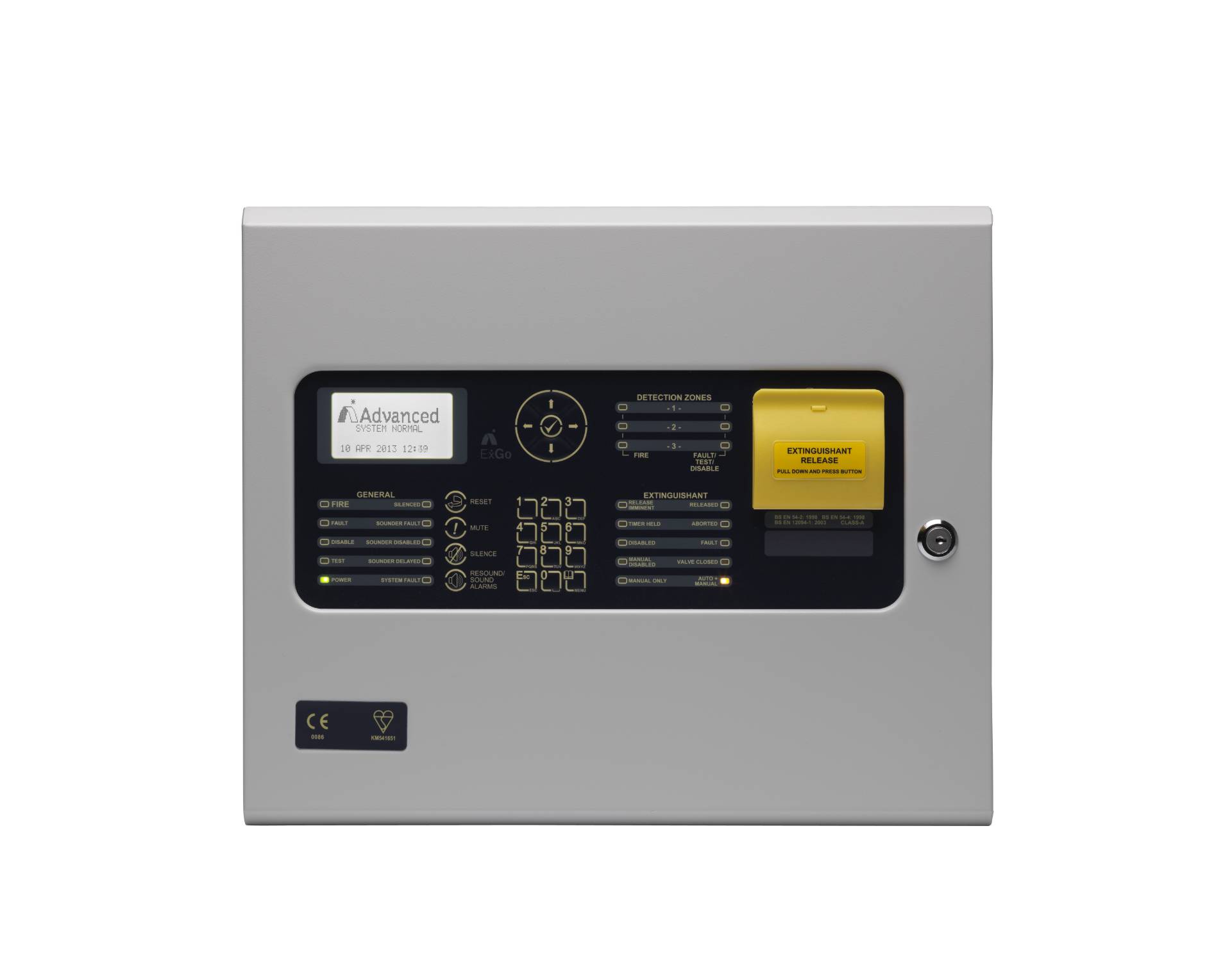

ExGo Three Zone Automatic Gas Extinguishing Panel

Verified by manufacturer 5 months ago

Advanced

Three zone automatic gas extinguishing panel with LCD display, to BS EN 12094 and EN54 standards.

Jump to:
BOS
+44 (0)345 894 7000 Website

Application

Suitable for workplace environments.

Description

The ExGo, three zone automatic extinguishing panel is approved to EN12094-1 (European Standard for Fixed Firefighting Systems - Components for Gas Extinguishing Systems) and EN54 - Parts 2 and 4.


The ExGo system detects a fire in the same manner as a fire alarm system, but in addition to sounding alarms, it also controls the release of an extinguishing agent.

The extinguishing agent can take many forms from CO2 through to specialist gases developed solely for extinguishing purposes. The agent is released into the atmosphere in the area where a fire has been detected, reducing the density of oxygen in the atmosphere around the fire, thus extinguishing the fire.


The ExGo system is used primarily in areas of significant value/ strategic importance to businesses e.g. computer suites, telecom switch-rooms etc, providing a cost-affective solution to protect your work place.


Features and benefits:

  • LCD display providing clearer status indication and programming routines.
  • Multiple languages.
  • Software for downloading configuration and event logs.
  • Passcode or optional key switch for Level 2 access.
  • Time and date-stamped event log and improved diagnostics.
  • Company logo can be displayed on LCD during normal conditions.
  • Large LCD/ digital countdown timer.
  • RS485 for remote status indicators (maximum of 7).
  • PC download via USB.

General information

Color

Grey

Guidance for specification option:

RAL 7035.

Finish

Powder-coated

Material

Steel

Shape

Square

Length

95 mm

Width

400 mm

Height

330 mm

Warranty description

Three year

Uniclass

Pr_75_50_33_33 Gas fire-extinguishing control panelsPrimary

CAWS

S92/420 Alarm devices

S92/420 Alarm devices

Specification data - Gas fire-extinguishing control panels

Accessories

LED indicators.

NominalFrequencyRange

50-60 Hz.

NumberOfPoles

8.

PowerFactor

0.

RatedCurrent

1 A.

RatedVoltage

200-240 V.

ExpectedLife

18 years.

Code_Performance

BS EN 12094, BS EN 54-2, BS EN 54-4.

Arrangement

Three zone.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

Manufacturing plant location

Recyclability

Metal enclosures, chassis plates, etc. are made of recyclable metal. Product life can be extended by flashing updated software. Paper packing used to protect products is recyclable. Manuals and datasheets are currently paper and recyclable.
