Expansion Joint Covers

Verified by manufacturer over a year ago

JC881025

Gradus Variant:

Expansion joint covers, cover expansion joints between two floors 25 & 50 mm

Jump to:
+44 (0)1625 428922 Website

Application

For interior retrofit and surface mounted installations on floor-to-floor applications.

Description

Expansion joint covers, designed to cover expansion joints between two floors for 25 and 50 mm widths.


Features and benefits:

  • Will provide 30% total movement (horizontal).
  • Withstands loads of up to 250 k.g.
  • Features bevelled edges and a serrated finish to provide slip-resistance for pedestrian safety.
  • Prevents dirt and debris from falling between the floor coverings.
  • Creates a safe transition for pedestrian and wheeled traffic over differing levelled surfaces.

General information

Color

Silver

Finish

Mill

Material

Aluminium

Shape

Rectangle

Length

3000 mm

Guidance for specification option:

JC881025.

Manufacturer guidance

(Frame length).

Width

128 mm

Guidance for specification option:

JC881025.

Manufacturer guidance

(Frame width).

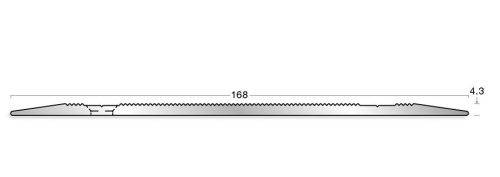

Height

4.3 mm

Guidance for specification option:

JC881025.

Manufacturer guidance

(Frame height).

Uniclass

Pr_35_90_31_28 Floor construction joint trimsPrimary

CAWS

M10/476 Metal section movement joints

M13/395 Metal section movement joints

M40/835 Metal section movement joints

M50/70 Edgings and cover strips

M50/740 Edgings and cover strips

M51/510 Edgings and cover strips

Specification data - Floor construction joint trims

Material

Aluminium.

Finish

Mill.

Width

128 mm.

Fixing

8 mm concrete sleeved anchor bolt.

Guidance for specification option:

Comes pre-drilled with countersunk holes.
